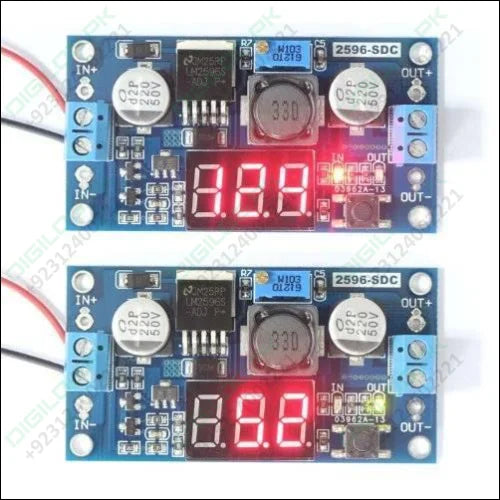

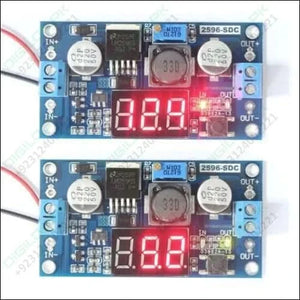

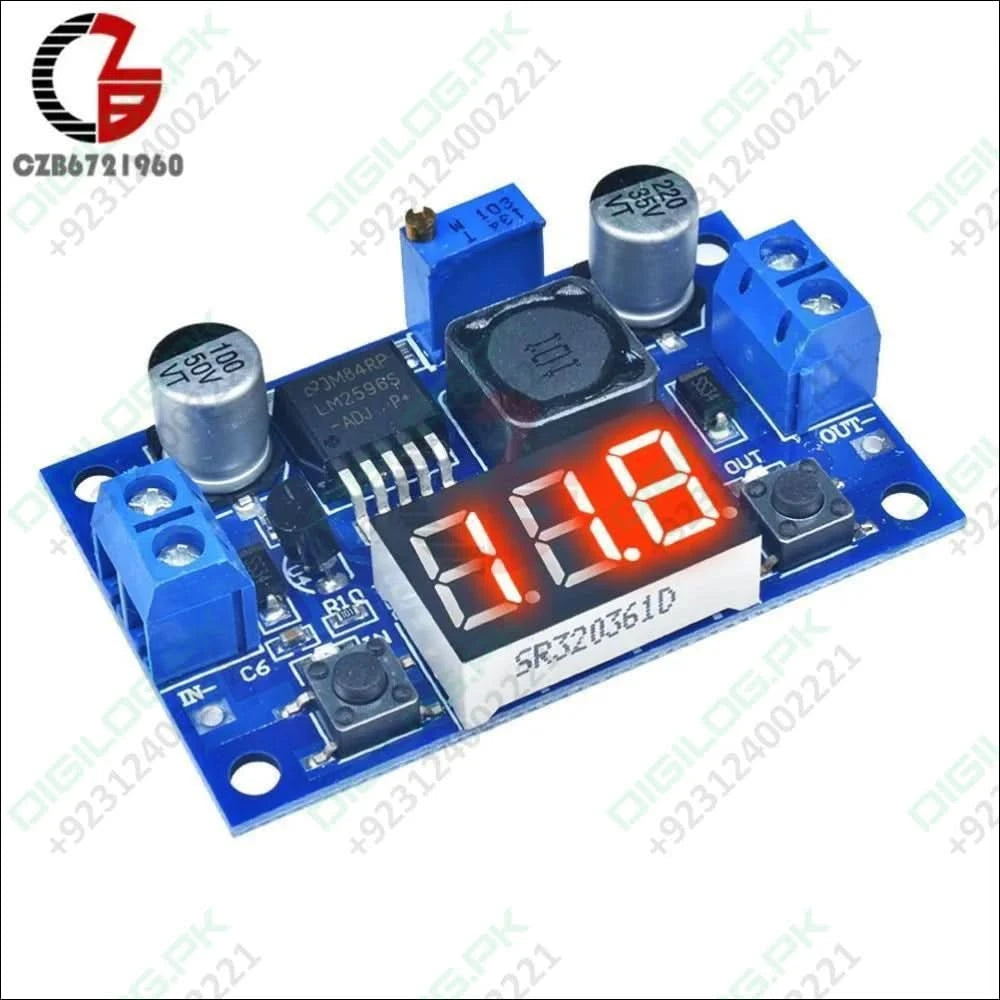

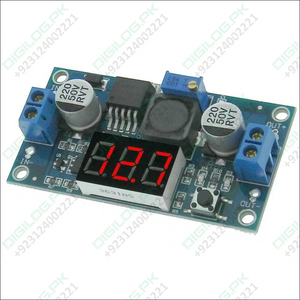

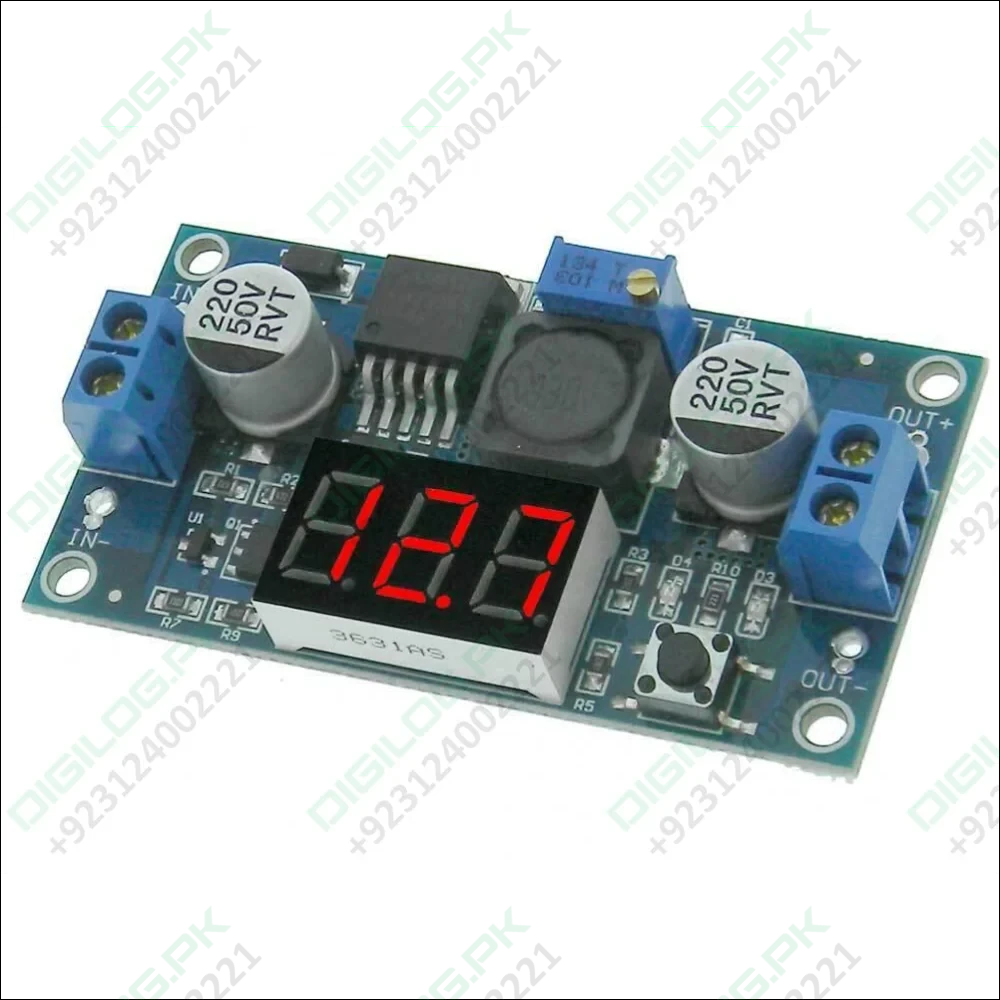

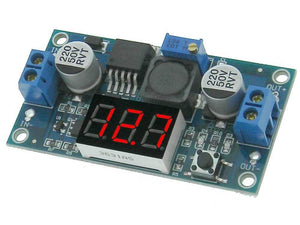

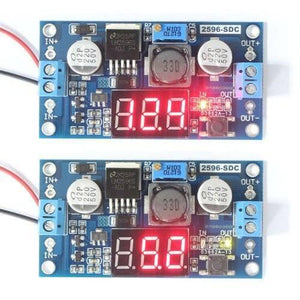

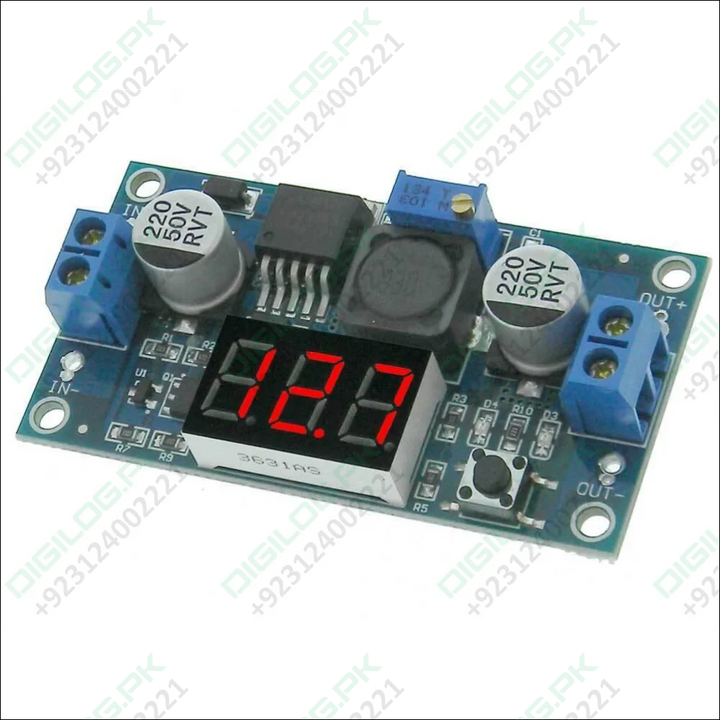

LM2596 2A Buck Step-down Power Converter Module DC 4.0~40 To 1.3-37V LED Voltmeter
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LM2596 adjustable DC-DC buck converter |
| Converter Type | Step-down voltage regulator |
| Input Voltage | 4–40V DC |
| Adjustable Output Voltage | 1.3–37V DC; output must be lower than input |
| Output Current | Up to 2A, depending on voltage difference, temperature and cooling |
| Voltage Adjustment | Multi-turn potentiometer for precise adjustment |
| Display | Built-in digital LED voltmeter |
| Voltage Monitoring | Selectable input or output voltage display |
| Indicators | “IN” and “OUT” LEDs identify the displayed voltage |
| Calibration | Input and output voltmeter readings can be calibrated using the onboard buttons |
| Memory Function | Retains the last selected voltage display mode after power-off |
| Connections | Screw terminals and solder connection points |
| Package Includes | 1 × LM2596 2A step-down converter module with LED voltmeter |
Operating Note: This module reduces DC voltage only. Adjust and verify the output voltage before connecting your device. Additional cooling may be required at higher loads.
Output voltage calibration steps:
Step 1: Adjust the right button so that “OUT” LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode.
Step 2: Press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.
Step 3: Press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.
Input voltage calibration steps:
Step 1: Adjust the right button so that “IN” LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode.
Steps 2 and 3, consistent with the output voltage calibration method.
Notes: Maximum current is dependent on input and output voltages, ambient temperature and cooling. To achieve maximum ratings an external heatsink may be required. Maximum LM2596 operating temperature must not exceed 125°C otherwise permanent thermal damage can occur.
Features :
- Input reverse polarity protection
- Built-in output short protection function
- The built-in thermal shutdown function
- Press the right key to let the display show the input or output voltage. when the right “OUT” led light, it shows output, the left “IN” led show input.
- Power-off memory function, show that road after power voltage values measured for the last time
- Press the touch button for 3 seconds to turn off the LED display, touch the button again to turn on the LED display
- The band terminals, no iron can also be easy to use, and retention wire connection point
Package Includes :
1 x LM2596 2A Buck Step-down Power Converter Module.
