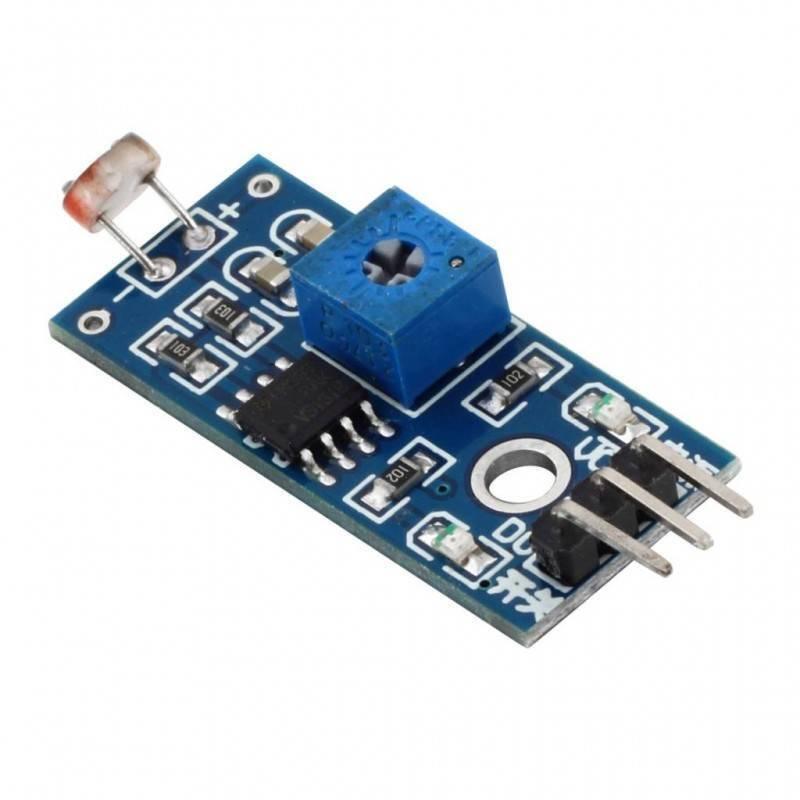

Ky-018 LDR Light Sensor Module - a blue potentiometer, a small photoresistor, and a four-pin header on a blue rectangular circuit board.
Ky-018 LDR Light Sensor Module - a blue PCB with a photoresistor, a blue potentiometer, an integrated circuit, and a three-pin header connector.

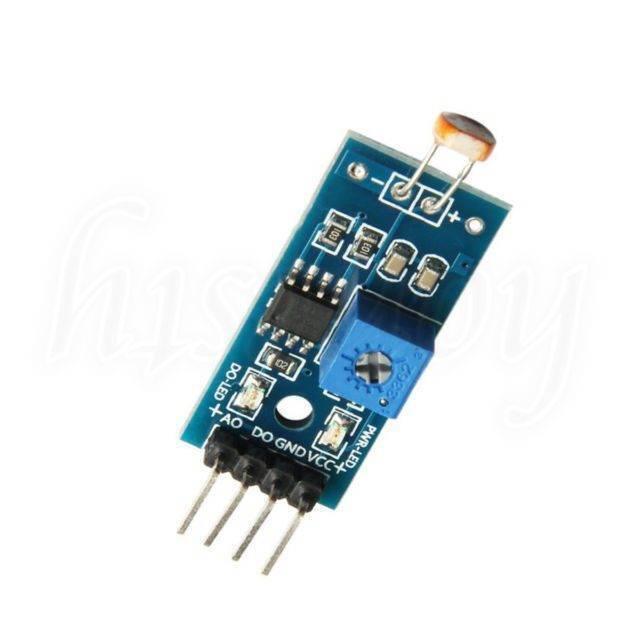

Ky-018 LDR Light Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, and four output pins labeled AO, DO, GND, VCC.

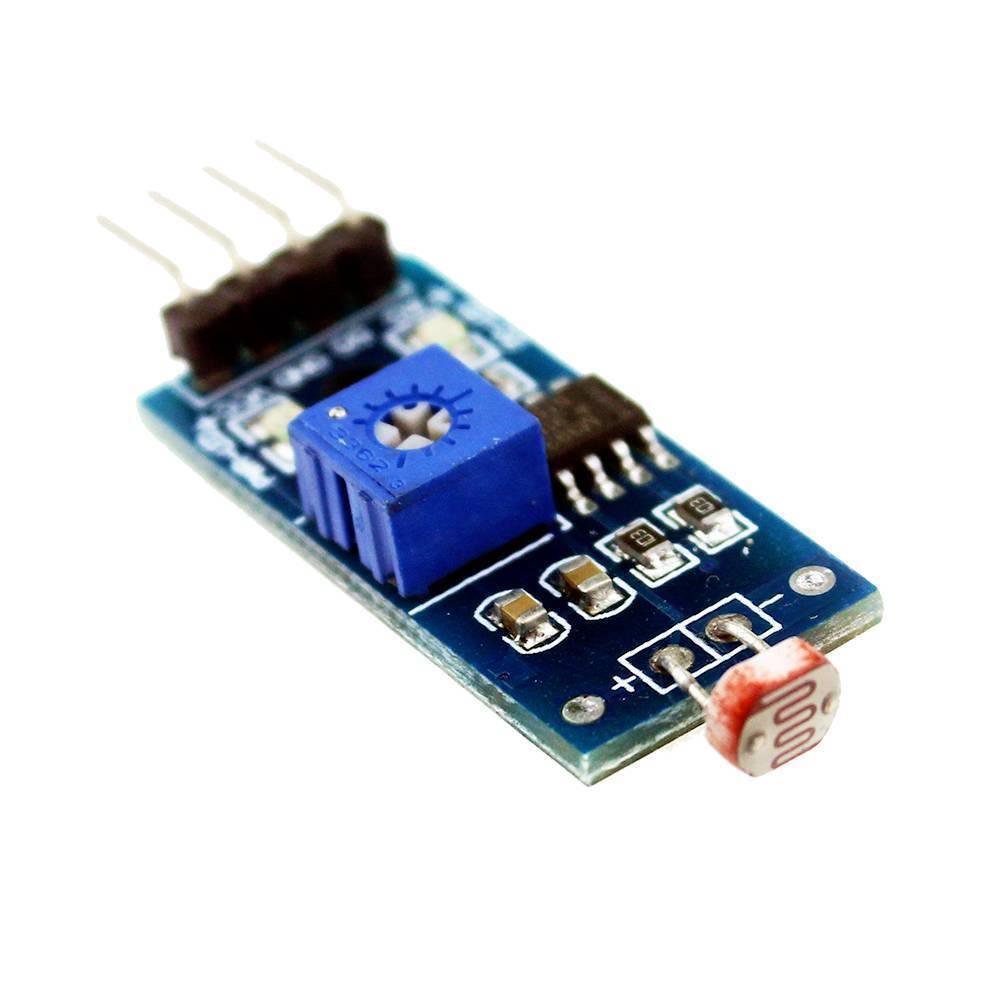

Ky-018 LDR Light Sensor Module - a blue circuit board with a white-topped potentiometer, a light-dependent resistor, and a four-pin header.
Ky-018 LDR Light Sensor Module - a blue potentiometer, a small photoresistor, and a four-pin header on a blue rectangular circuit board.
Ky-018 LDR Light Sensor Module - a blue PCB with a photoresistor, a blue potentiometer, an integrated circuit, and a three-pin header connector.
Ky-018 LDR Light Sensor Module - a blue circuit board with a light-dependent resistor, a potentiometer, and four output pins labeled AO, DO, GND, VCC.
Ky-018 LDR Light Sensor Module - a blue circuit board with a white-topped potentiometer, a light-dependent resistor, and a four-pin header.

Ky-018 LDR Light Sensor Module

Sale price Rs 160
SKU: B16,xkrt214
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

Ky-018 LDR Light Sensor Module - a blue potentiometer, a small photoresistor, and a four-pin header on a blue rectangular circuit board.
+
70mm Flat Head Screwdriver Thin Flat Blade Tip Edge - a cluster of small handheld tools with thin metal flat-blade tips and transparent blue plastic handles.
+
DHT11 Temperature And Humidity Sensor Module Ky-015 - a blue sensor component mounted on a black circuit board with three metal connector pins.
+

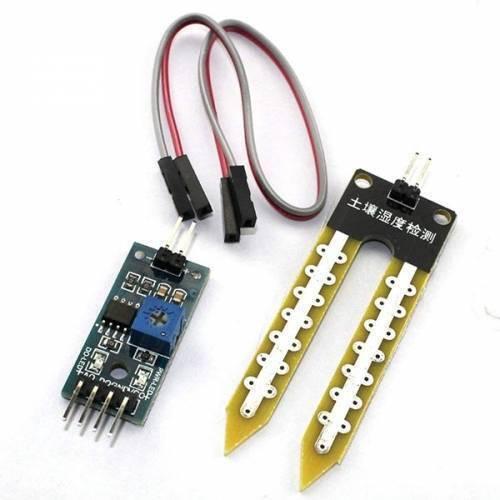

Soil Moisture Sensor For Arduino - a blue circuit board with a potentiometer connected by a red and black cable to a Y-shaped probe.
Soil Moisture Sensor For Arduino - a blue circuit board with a potentiometer connected by a red and black cable to a Y-shaped probe.
This item: Ky-018 LDR Light Sensor Module -
Sale price Rs 160
70mm Flat Head Screwdriver Thin Flat Blade Tip Edge - a cluster of small handheld tools with thin metal flat-blade tips and transparent blue plastic handles.
70mm Flat Head Screwdriver Thin Flat Blade Tip Edge -
Sale price Rs 60
DHT11 Temperature And Humidity Sensor Module Ky-015 - a blue sensor component mounted on a black circuit board with three metal connector pins.
DHT11 Temperature And Humidity Sensor Module Ky-015 -
Sale price Rs 260
Soil Moisture Sensor For Arduino - a blue circuit board with a potentiometer connected by a red and black cable to a Y-shaped probe.
Soil Moisture Sensor For Arduino -
Sale price Rs 130
Price for all:
Sale total price Rs 610

Pickup available at Digilog Electronics

Usually ready in 2 hours

Ky-018 LDR Light Sensor Module - a blue potentiometer, a small photoresistor, and a four-pin header on a blue rectangular circuit board.

Ky-018 LDR Light Sensor Module

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Ky-018 LDR Light Sensor Module - a blue potentiometer, a small photoresistor, and a four-pin header on a blue rectangular circuit board.
Ky-018 LDR Light Sensor Module
Sale priceRs 160

This LM393 Photosensitive Light-Dependent Control Sensor Module has a high quality using a voltage LM393 comparator with a mounting screw hole. Easy to install using the sensitive type photosensitive resistance sensor the comparator output signal clean waveform is good. Driving ability than 15ma with adjustable potentiometer can adjust the brightness of the light detected. Working voltage is 3. 3V to 5v. Where output is digital switch output. Since this module is sensitive to the light, usually used for detecting the ambient brightness and light intensity.

When there is no light or the light intensity cannot reach the value, DO output is high level. When light intensity over than the value, the module DO output is low level. The module digital output DO can be directly connected to the microcontroller, use microcontroller detects high or low level, so that can detect the environmental light intensity change.

You can use this board digital output DO port drive relay module directly(our store on sale these relay modules), and can also use as a photoelectric switch. The analog output ao connects with an ad module and it can get more precise light intensity value through the ad-converter.

Interface Pin :

  1. VCC: +ve power supply.
  2. GND: Ground.
  3. D0: Digital output signal.
  4. A0: Analog Output Signal.

Strong light, LED light, output low level;
Weak light, LED off, output high level;
Sensitivity is adjustable.

Specifications and Features :

  1. Dimensions: 33 x 115 x 8(L x W x H ) mm.
  2. Weight: 4gm.
  3. main chip: LM393.
  4. working voltage: DC 3-5V
  5. Signal output indicator light.
  6. LDR module 4 PIN
  7. Operating voltage 3.3V-5V
  8. Able to detect ambient brightness and light intensity Adjustable sensitivity (via blue digital potentiometer adjustment)
  9. Output: DO digital switch output (0 and 1), AO analog voltage output Compatible with Arduino, Raspberry and other microcontroller board.

Package Includes :

1 x LDR light sensor module
