Description

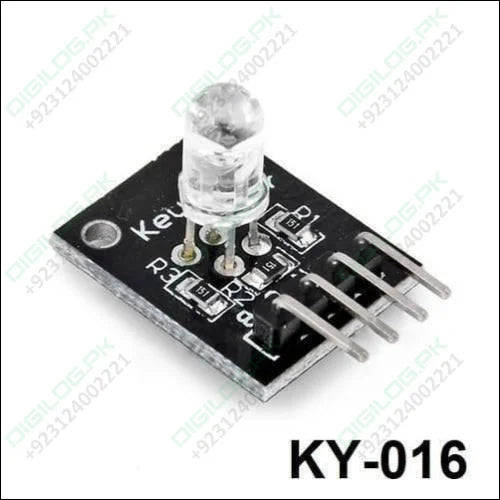

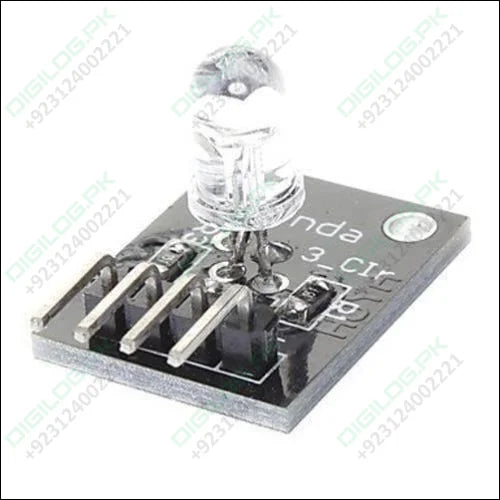

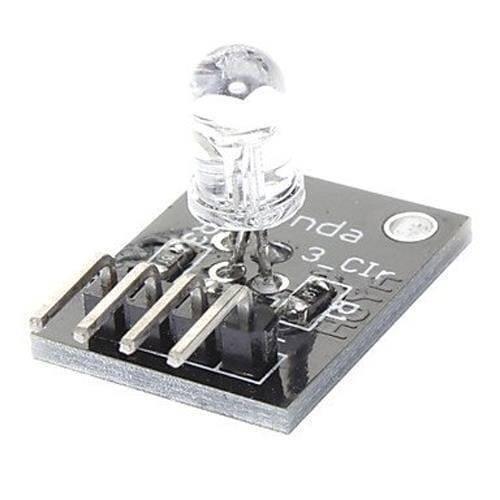

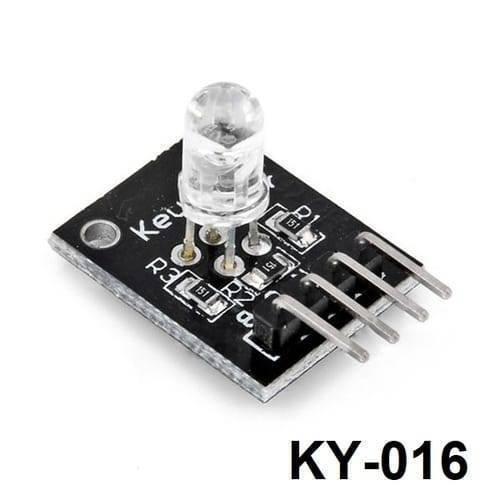

This module consists of a 5mm RGB LED and threeĀ 150Ī© limiting resistorsĀ to prevent burnout. Adjusting the PWM signal on each colour pin will result in different colours.
This isĀ a DIP 3 Color LED Module.Ā Through the PWM adjusting, three primary colours can be mixed to obtain different colours.
Ā
Features And Specifications
- Use plug-in full-color LED
- RGB tricolor limiting resistor to prevent burn
- Three primary colors can be mixed to get different colors by adjusting the PWM
- Can interface with a variety of microcontrollers
- Operating voltage: 5V
- LED drive mode: common cathode drive
Connection Diagram:
Ā
Ā

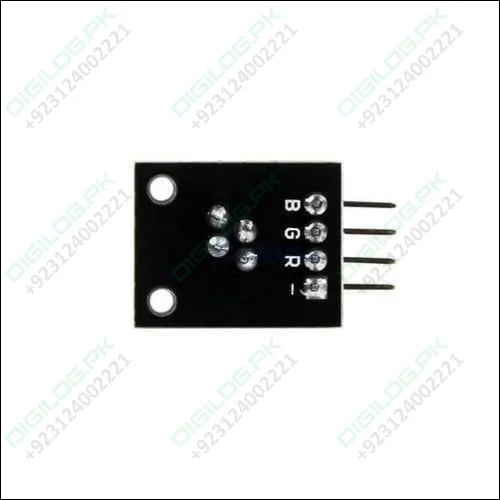

LED module | Arduino |
R | PinĀ 11 |
B | Pin 10 |
G | Pin 9 |
ā | GND |
Ā
Package included:
- 1Ā x 3 Color RGB LED Module Sensor for Arduino UNO
