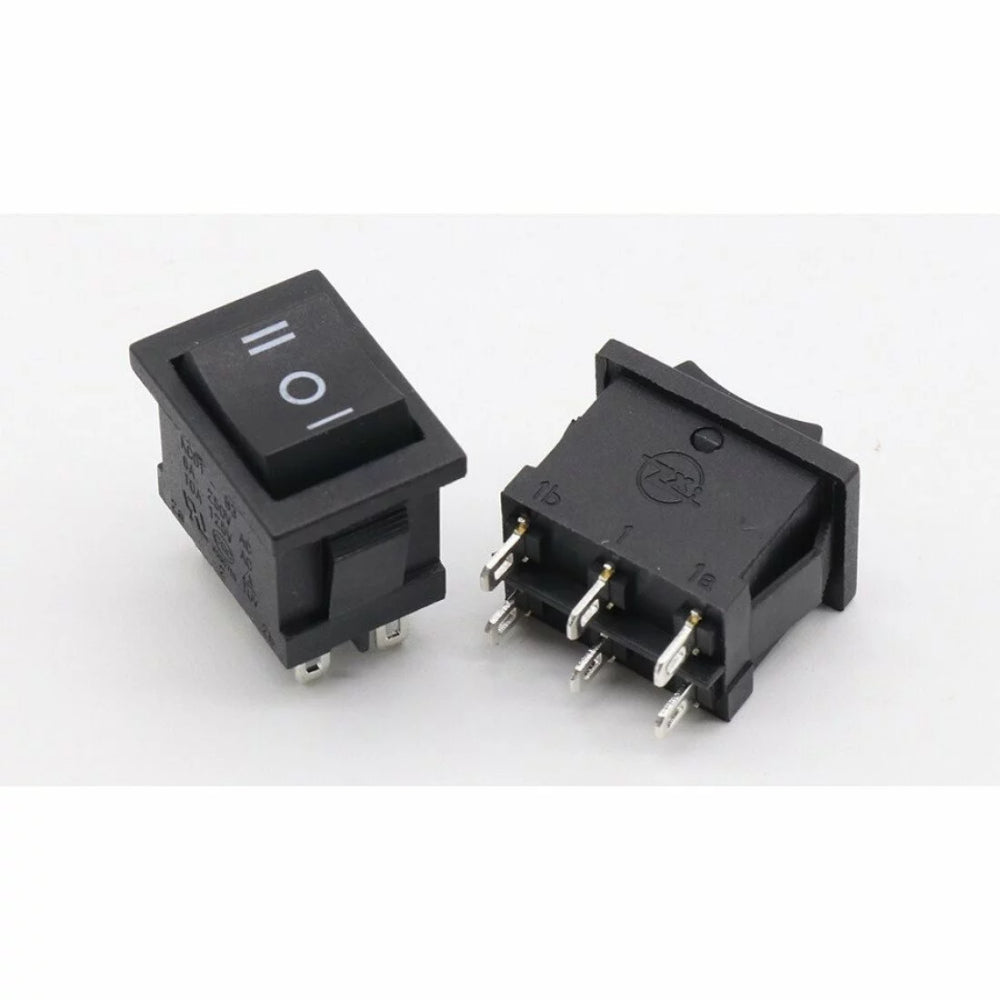

6-Terminal ON/OFF/ON Rocker Switch (KCD2-203) – DPDT 6A/250VAC Boat Type
The KCD2-203 Rocker Switch is a high-quality, durable 6-terminal switch with a 3-position ON/OFF/ON configuration, ideal for controlling dual-speed motors, forward/reverse operations, or other multi-mode functions. This DPDT (Double Pole Double Throw) switch is commonly used in boat electronics, machinery, appliances, and automotive applications. It features a snap-in mount and a clear I / O / II marking for easy operation.
Key Features
- Type: DPDT – Double Pole Double Throw
- Function: 3-position ON/OFF/ON

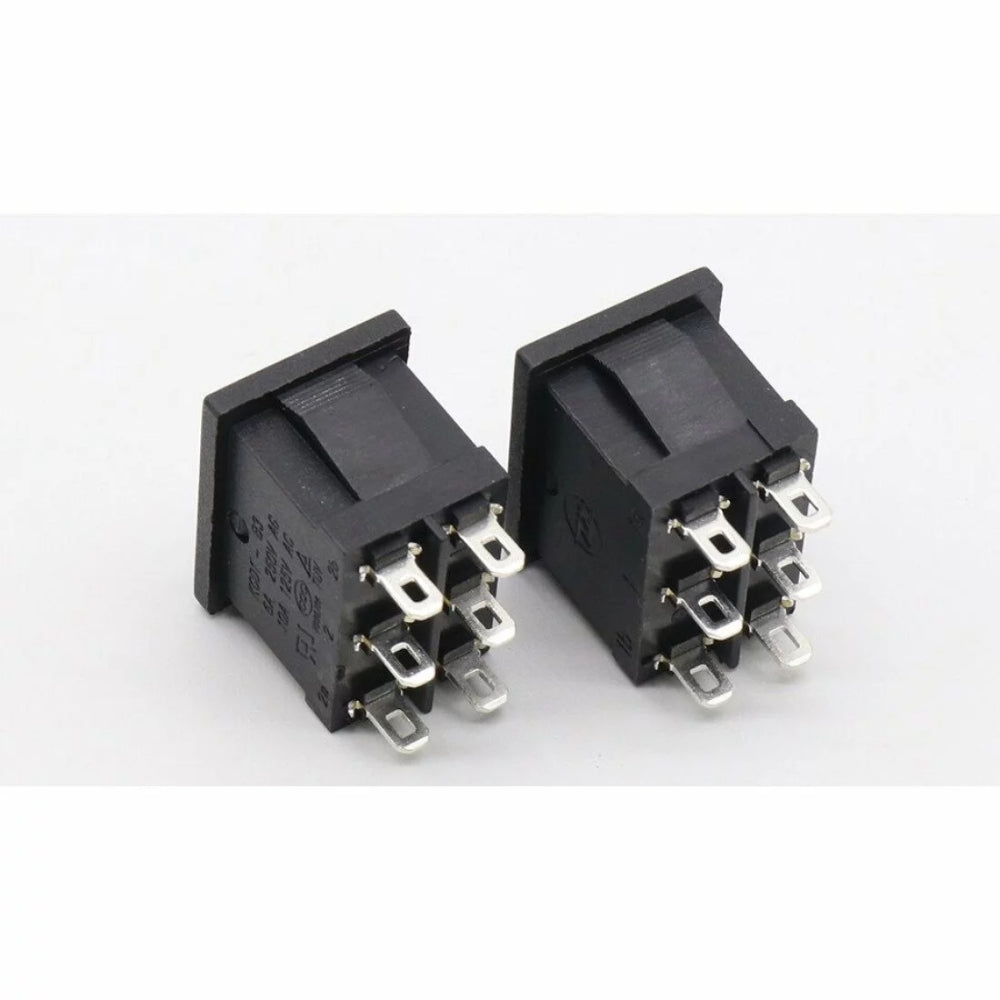

- Terminals: 6-pin configuration
- Voltage Rating: 250V AC at 6A, 125V AC at 10A
- Material: High-quality plastic and metal components
- Color: Grey

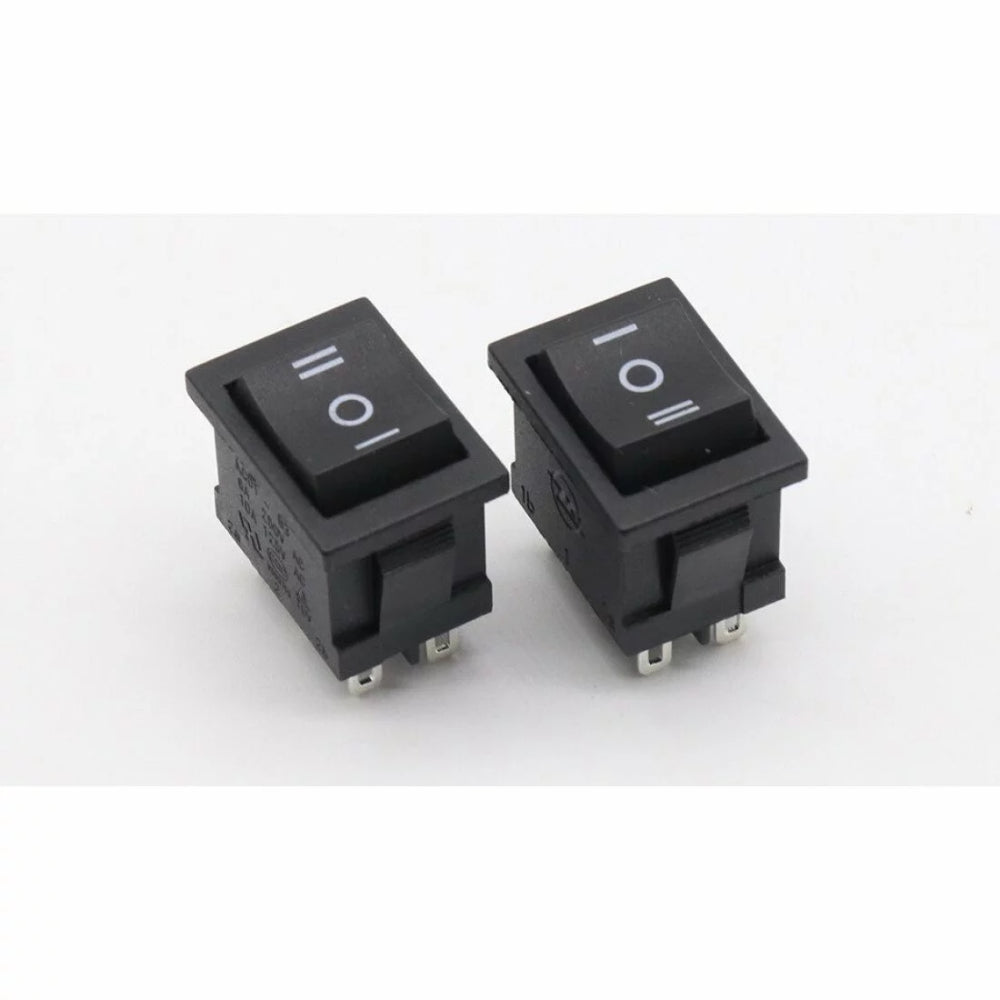

- Markings: I / O / II on rocker for precise indication
Dimensions
- Overall Size: 21 x 15 x 25 mm (L x W x T)
- Mounting Hole Size: 18 x 13 x 20 mm (L x W x T)
Applications
- Boats and marine electronics
- DIY electrical projects
- Industrial machinery control
- Electric scooters and vehicle dashboards
- AC power management systems
FAQs
Q: Can this switch be used for reversing motor polarity?
Yes, the DPDT configuration is ideal for reversing DC motor polarity or toggling between two power sources.
Q: Is this switch waterproof?
No, this model is not waterproof. It is intended for indoor or protected enclosures unless sealed.
Q: How do I wire the 6 terminals?
Each pair of terminals corresponds to a pole. You can wire two inputs and two outputs to switch between two circuits.
Package Includes
- 1 x KCD2-203 Rocker Switch
