Description

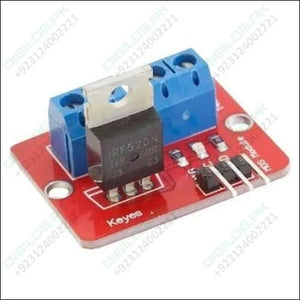

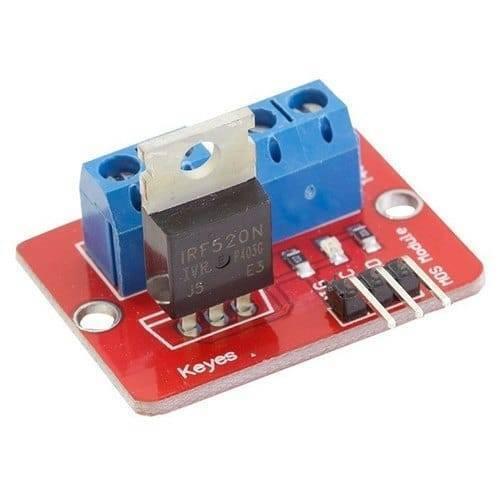

IRF520 MOSFET Driver Module is a breakout board for the IFR520 MOSFET transistor. The module is designed to switch heavy DC loads from a single digital pin of your microcontroller. Here is a simple breakout board for the IRF520 Mosfet. Easy hookup to your Arduino or another 3-5v microcontroller. Pulse current through a PWM pin, and use this to control a pump, LED, or other DC device at up to 24v, and ~5A. Mos Module IRF520's main purpose is to provide a low-cost way to drive a DC motor for robotics applications, but the module can be used to control most high current DC loads. Screw terminals are provided to interface with your load an external power source. An LED indicator provides a visual indication of when your load is being switched.

Features Of IRF520 Arduino Mosfet Driver Module:

  • TOP MOSFET Button IRF520 MOSFET Driver Module for Arduino ARM Raspberry pi
  • The original IRF520 power MOS tube can be adjusted PWM output
  • Can drive up to 24V of the load, such as LED lights, DC motors, micro pumps, solenoid valves
  • Used PWM can be adjusted LED step-less dimming, step-less speed regulation motor

Specifications Of Arduino/Raspberry Pi MOSFET Smart Electronics Modules IRF520:

  1. Voltage: 3.3V, 5V

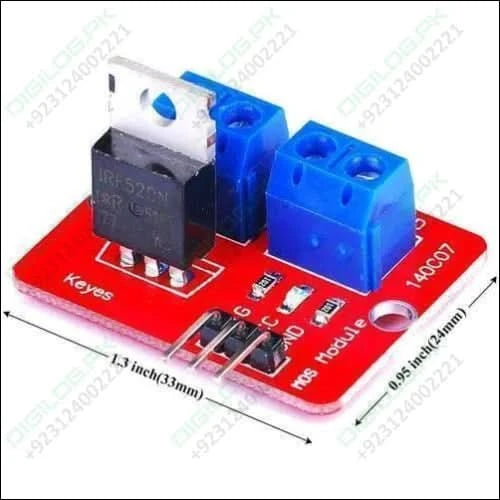

  2. Size :about 33*24mm
  3. Output load current: <5A (1A above need to add heat sink)
  4. Output load voltage: 0-24V
  5. Port: Digital level
  6. Platform: Arduino, MCU, ARM, raspberry pi
  7. Weight :about 10g

Package Include:

  • 1x irf520 Driver Module For Arduino

Best Online Shopping Website For IRF520 MOSFET Driver Module For Arduino  IRF520 Power MOS PWM in a cheap price in Lahore Islamabad Karachi Sukkur Quetta Multan Peshawar Rawalpindi Gujranwala and all over Pakistan



Interfacing IRF520 MOSFET Driver Module (HCMODU0083) with ArduinoIrf520 Mosfet Driver Module For Arduino
