Ir Infrared Obstacle Avoidance Sensor Module

Ir Infrared Obstacle Avoidance Sensor Module

Regular price Rs 110
Regular price Sale price Rs 110
Sale Sold out
Shipping calculated at checkout.

SKU:B143,krt35,IMP1000,TH500,SA

NOTIFY ME WHEN IN STOCK

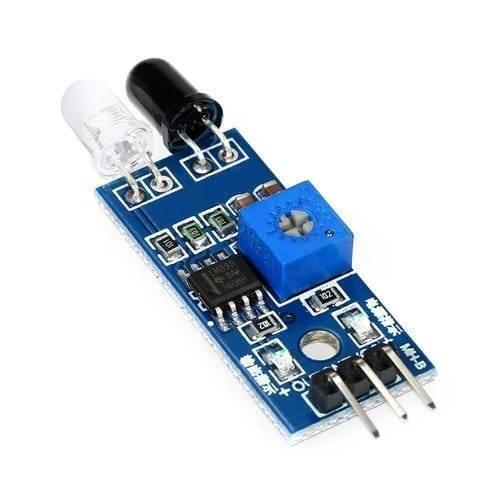

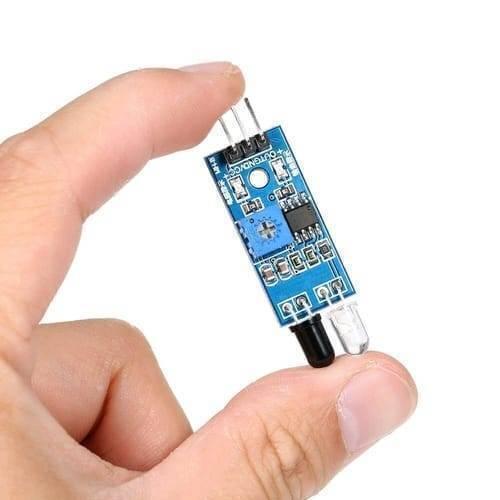

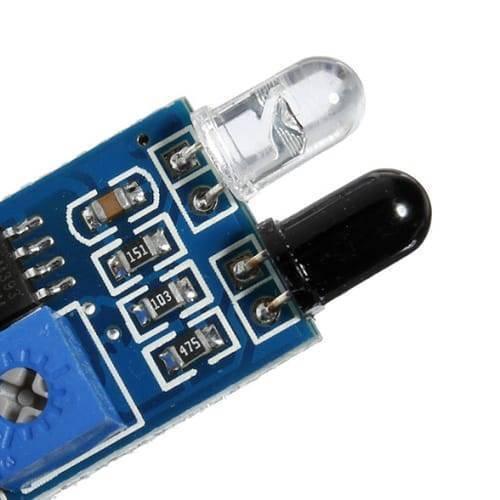

The Obstacle Detector sensor module is perfectly adaptable to the environment light, IR Object Avoidance Sensor has a pair of infrared transmitting and receiving tubes; transmitting tube emits infrared in a certain frequency, when detecting direction meets with obstacles(reflecting surface), reflected infrared will be received by the receiving tube; after the comparator circuit processing, the green indicator will light up, at the same time signal output interface to output digital signal(1 low-level signal). Users can adjust the detection distance through the potentiometer knob, effective distance range 2~30cm and working voltage is 3.3V to 5V. The Obstacle Avoidance module LM393 can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, black and white line tracking, and so on many occasions.

IR Infrared Obstacle Avoidance Sensor Module



Features Of IR Object Detector Sensor Module:

  • Easy to assemble and use
  • Onboard detection indication
  • The effective distance range of 2cm to 20cm
  • A preset knob to fine-tune distance range
  • There is an obstacle, the green indicator light on the circuit board.

Specifications Of Infrared object avoidance sensor:

  1. Main Chip: LM393
  2. Detection Distance: 2~30cm
  3. Detection Angle: 35 °
  4. Working Voltage: 3.3V~5V

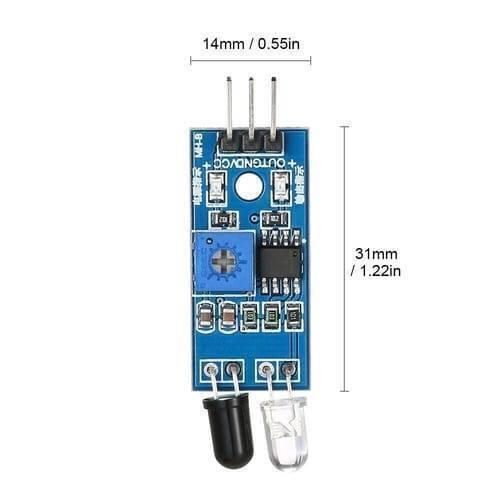

  5. Board Size: 31 * 14mm / 1.22 * 0.55in
  6. Board Weight(1pc): 3g

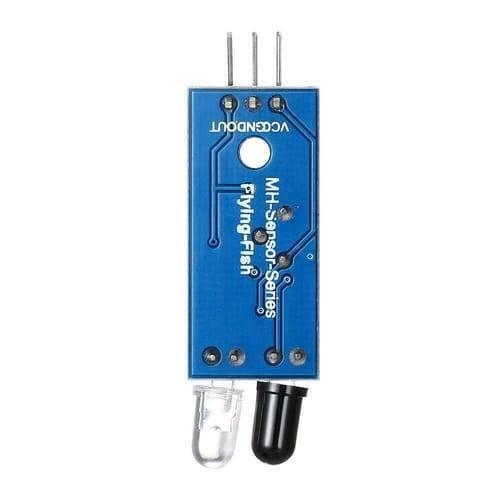

Pins Description:

  • 1. VCC: 3.3V-5V external voltage (can be directly connected to 5v and 3.3v MCU MCU)
  • 2. GND: GND External
  • 3. OUT: small board digital output interface (0 and 1)

Package Includes:

  • 1 x IR Infrared Obstacle Avoidance Sensor Module

Best Online shopping website for IR Infrared Obstacle Avoidance Object detector Sensor Module in cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Rawalpindi Gujranwala and all over Pakistan



IMG_9690IMG_9694IMG_9701IMG_9703



View full details

Description

The Obstacle Detector sensor module is perfectly adaptable to the environment light, IR Object Avoidance Sensor has a pair of infrared transmitting and receiving tubes; transmitting tube emits infrared in a certain frequency, when detecting direction meets with obstacles(reflecting surface), reflected infrared will be received by the receiving tube; after the comparator circuit processing, the green indicator will light up, at the same time signal output interface to output digital signal(1 low-level signal). Users can adjust the detection distance through the potentiometer knob, effective distance range 2~30cm and working voltage is 3.3V to 5V. The Obstacle Avoidance module LM393 can be widely used in robot obstacle avoidance, obstacle avoidance car, line count, black and white line tracking, and so on many occasions.

IR Infrared Obstacle Avoidance Sensor Module



Features Of IR Object Detector Sensor Module:

  • Easy to assemble and use
  • Onboard detection indication
  • The effective distance range of 2cm to 20cm
  • A preset knob to fine-tune distance range
  • There is an obstacle, the green indicator light on the circuit board.

Specifications Of Infrared object avoidance sensor:

  1. Main Chip: LM393
  2. Detection Distance: 2~30cm
  3. Detection Angle: 35 °
  4. Working Voltage: 3.3V~5V
  5. Board Size: 31 * 14mm / 1.22 * 0.55in
  6. Board Weight(1pc): 3g

Pins Description:

  • 1. VCC: 3.3V-5V external voltage (can be directly connected to 5v and 3.3v MCU MCU)
  • 2. GND: GND External
  • 3. OUT: small board digital output interface (0 and 1)

Package Includes:

  • 1 x IR Infrared Obstacle Avoidance Sensor Module

Best Online shopping website for IR Infrared Obstacle Avoidance Object detector Sensor Module in cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Rawalpindi Gujranwala and all over Pakistan



IMG_9690IMG_9694IMG_9701IMG_9703
