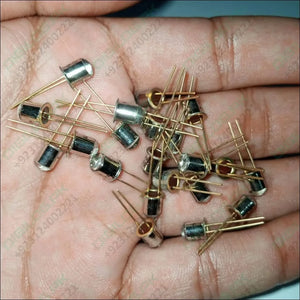

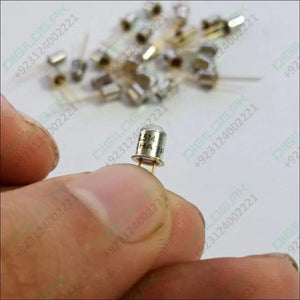

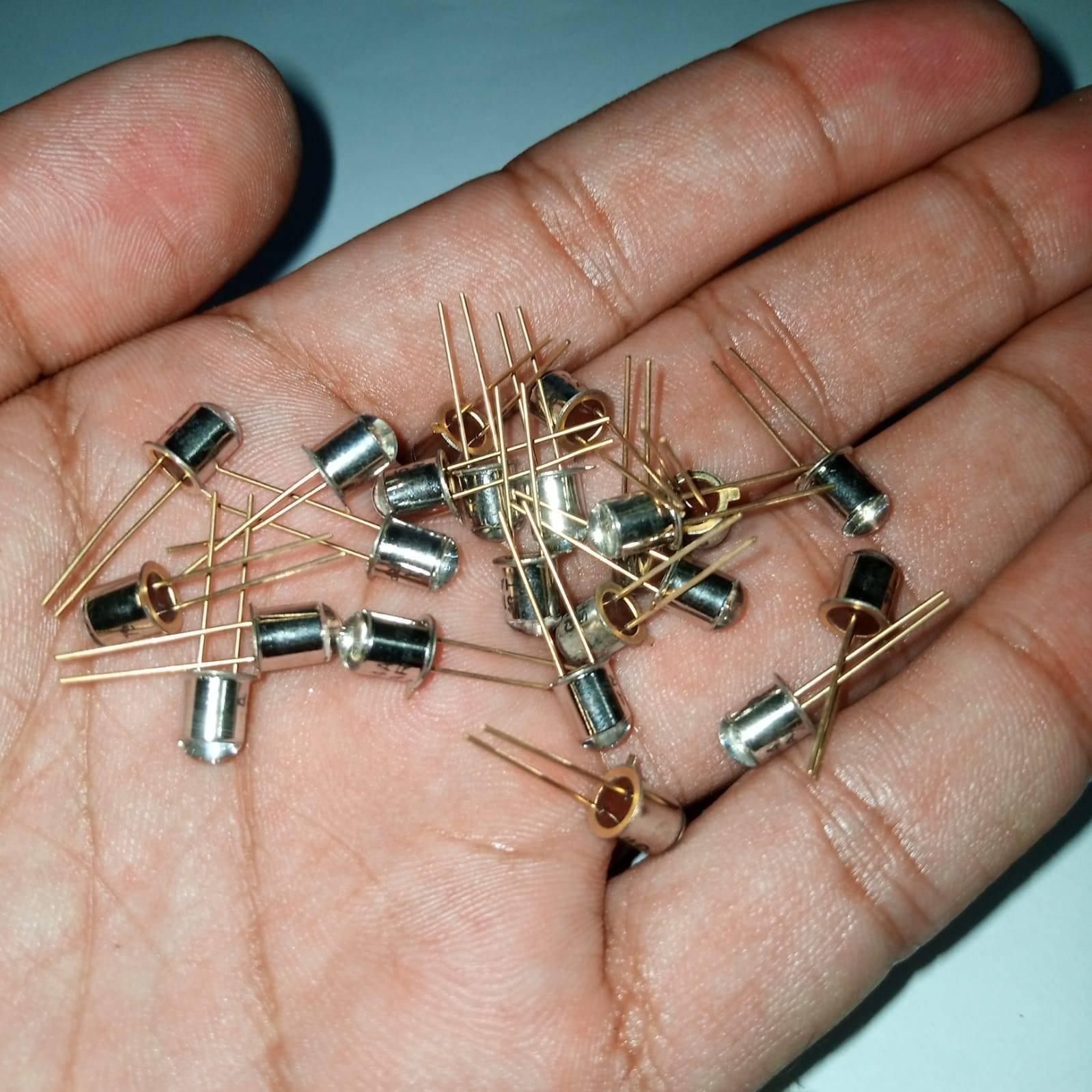

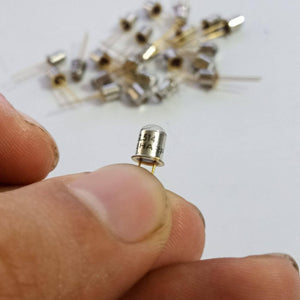

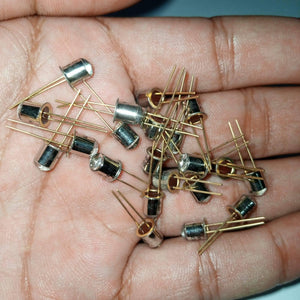

Sharp Infrared Emitting Led Diode Gl514a In Pakistan

Sharp Infrared Emitting Led Diode Gl514a In Pakistan

Regular price Rs 350
Regular price Sale price Rs 350
Sale Sold out
Shipping calculated at checkout.

SKU:B147,DELL

NOTIFY ME WHEN IN STOCK

 An IR LED (infrared light-emitting diode) is a solid-state lighting (SSL) device. This diode IR emits light in the infrared range of the electromagnetic radiation spectrum IR LEDs allows for cheap, efficient production of infrared light, which is electromagnetic radiation in the 700 nm to 1mm range. IR LEDs are used in a number of types of electronics, including many types of remote controls for televisions and other electronics. Used with infrared cameras, IR lights can act as a spotlight while remaining invisible to the naked eye. Because IR led diode can be used in conjunction with a number of different types of sensors, they are becoming common in machine-to-machine (M2M) environments and the Internet of Things (IoT) applications.

Best Online Shopping website for Infrared Emitting LED Diode GL514A Best IR LED Diode in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

Features Of Infrared Light-Emitting Diode GL514A:

  • IR LEDs allow for cheap, efficient production of infrared light.
  • Widely used in a number of types of electronics, including many types of remote controls for televisions and other electronics.
  • Used in conjunction with the different types of sensors.

Specifications Of IR TO-18 Type Infrared Emitting Diode GL514A:

  1. Type: TO-18
  2. Mount: Through Hole
  3. Number of Pins: 2
  4. Forward Current: 150 mA
  5. Forward Voltage: 1.6 V
  6. Lens Style: Circular
  7. Max Operating Temperature: 125 °C
  8. Min Operating Temperature: -40 °C
  9. Number of Elements: 1
  10. Orientation: Top View
  11. Power Dissipation: 250 mW
  12. Power Rating: 250 mW
  13. Test Current: 100 mA
  14. Viewing Angle: 14 °
  15. Wavelength: 950 nm
  16. Dimensions: 5.7mmx5.7 mm

Package Includes:

  • 1 x Infrared Emitting LED Diode GL514A



View full details

Description

 An IR LED (infrared light-emitting diode) is a solid-state lighting (SSL) device. This diode IR emits light in the infrared range of the electromagnetic radiation spectrum IR LEDs allows for cheap, efficient production of infrared light, which is electromagnetic radiation in the 700 nm to 1mm range. IR LEDs are used in a number of types of electronics, including many types of remote controls for televisions and other electronics. Used with infrared cameras, IR lights can act as a spotlight while remaining invisible to the naked eye. Because IR led diode can be used in conjunction with a number of different types of sensors, they are becoming common in machine-to-machine (M2M) environments and the Internet of Things (IoT) applications.

Best Online Shopping website for Infrared Emitting LED Diode GL514A Best IR LED Diode in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

Features Of Infrared Light-Emitting Diode GL514A:

  • IR LEDs allow for cheap, efficient production of infrared light.
  • Widely used in a number of types of electronics, including many types of remote controls for televisions and other electronics.
  • Used in conjunction with the different types of sensors.

Specifications Of IR TO-18 Type Infrared Emitting Diode GL514A:

  1. Type: TO-18
  2. Mount: Through Hole
  3. Number of Pins: 2
  4. Forward Current: 150 mA
  5. Forward Voltage: 1.6 V
  6. Lens Style: Circular
  7. Max Operating Temperature: 125 °C
  8. Min Operating Temperature: -40 °C
  9. Number of Elements: 1
  10. Orientation: Top View
  11. Power Dissipation: 250 mW
  12. Power Rating: 250 mW
  13. Test Current: 100 mA
  14. Viewing Angle: 14 °
  15. Wavelength: 950 nm
  16. Dimensions: 5.7mmx5.7 mm

Package Includes:

  • 1 x Infrared Emitting LED Diode GL514A
