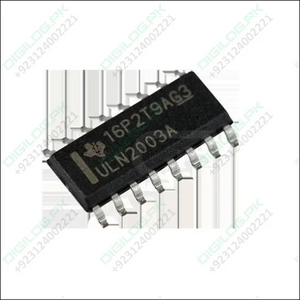

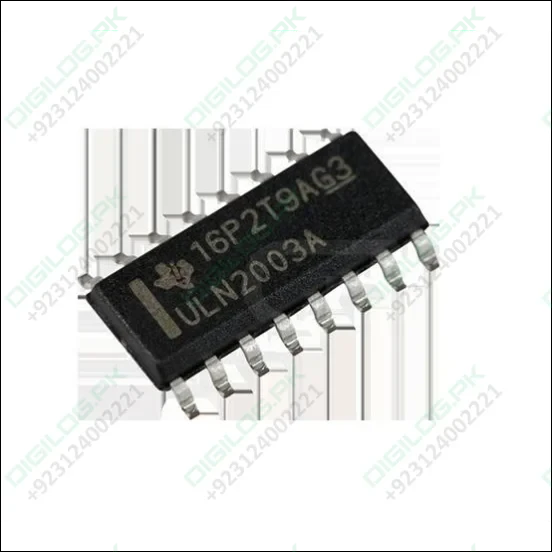

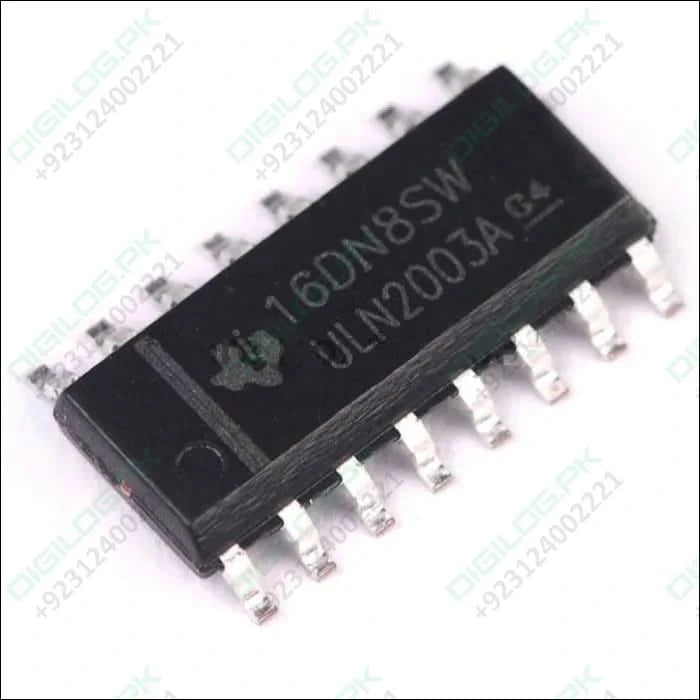

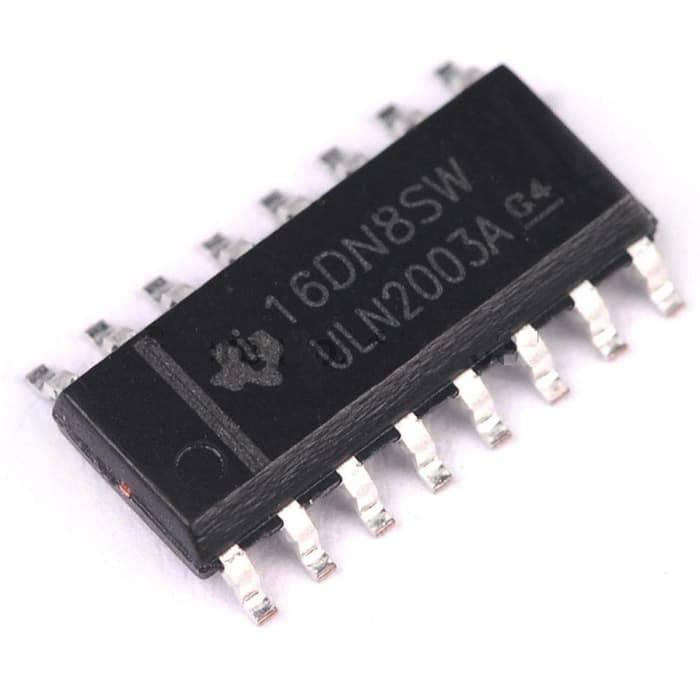

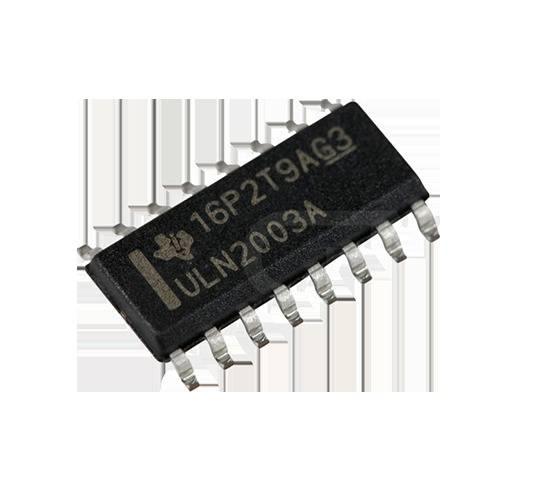

Ic Uln 2003 - Smd

Ic Uln 2003 - Smd

Regular price Rs 50
Regular price Sale price Rs 50
Sale Sold out
Shipping calculated at checkout.

SKU:B571

NOTIFY ME WHEN IN STOCK

DESCRIPTION

Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULN20xxA/L high-voltage, high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers.  At an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7, 95 V) can be controlled.  Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters.  All devices feature open-collector outputs with integral clamp diodes.

The ULN2003A/L and ULN2023A/L have series input resistors selected for operation directly with 5 V TTL or CMOS.  These devices will handle numerous interface needs — particularly those beyond the capabilities of standard logic buffers.

The  ULN2003A/L is the standard Darlington arrays.  The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state.  Outputs may be paralleled for higher load current capability.  The ULN2023A/L will withstand 95 V in the OFF state.

FEATURES

  • Transistor Polarity: NPN
  •  Collector Emitter Voltage V(br)ceo: 50V
  •  DC Collector Current: 350mA
  •  Operating Temperature Range: -20°C to +70°C
  •  Transistor Case Style: SOIC
  •  No. of Pins: 16
  •  SVHC: No SVHC (18-Jun-2012)
  •  Current Ic Continuous a Max: 500mA
  •  Module Configuration: Seven
  •  No. of Transistors: 7
  •  Package / Case: SOIC
  •  Termination Type: SMD
