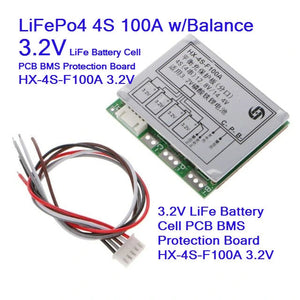

HX-4S-F100A 4S 12.8V/14.4V LiFePO4 BMS Protection Board with Balance
The HX-4S-F100A is a robust Battery Management System (BMS) engineered specifically for 4-cell (4S) 3.2V LiFePO4 battery packs. Operating safely at 12.8V to 14.4V, this board features integrated balance protection to ensure each individual cell charges evenly. This maximizes battery lifespan and maintains optimal performance for your custom power banks, solar energy storage systems, and DIY electronics projects. The module includes a clearly labeled, on-board wiring diagram showing exact connections, making installation straightforward. Ensure the safety and longevity of your power systems with this reliable component from Digilog.pk.
Key Features
- Model: HX-4S-F100A
- Supported Battery Type: 3.2V LiFePO4 batteries
- Configuration: 4S (4-Cell)
- Voltage Rating: 12.8V / 14.4V
- Protection: Integrated balance protection to prevent overcharging, over-discharging, and to ensure uniform cell health.

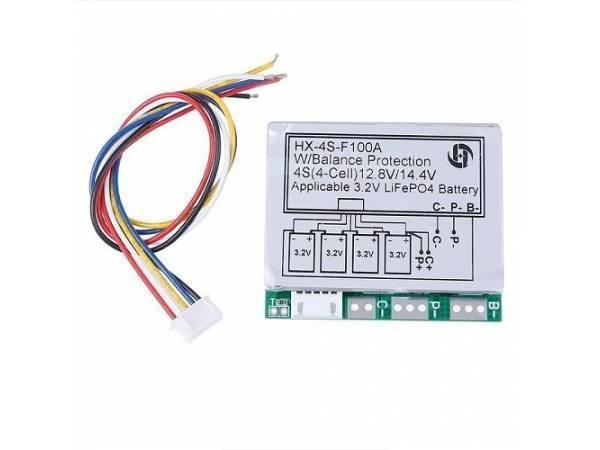

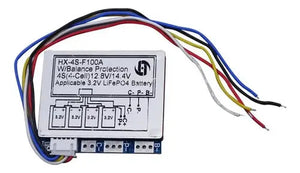

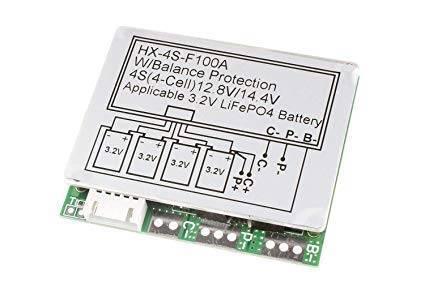

- Design: Compact footprint with a clear visual wiring schematic printed directly on the protective label.
