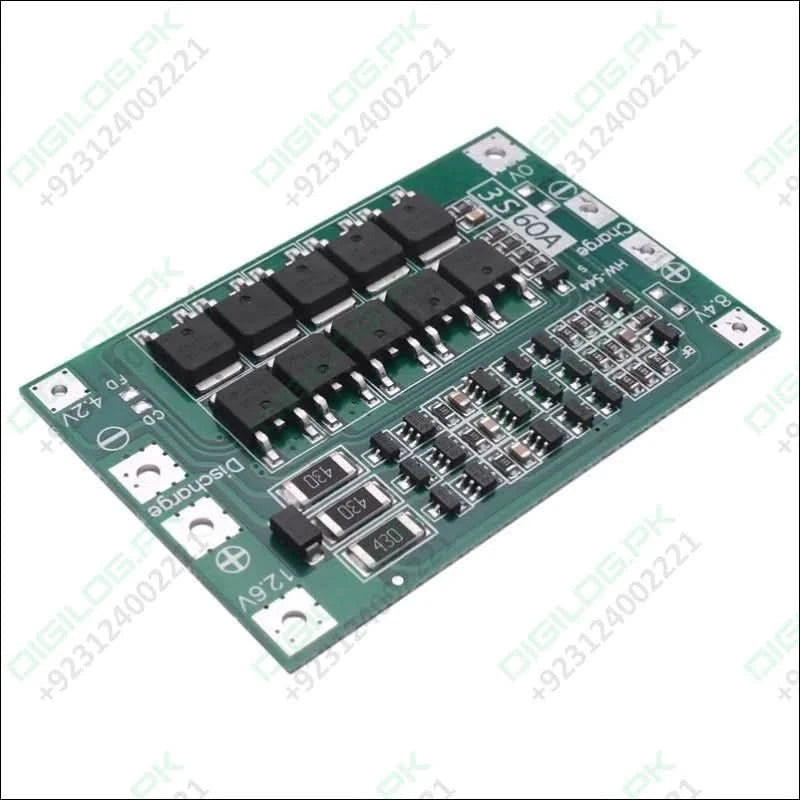

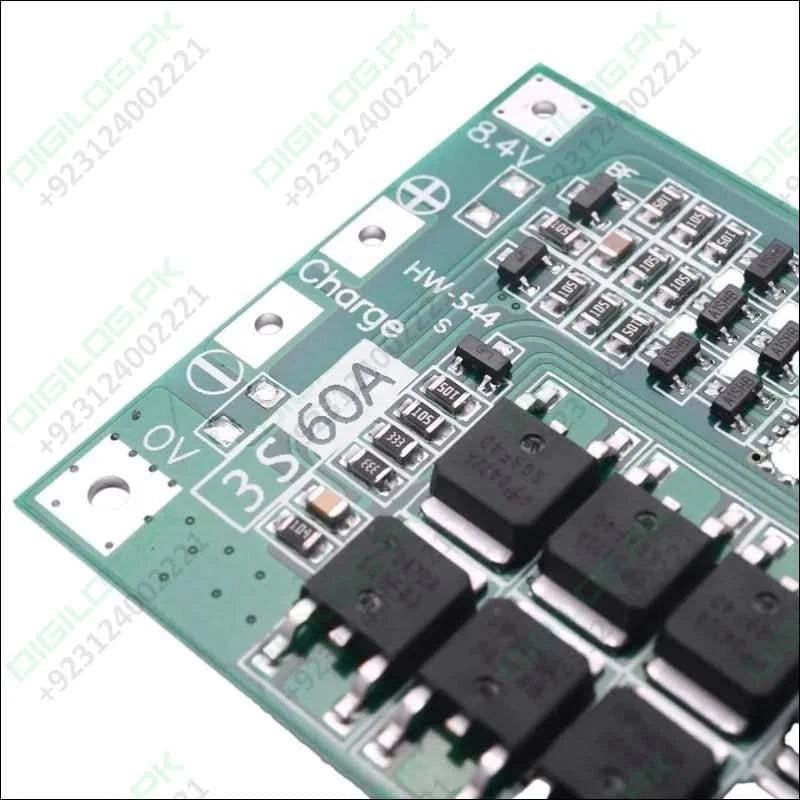

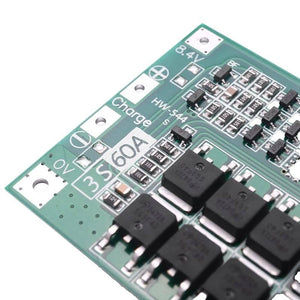

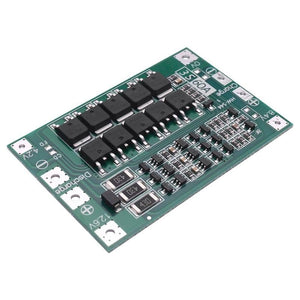

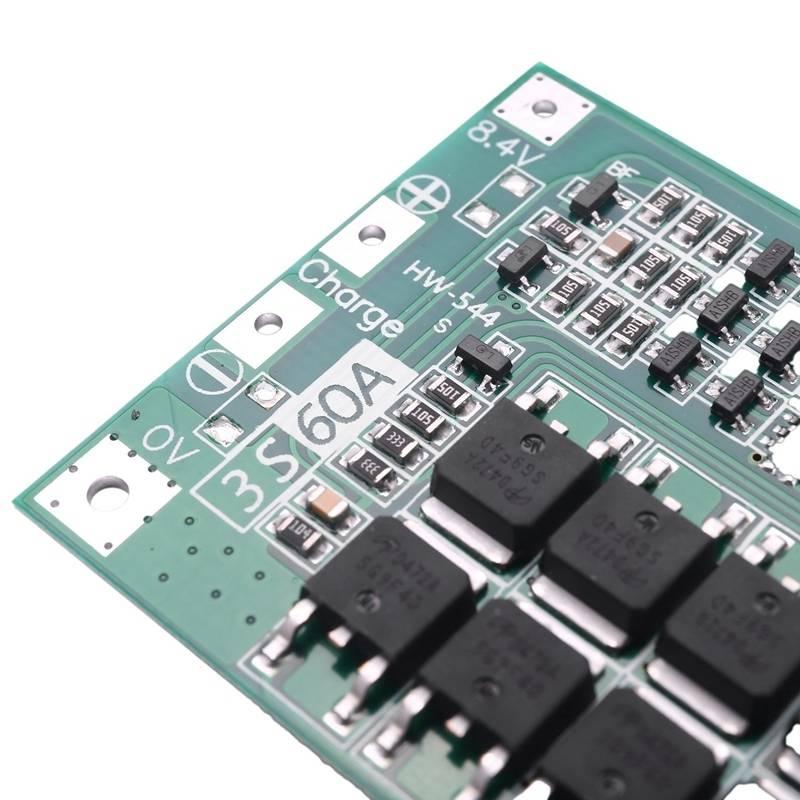

Hw-544 3s 11.1v 12.6v 60a 18650 Lithium Battery Protection Board With Equalization In Pakistan

Looking for a reliable and efficient battery management system (BMS) for your electric vehicle or renewable energy project in Pakistan? Look no further than the 3S 60A BMS with equalizer!. This advanced BMS is designed to protect and monitor your lithium-ion batteries, ensuring that they are always operating at optimal levels and preventing overcharging, over discharging, and other issues that can damage your batteries and reduce their lifespan. With its built-in equalizer, this BMS also ensures that all of your batteries are perfectly balanced, ensuring that they all have the same voltage and capacity and preventing any one battery from being overworked or underused.

Built with high-quality materials and featuring advanced monitoring and protection features, the 3S 60A BMS with equalizer is the perfect choice for any electric vehicle or renewable energy project in Pakistan. So why wait? Order yours today and start enjoying the peace of mind and reliability that only a top-quality BMS can provide!

Specifications And Features Of 3S 11.1V 12.6V 18650Lithium Battery Protection Board With Equalization:

• Charging voltage: 12.6V - 13.6V
• Type: balanced version
• Product size: 41*55*3.4mm (enhanced version), 42*62*3.4mm (balanced version)
• Model: BMS-60A-3S
• Item: Battery Charger Protection Board
• Scope of application: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V
• (including 18650, 26650, polymer lithium batteries, no size limit).
• Continuous discharge current (upper limit): 60A (If the heat dissipation environment is not good,
• please reduce the load current)
• Continuous charging current (upper limit): 15A
• Enhanced version version: Suitable for electric drills with a starting current of 120A or less and a power of 260W or less.
• Balance version: Suitable for electric drills with starting current below 120A and power below 260W, with balanced
• charging function.

Note 1: Successfully start the drill requires 3 15C-20C power batteries, or 6 10C-15C power batteries (recommended
power battery models: VTC4, VTC4A, VTC5A, VTC6); 0V and 12.6V cable, Use copper wire above 4 mm2 (cannot use
nickel plate! ! !).

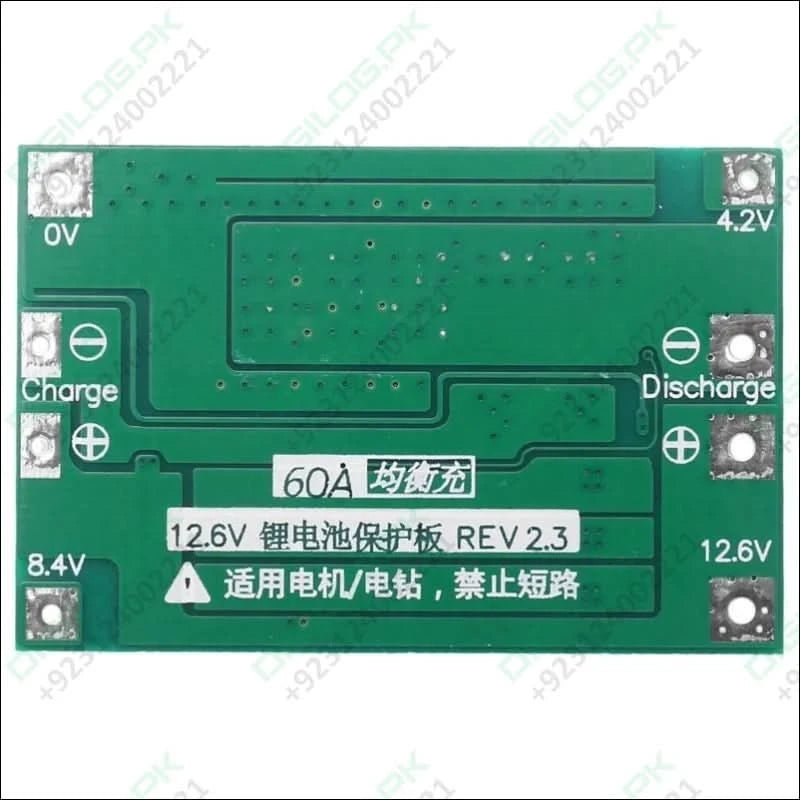

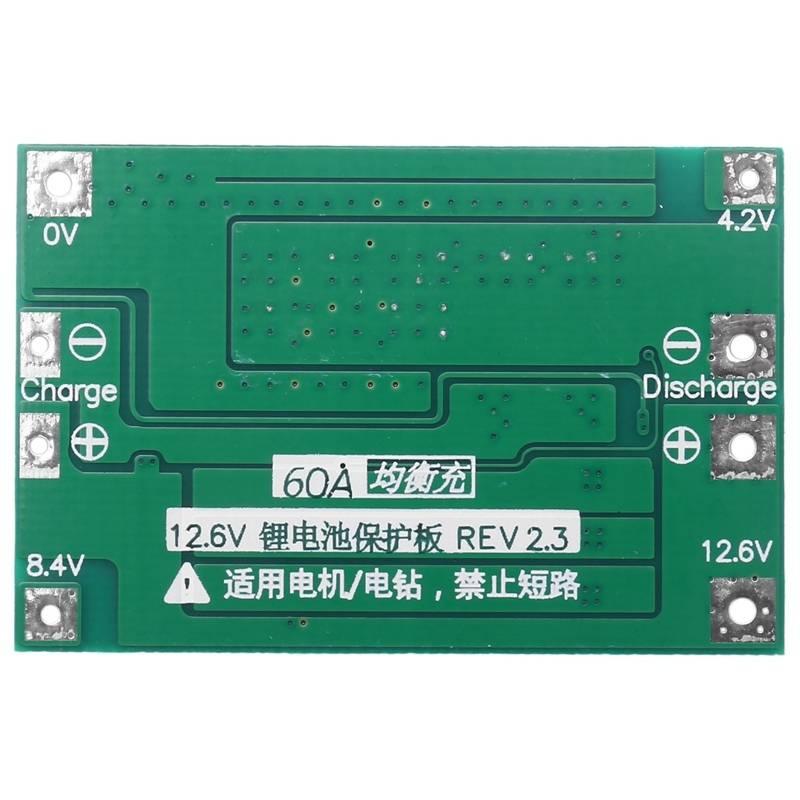

Note 2: Strictly follow the wiring of the diagram 0V, 4.2V, 8.4V, 12.6V, do not intentionally short circuit.

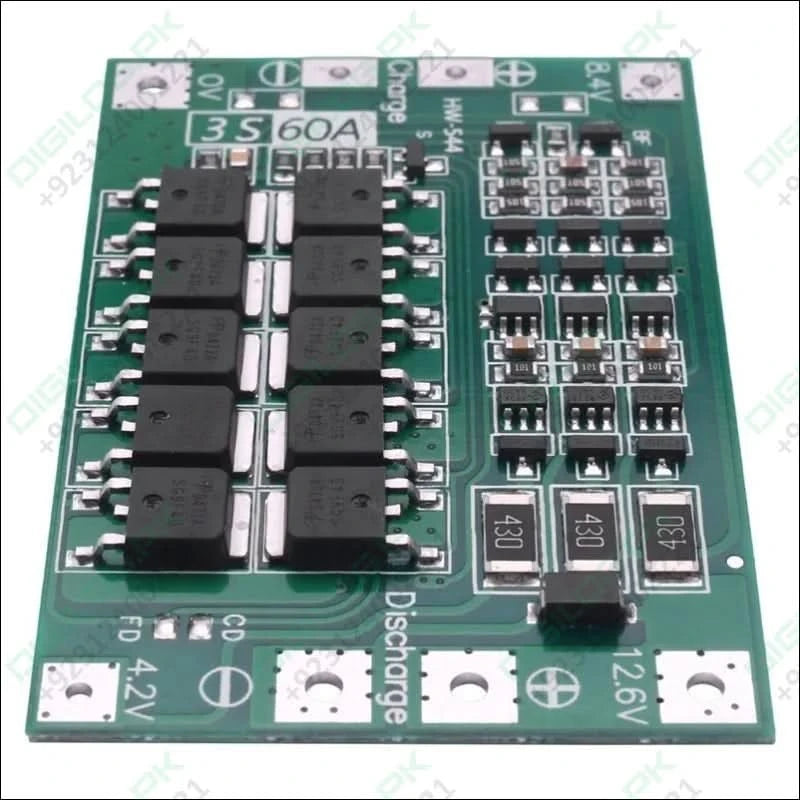

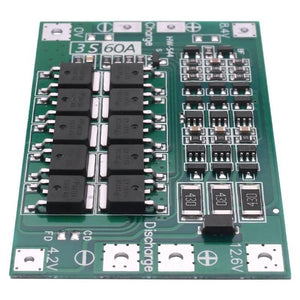

Note 3: When charging the battery, the "430" resistance heating is normal, indicating that the equalization circuit is working;
if the "430" resistor is also hot in the uncharged state, please check if the wrong line is connected.

For some customers with poor electronic foundation, please explain: Do not mix good battery and poor battery! The closer
the capacity/internal resistance of the 3 batteries is, the better! (The effect of 2 good batteries + 1 poor battery) = 3 use of poor battery).


Package:

• 1 x 3S 60A Battery Charger Module
