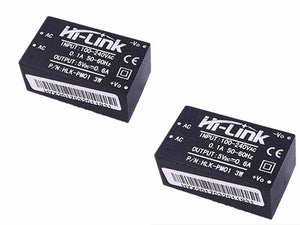

3w Hlk-pm01 Ac Dc 220v To 5v Step Down Power Supply Module Isolated Power Supply Module

3w Hlk-pm01 Ac Dc 220v To 5v Step Down Power Supply Module Isolated Power Supply Module

Regular price Rs 650
Regular price Sale price Rs 650
Sale Sold out
Shipping calculated at checkout.

SKU:B127,krt67,IMP100,Th50,S

NOTIFY ME WHEN IN STOCK

Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of a smart home. Low ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low power consumption. 100% load test.

Features:

  1. Rated input voltage: 100-240 V AC
  2. Input voltage range: 90~264 V AC
  3. Maximum input current: ≤ 0.2 A
  4. Input inrush current: ≤ 10 A
  5. Maximum input voltage: ≤ 270 V AC
  6. Input slow start: ≤ 50 mS
  7. Input low voltage efficiency: Vin = 110V AC, the output full load ≥ 69 %
  8. Input high voltage efficiency: Vin = 220VAc, the output full load ≥ 70 %
  9. Long term reliability: MTBF ≥ 100,000 H
  10. No-load rated output voltage: 5 ± 0.1 V DC
  11. Full load rated output voltage: 5 ± 0.2 V DC
  12. Short time maximum output current: ≥ 1000 MA
  13. Long time maximum output current: ≥ 600 MA
  14. Voltage regulation: ± 0.2%
  15. Load Regulation: ± 0.5%
  16. Output ripple and noise: (MVp-p) ≤ 50 MV. -- Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, the load side is tested with 10uF and 0.1uF capacitors.

Specifications:

  1. Switch machine overshoot: (Rated input voltage, output plus 10% load) ≤ 5% VO
  2. Output over-current protection -- Output the maximum load of 150-200% A
  3. Output short circuit protection.
  4. High efficiency, high power density
  5. The product is designed to meet the requirements of EMC and Safety Test

Notes:

  1. Temperature rise rule:
    At room temperature, the power supply capacitor, the main transformer and other internal surface temperature rise cannot exceed 90 ℃;
  2. Shell surface temperature rise cannot exceed 60 ℃;

Package Includes:

  • 1x HLK-PM01 AC DC 220V to 5V Step-Down Power Supply Module Isolated Power Supply Module
View full details

Description

Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of a smart home. Low ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low power consumption. 100% load test.

Features:

  1. Rated input voltage: 100-240 V AC
  2. Input voltage range: 90~264 V AC
  3. Maximum input current: ≤ 0.2 A
  4. Input inrush current: ≤ 10 A
  5. Maximum input voltage: ≤ 270 V AC
  6. Input slow start: ≤ 50 mS
  7. Input low voltage efficiency: Vin = 110V AC, the output full load ≥ 69 %
  8. Input high voltage efficiency: Vin = 220VAc, the output full load ≥ 70 %
  9. Long term reliability: MTBF ≥ 100,000 H
  10. No-load rated output voltage: 5 ± 0.1 V DC
  11. Full load rated output voltage: 5 ± 0.2 V DC
  12. Short time maximum output current: ≥ 1000 MA
  13. Long time maximum output current: ≥ 600 MA
  14. Voltage regulation: ± 0.2%
  15. Load Regulation: ± 0.5%
  16. Output ripple and noise: (MVp-p) ≤ 50 MV. -- Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, the load side is tested with 10uF and 0.1uF capacitors.

Specifications:

  1. Switch machine overshoot: (Rated input voltage, output plus 10% load) ≤ 5% VO
  2. Output over-current protection -- Output the maximum load of 150-200% A
  3. Output short circuit protection.
  4. High efficiency, high power density
  5. The product is designed to meet the requirements of EMC and Safety Test

Notes:

  1. Temperature rise rule:
    At room temperature, the power supply capacitor, the main transformer and other internal surface temperature rise cannot exceed 90 ℃;
  2. Shell surface temperature rise cannot exceed 60 ℃;

Package Includes:

  • 1x HLK-PM01 AC DC 220V to 5V Step-Down Power Supply Module Isolated Power Supply Module
