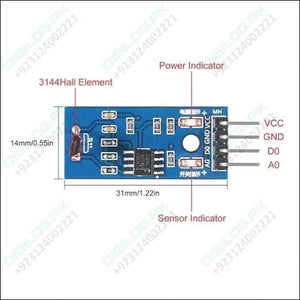

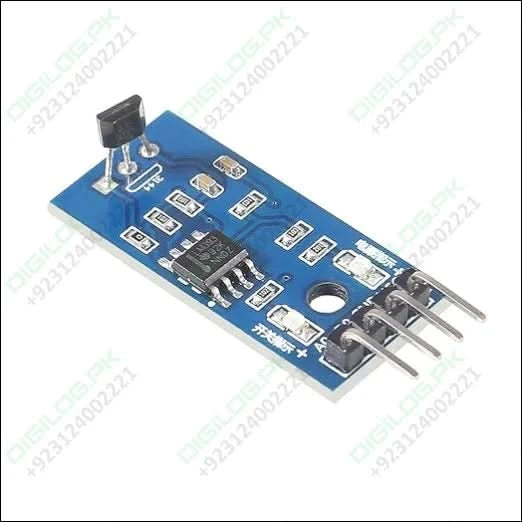

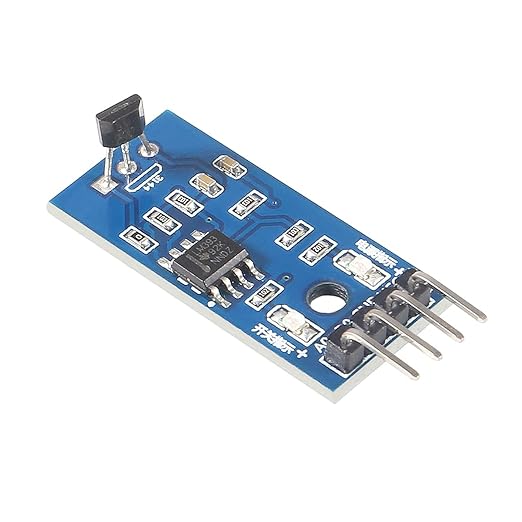

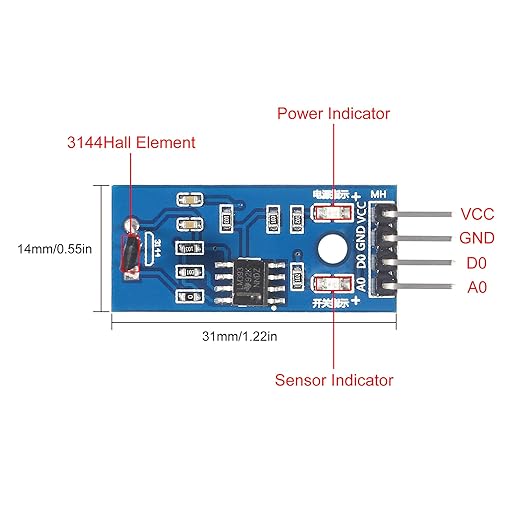

Hall Effect Sensor Module 3144
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
The Hall Effect Sensor Module 3144 is a compact and cost-effective device used to detect the presence of a magnetic field. It operates on the principle of the Hall Effect, where a voltage difference (Hall voltage) is produced across an electrical conductor, transverse to an electric current in the conductor and a magnetic field perpendicular to 1 both. This module is widely used in various applications, including:
- Position sensing: Detecting the position of a moving object.
- Speed measurement: Measuring the rotational speed of a motor or wheel.
- Current sensing: Measuring the current flowing through a conductor.
- Proximity detection: Detecting the presence of a nearby object without physical contact.
Key Features
- Digital Output: Provides a clear ON/OFF signal when a magnetic field is detected.
- Wide Operating Voltage: Typically operates from 4.5V to 28V.
- Fast Response Time: Offers quick and accurate detection.
- Compact Size: Easy to integrate into various projects.
- Cost-Effective: Provides a reliable sensing solution at an affordable price.
Applications
- Automotive: Used in anti-lock braking systems (ABS), speedometers, and engine control systems.
- Industrial Automation: Employed in robotics, CNC machines, and other automated equipment.
- Consumer Electronics: Found in various devices like smartphones, laptops, and appliances.
- DIY Projects: Popular among hobbyists and makers for building custom projects.
Where to Buy the Hall Effect Sensor Module 3144 in Pakistan
Digilog.pk offers a wide range of electronic components, including the Hall Effect Sensor Module 3144. Shop online and enjoy:
- Competitive Prices: Get the best value for your money.
- Fast and Reliable Shipping: Receive your order quickly and efficiently across Pakistan.
- Secure Online Payments: Shop with confidence using secure payment gateways.
- Excellent Customer Support: Get assistance with your purchase and technical inquiries.
FAQs
Q: How does the Hall Effect Sensor Module 3144 work?
A: The module detects the presence of a magnetic field using the Hall Effect. When a magnetic field is applied perpendicular to the current flowing through the sensor, a voltage difference is generated, which is then used to trigger the digital output.
Q: What is the output of the 3144 Hall Effect Sensor?
A: The 3144 sensor has a digital output, meaning it switches between two states (ON/OFF) based on the presence or absence of a magnetic field.
Q: What is the typical operating voltage of the module?
A: The typical operating voltage is between 4.5V and 28V, making it compatible with various microcontrollers and other circuits.
Q: Where can I find application examples for this sensor?
A: You can find numerous tutorials and projects online using the Hall Effect Sensor Module 3144, especially for Arduino based applications.
Q: Can I use this sensor to measure distance?
A: While the sensor primarily detects the presence of a magnetic field, it can be used for approximate distance measurement in specific setups where the magnetic field strength varies predictably with distance.
