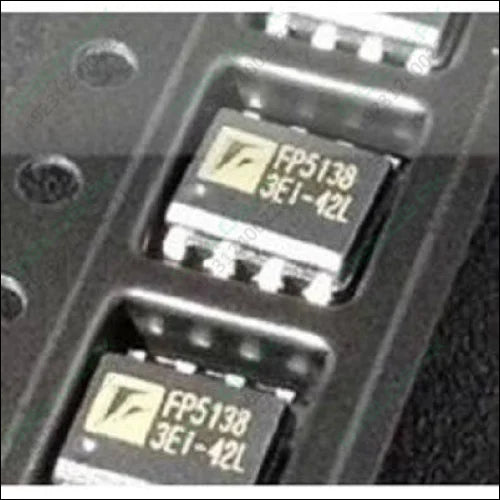

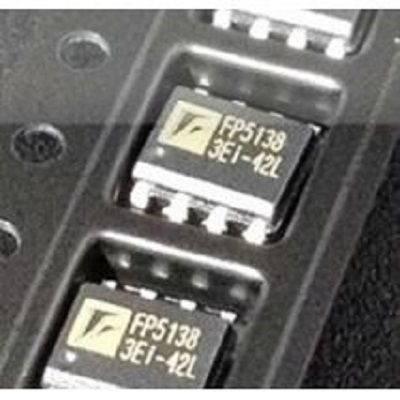

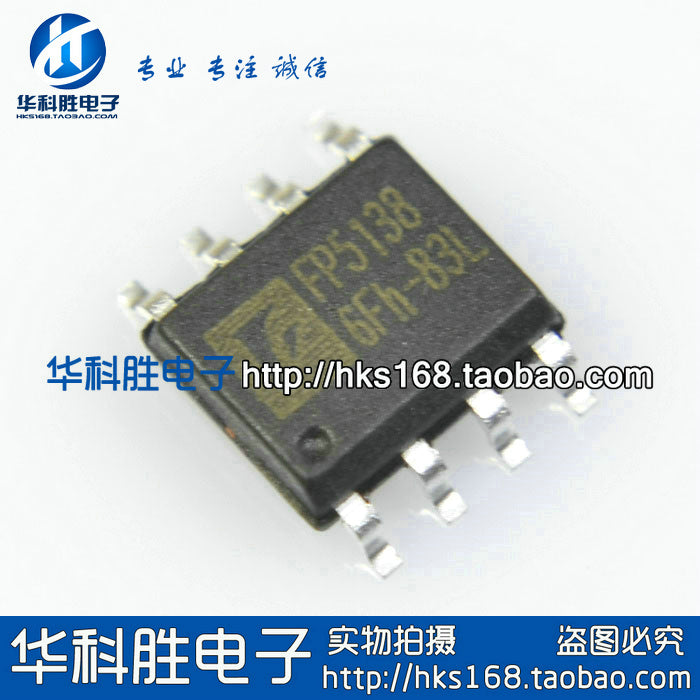

FP5138 Boost Controller SMD IC
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
The Boost Controller IC FP5138 is a boost topology switching regulator control IC for battery-used applications field. This IC controller FP5138 includes a totem-pole single output stage for driving NPN transistor or N-MOS. This converter IC is a high precision reference (0.5V) for comparing output voltage with feedback amplifier, internal dead-time control for controlling the minimum duty cycle. This boost converter is programmable soft start with short circuit protection function and logic level control for operating mode or standby mode.
Features & Specifications Of Boost Convert Control IC FP513:
- Wide supply voltage operating range: 1.8 to 15V.
- Reference voltage precision: 4%.
- Low current consumption: Operation Mode 5.5mA, Standby-by Mode 1μA.
- High-speed oscillator frequency: 1MHz max.
- Programmable Soft-Start function (SS).
- Short Circuit Protection function(SCP).
- Totem-pole output with adjustable on/off current (for NPN transistors or n-channel MOSFET).
- Logic level control standby mode function.
Applications Of non-synchronous PWM Boost Controller:
- Digital Camera
- PDA
- Portable Equipment
Package Includes:
- 1 x FP5138 Boost Controller IC
