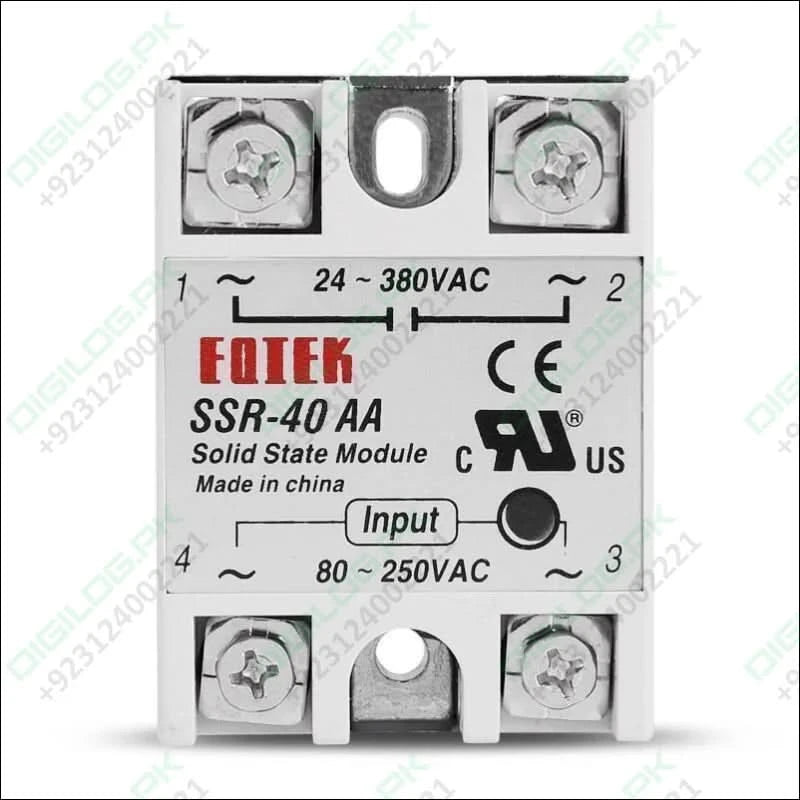

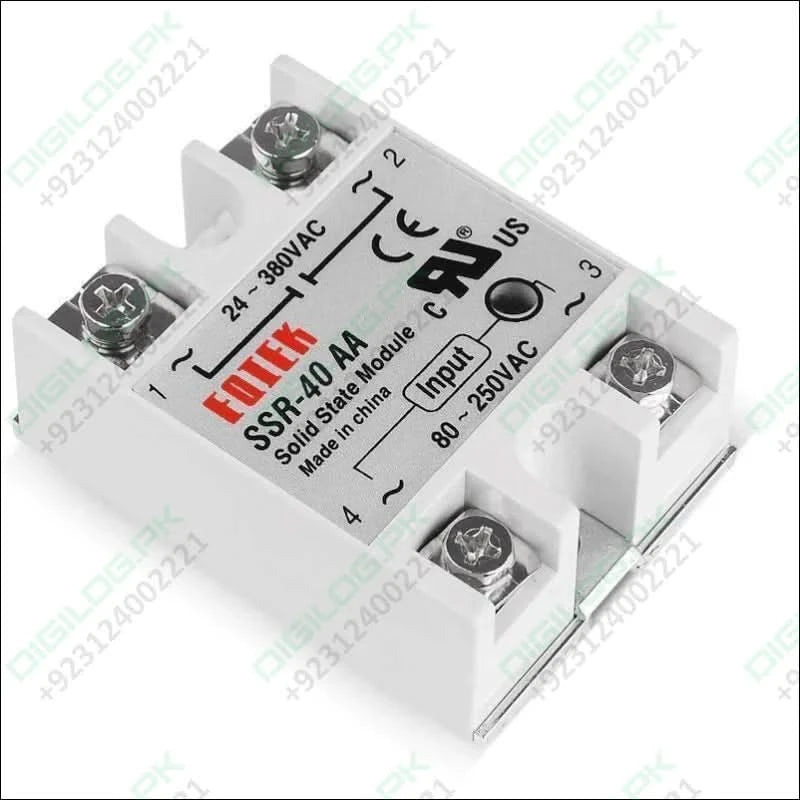

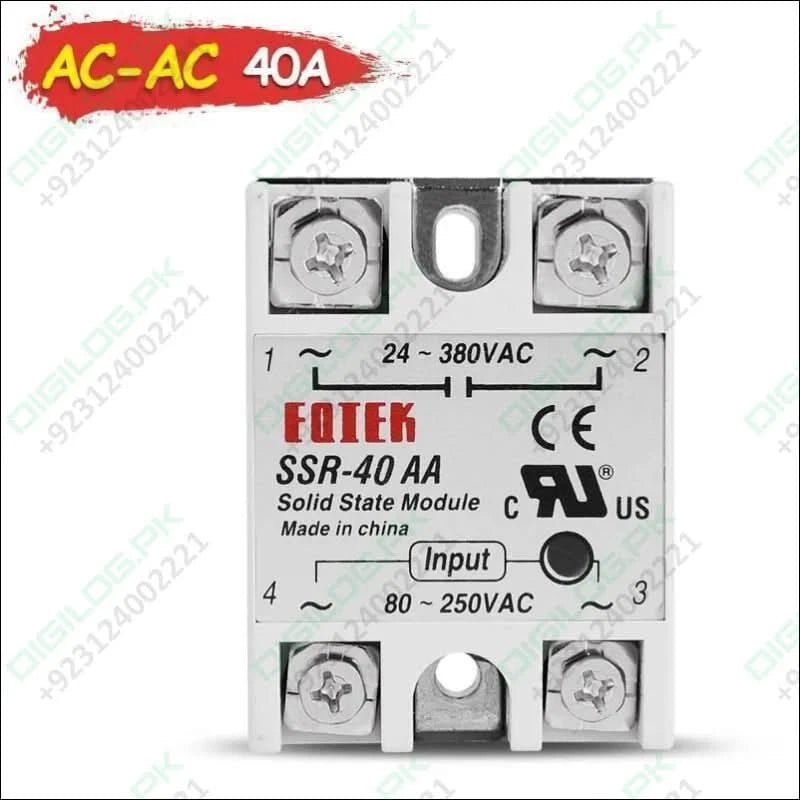

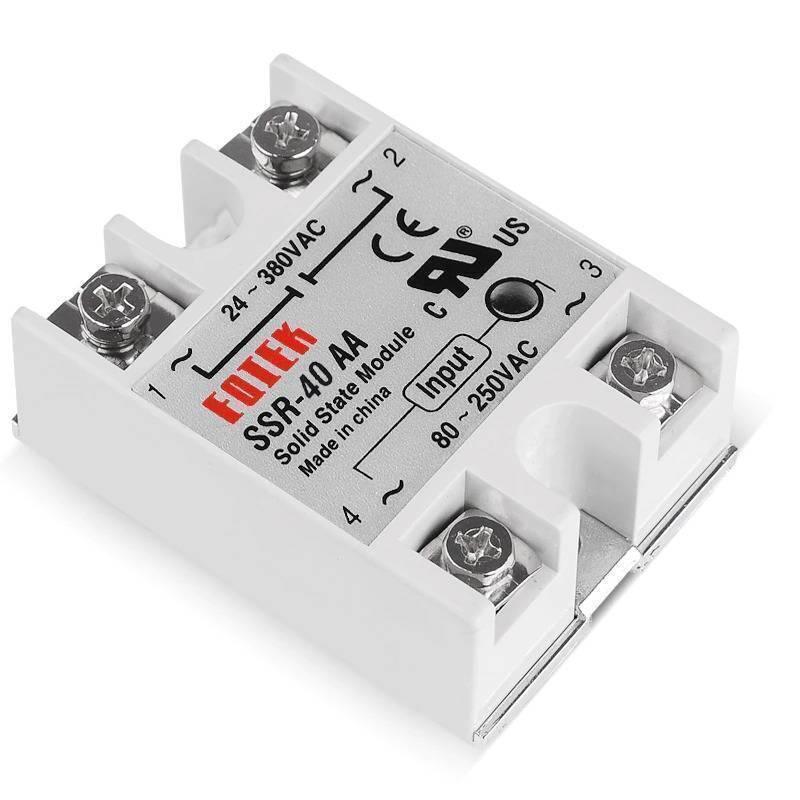

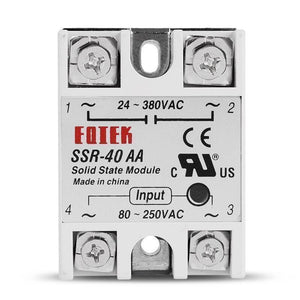

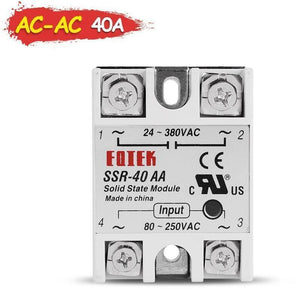

FOTEK Module SSR-40AA AC Activation AC-AC Control Signal 40A Solid State Relay SSR

FOTEK Module SSR-40AA AC Activation AC-AC Control Signal 40A Solid State Relay SSR

Regular price Rs.1,100
Regular price Sale price Rs.1,100
Sale Sold out
Shipping calculated at checkout.

SKU:B713, DELL

NOTIFY ME WHEN IN STOCK

40A SSR-40AA AC-AC Single Phase Solid State Relay SSR 40AA Voltage 80-250V AC 220V TO 24-380V AC Output Load High Quality You need choose the correct type (the current and the control Mode) Also a suitable radiator(to dissipate heat of SSR)  is improtant.

Notice:

As the generate heat of SSR is too high,SSR must be loaded on Radiator when the current of load is over 10A.And there are must put the thermal Grease Compound between SSR and Radiator.

In meanwhile, the cooling fan is necessary when the current is over 60A.

The Ratio depend on The kind of loading for your Equipment.

Resistive load: 60%  Inductive load: 30%

Input voltage 80-250V AC
Output load voltage 24-380VAC/90-480VAC(10-75Amp)
Control type Zero Cross Trigger
Response time ON<20ms/OFF<40ms
Voltage withstand Over 2.5Kvac/1Min
Insulating strengh Over 50m/500DC
Dimmension 63*45*23.2mm
High strengh ABS engineering plastics, gray case with LED indicator
Basic type SSR-40AA







123456
