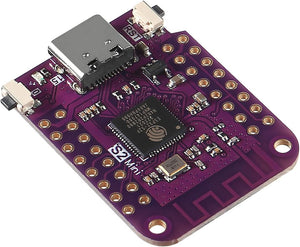

The ESP32-S2 WEMOS S2 Mini Development Board is a compact, high-performance development platform designed for embedded systems and IoT applications. Featuring the powerful ESP32-S2 single-core processor with integrated Wi-Fi, this board offers a perfect balance between performance, energy efficiency, and versatility. Built around the ESP32-S2FN4R2 chip, it includes 4MB Flash and 2MB PSRAM, making it well-suited for projects requiring ample memory and wireless connectivity.
Features:
- based ESP32-S2FN4R2 WIFI IC.
- Type-C USB.
- 4MB Flash.
- 2MB PSRAM.
- 27x IO.
- ADC, DAC, I2C, SPI, UART, USB OTG.
- Compatible with LOLIN D1 mini shields.
- Compatible with MicroPython, Arduino, Circuit Python and ESP-IDF.
- Default firmware: MicroPython.
Specifications:
|
Parameter |
Value |
|---|---|
|
Microcontroller |
ESP32-S2FN4R2 |
|
Operating Voltage |
3.3V |
|
Digital I/O Pins |
27 |
|
Analog Input Pins |
Up to 20 |
|
Flash Memory |
4MB |
|
PSRAM |
2MB |
|
Clock Speed |
240MHz |
|
WiFi |
IEEE 802.11 b/g/n, 2.4GHz |
|
Interfaces |
USB OTG, I2C, SPI, UART, I2S, RMT, LED PWM, etc. |
|

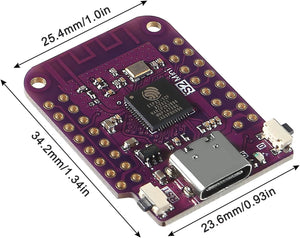

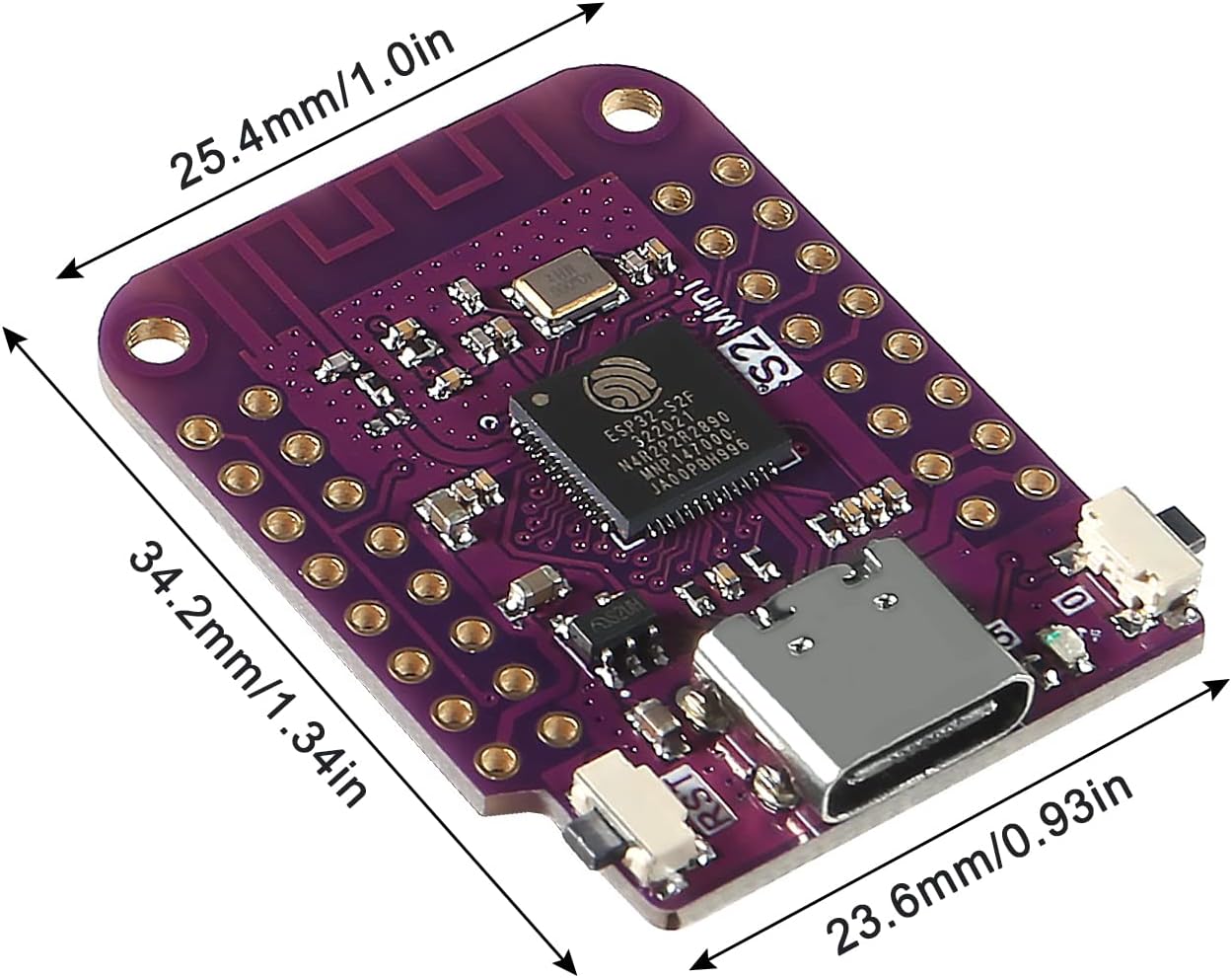

Dimensions |
34.2mm x 25.4mm |

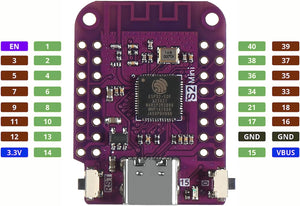

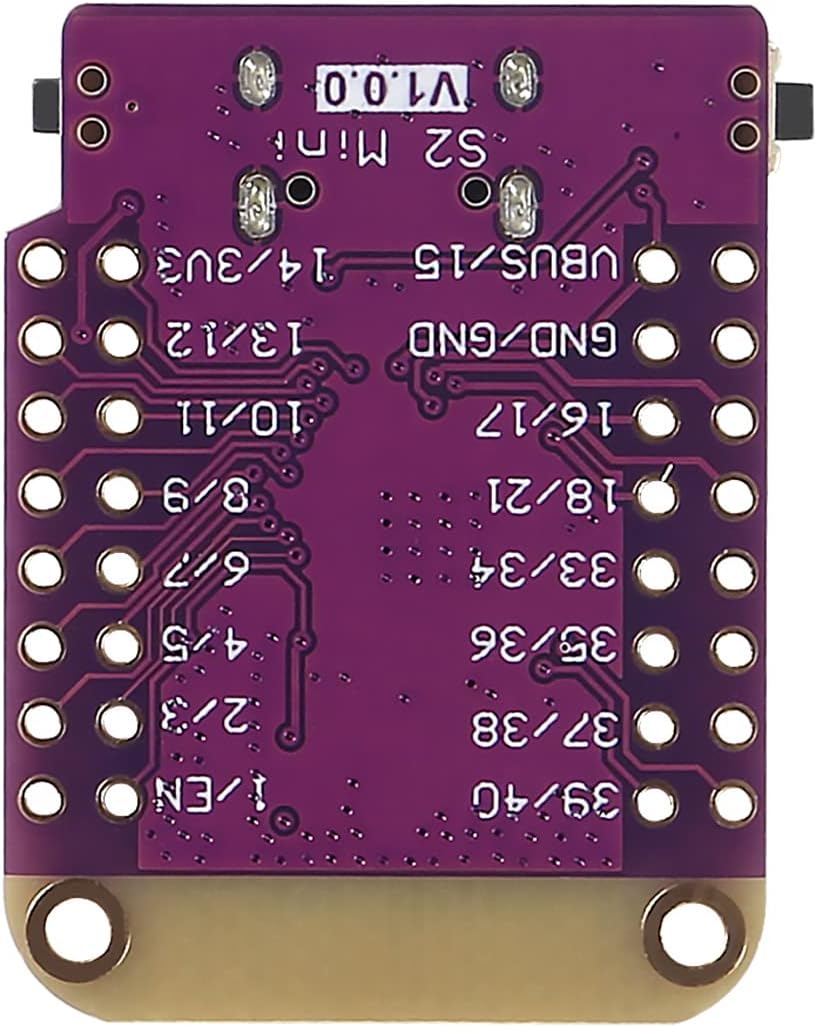

Pin Configuration:
Applications:
- IoT sensor hubs.
- Smart home devices.
- Wearable electronics.
- Industrial automation.
- Health monitoring.
- Educational projects.
Package Include:
- 1x ESP32-S2 WEMOS S2 Mini Development Board.
- 4x Male pin header(8pins).
Documentation:
