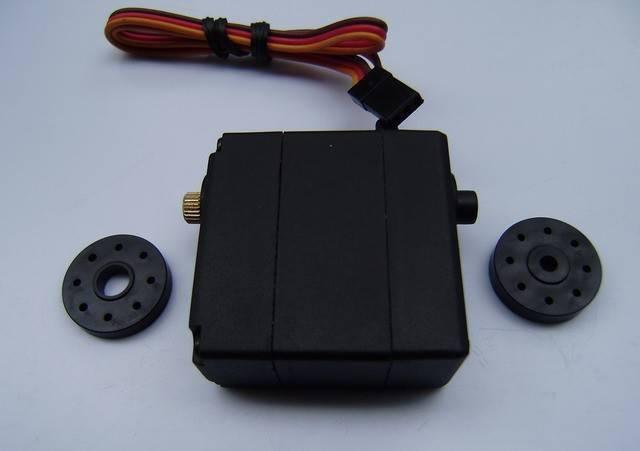

Doman Rc Metal Gear DM-RS151M 360degree Robot Servo 15kg Digital Servo
Pickup available at Digilog Electronics
Usually ready in 2 hours
Doman Rc Metal Gear DM-RS151M 360degree Robot Servo 15kg Digital Servo
DM-RS151M metal gear robot servo 0.17 sec/60deg (4.8v) 0.15sec/60deg (6.0v) 13.5kg.cm (4.8v) 15kg.cm (6.0v):
metal gear high torque 15kg 360o robot digital servo
Features:
- Metal gear servo apply for Robot
- High presicion metal gears made by CNC;
- Select motor,could compare with import one;
- expert and experienced in circuit for many years;
- TOP choice on case plastic,and best mold manufacture,
Specifications:
| Item No. | DM-RS151M |
| Voltage: | 4.8V ~ 6.0V |
| Speed: | 0.15sec/60deg (4.8v) 0.13sec/60deg (6.0v) |
| Torque: | 13.5kg.cm (4.8v) 15kg.cm (6.0v) |

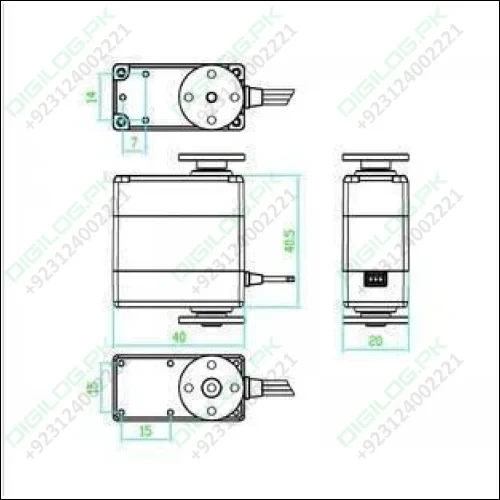

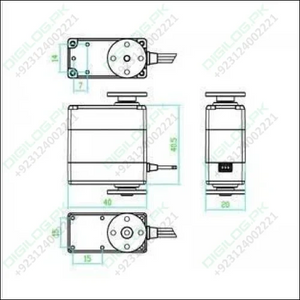

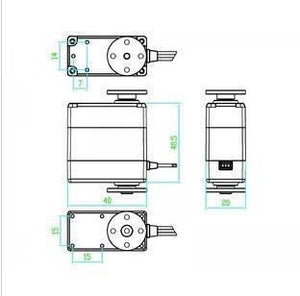

| Size: | 40.2mmX20.2mmX40.5mm |
| Weight: | 62gram |
| Motor: | Brushed |
| Gear Train: | Metal |
| Ball Bearing: | 2BB |
| Type: | Robot Servo |
- 15kg metal gear di-axis 360o robot digital servo
- Metal gear Digital servo
- Standard 25T teeth horn servo
- Select motor,2BB(Dual ball bearing)
- Waterproof,with circle rubber to prevent water
- Dead band width: 4usc
- Interface: (JR)
- Futaba,JR,SANWA,Hitec compatible;
- Wire length: 30cm,thicker than normal wire,special for HV servo used.
- GW: 70g
Package includes:
each retail Packing Include:

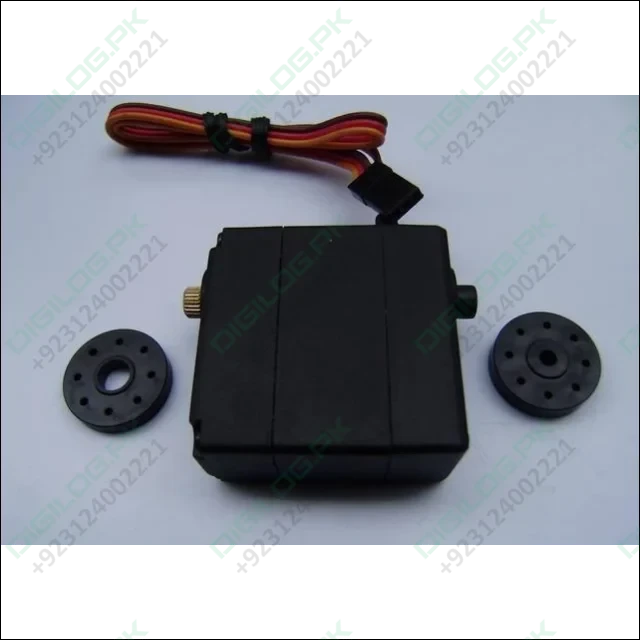

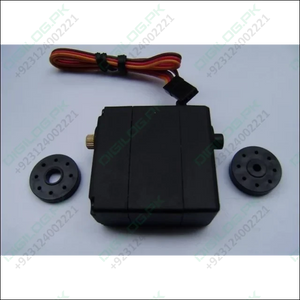

- Servo DM-RS151M×1PCS
- Accessories:
- 2 x round servo disc horns
- 2 x mounting screws
Notes:
rotation : 180 degree ( PWM 500-2500US,servo turn about 165-180degree )
270 degree ( PWM 500-2500US,servo turn about 270degree )
360 degree ( PWM 1500US,servo stop,other PWM servo turn continiuously,when 1000 -1500us,the far to 1500us,servo turn faster,when 1500us -2000us,the far from 1500us,servo turn faster )
