8-position DIP Switch – Slide Type, PCB Mount, 8-bit Manual Address Switch
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
📝 Product Description:

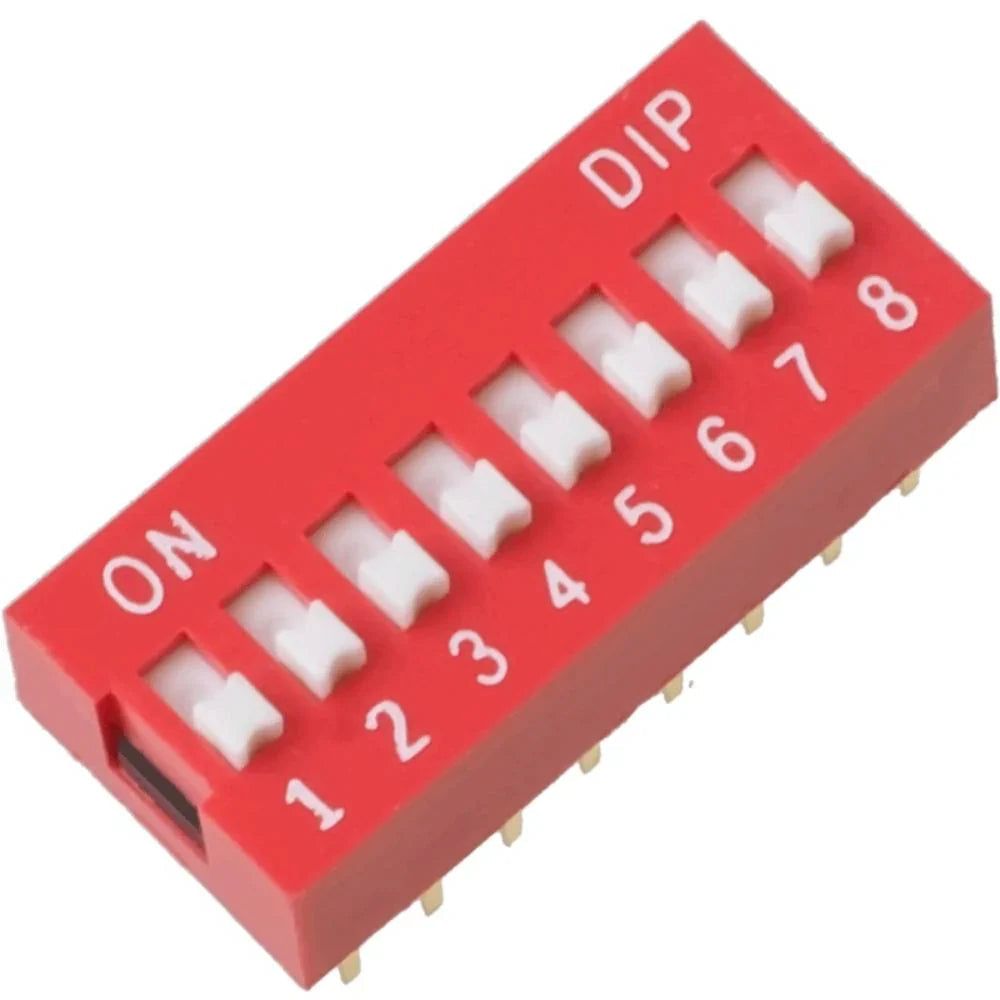

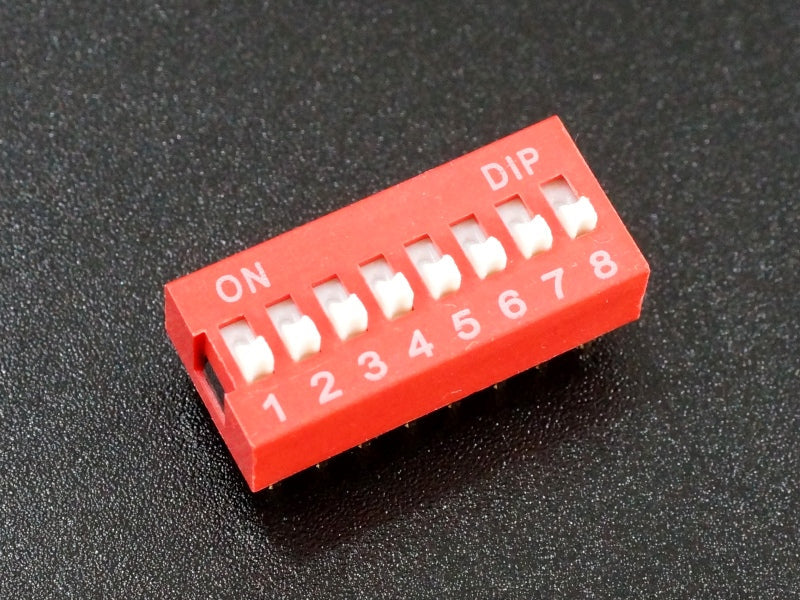

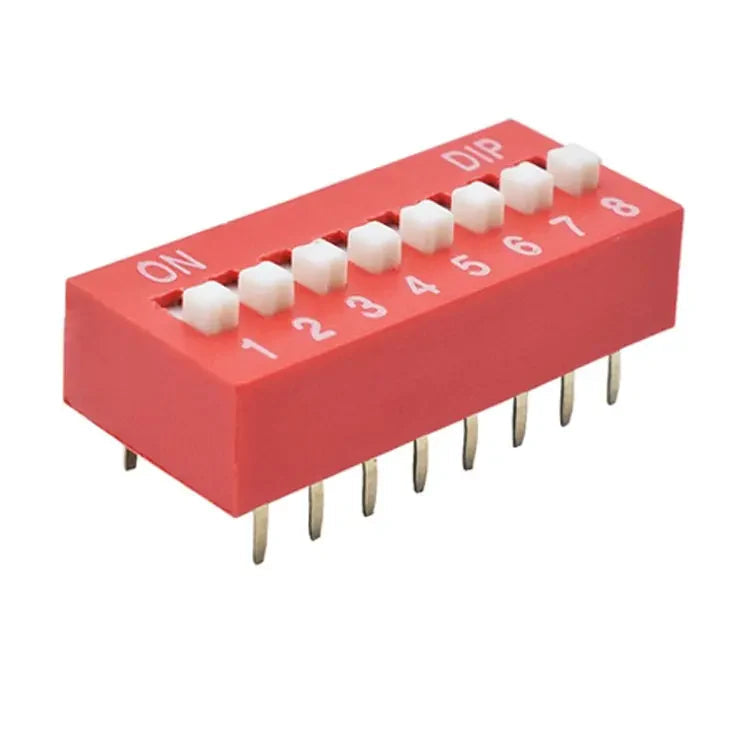

The 8-Position DIP Switch (Slide Type) is a manual electrical switch designed for use on printed circuit boards (PCBs) to control device settings, select modes, or set addresses. Each of the 8 switches operates independently, allowing for binary input configurations and quick customization without the need for jumpers.
Commonly used in microcontroller projects, communication devices, industrial controls, and configuration settings, this DIP switch offers easy on/off switching with no parts to lose. Its compact dual in-line package (DIP) format ensures easy integration with other electronic components.
🔧 Key Features
-
🔌 8 Independent Switches – Slide-type operation
-
⚙️ Standard Dual In-Line Package (DIP) – Easy PCB mounting
-
🛠 Quick Configuration – No jumper caps needed
-
📏 Compact Design – Saves space on PCB layouts
-
🌍 Versatile Applications – Microcontrollers, address settings, hardware configurations
-
🔧 Long Life & Reliability – Designed for multiple switching cycles
📋 Technical Specifications:
| Attribute | Details |
|---|---|
| Type | DIP Switch – Slide Type |
| Number of Switches | 8 (8-bit) |
| Mounting Style | Through-hole (PCB Mount) |
| Operation Type | Manual slide ON/OFF |
| Pitch | Standard DIP spacing |
| Application | Address setting, mode selection, configuration control |
| Color | Red body with white actuators |
🌍 Applications
-
Microcontroller projects (Arduino, STM32, ESP32)
-
Communication devices (RS485/RS232 address settings)
-
Industrial control systems
-
Frequency and mode selection
-
Hardware feature enabling/disabling
-
Overclocking and device configuration
📦 Package Includes
-
1 × 8-Position DIP Slide Switch
