Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from to 20V Undervoltage lockout 3.3V, 5V and 15V input logic compatible Cross-conduction prevention logic Internally set deadtime High side output in phase with input Shut down input turns off both channels Matched propagation delay for both channels

Package Include:

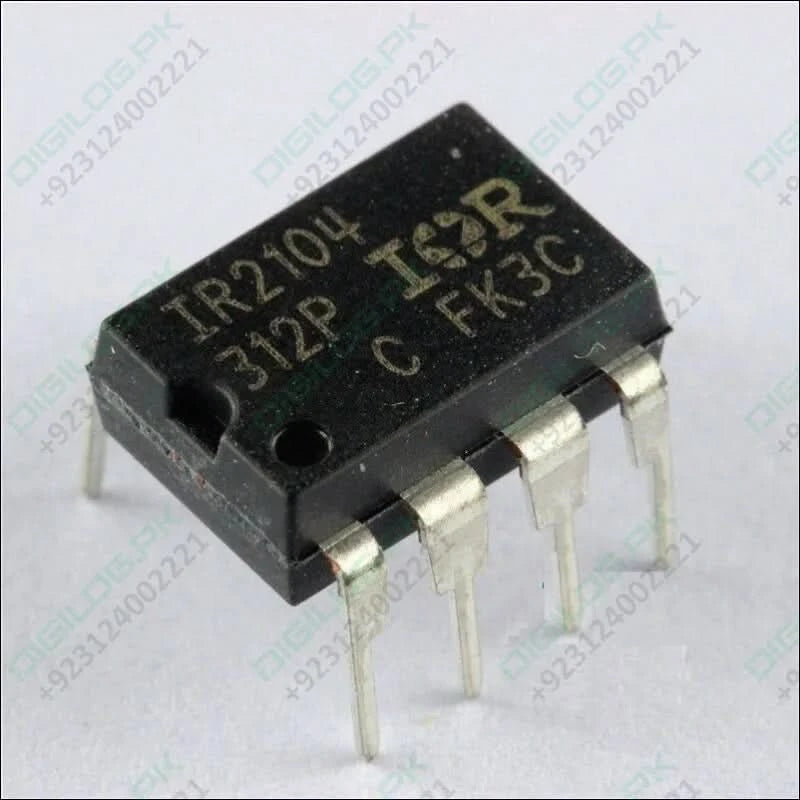

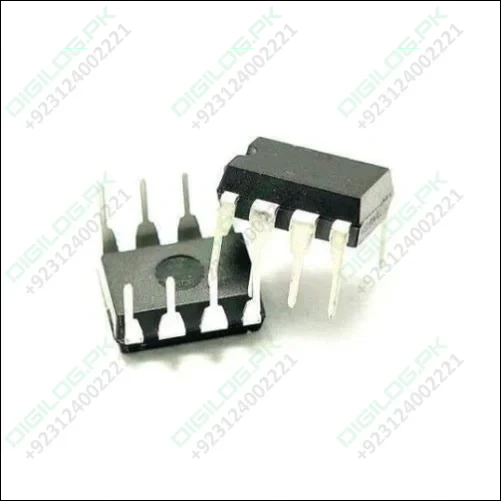

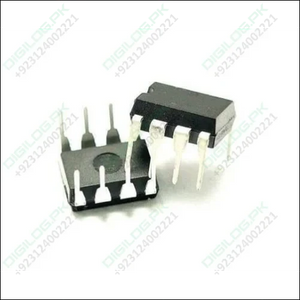

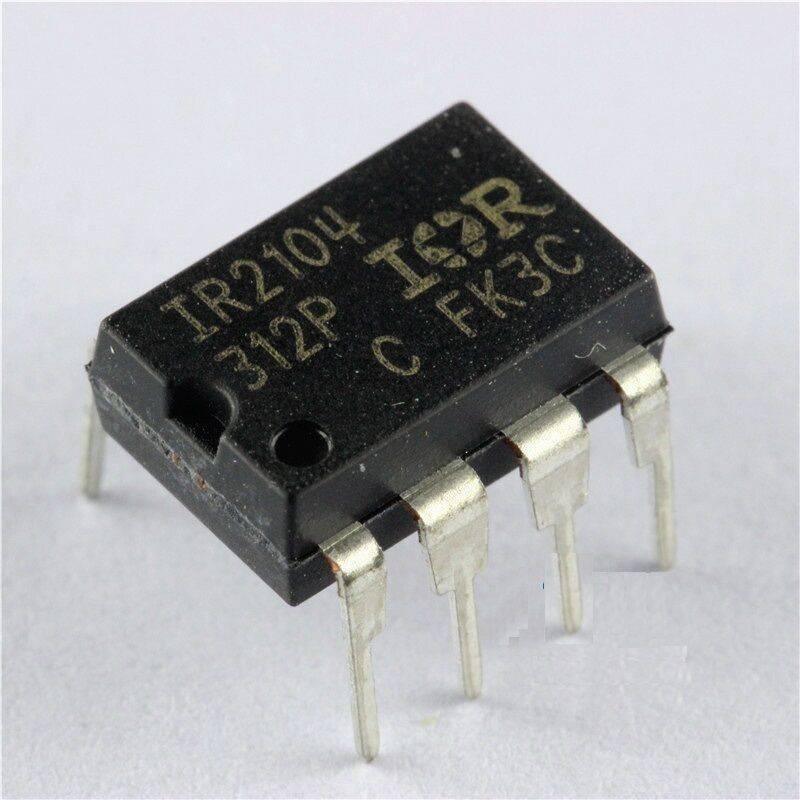

• 1XDIP-8 gate drivers ic chip IR2104
