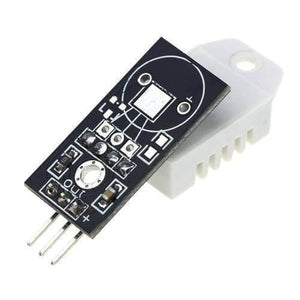

Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white plastic sensor housing mounted on a black circuit board with three metal pins protruding from one end.
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white plastic sensor mounted on a black rectangular circuit board with three metal pins at the bottom.
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white rectangular sensor with a grid pattern mounted on a small black circuit board with three metal connection pins.
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white AM2302 sensor mounted on a black PCB with three gold-plated pins extending from the end.
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white plastic sensor housing mounted on a black circuit board with three metal pins protruding from one end.
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white plastic sensor mounted on a black rectangular circuit board with three metal pins at the bottom.
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white rectangular sensor with a grid pattern mounted on a small black circuit board with three metal connection pins.

Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302

Sale price Rs 1,420
SKU: B643,Krt39,IMP100,Th50,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white AM2302 sensor mounted on a black PCB with three gold-plated pins extending from the end.
+
MQ135 Air Quality Detector Sensor Module - a silver metallic sensor head on a blue circuit board with four output pins and a blue potentiometer.
+
Lux Sensor Gy-2561 TSL2561 Ambient Light Sensor Module - a blue rectangular circuit board with a sensor chip and a separate five-pin male header connector.
+
MQ7 Co Carbon Monoxide Coal Gas Sensor Module - a blue rectangular circuit board with a cylindrical grey sensor component and four metal pins at the top.
MQ7 Co Carbon Monoxide Coal Gas Sensor Module - a blue rectangular circuit board with a cylindrical grey sensor component and four metal pins at the top.
This item: Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 -
Sale price Rs 1,420
MQ135 Air Quality Detector Sensor Module - a silver metallic sensor head on a blue circuit board with four output pins and a blue potentiometer.
MQ135 Air Quality Detector Sensor Module -
Sale price Rs 310
Lux Sensor Gy-2561 TSL2561 Ambient Light Sensor Module - a blue rectangular circuit board with a sensor chip and a separate five-pin male header connector.
Lux Sensor Gy-2561 TSL2561 Ambient Light Sensor Module -
Regular price Rs 900 Sale price Rs 610
MQ7 Co Carbon Monoxide Coal Gas Sensor Module - a blue rectangular circuit board with a cylindrical grey sensor component and four metal pins at the top.
MQ7 Co Carbon Monoxide Coal Gas Sensor Module -
Sale price Rs 360
Price for all:
Regular total price Rs 2,990 Sale total price Rs 2,700

Pickup available at Digilog Electronics

Usually ready in 2 hours

Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white AM2302 sensor mounted on a black PCB with three gold-plated pins extending from the end.

Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302 - a white AM2302 sensor mounted on a black PCB with three gold-plated pins extending from the end.
Original DHT22 Sensor Module Digital Temperature And Humidity Sensor Module AM2302
Sale priceRs 1,420

The DHT22 Digital Temperature and Humidity Sensor Module AM2302 is a basic, low-cost digital temperature and humidity sensor. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air, and spits out a digital signal on the data pin (no analog input pins needed). AM2302 Sensing Module is fairly simple to use but requires careful timing to grab data. The only real downside of this sensor is you can only get new data from it once every 2 seconds, so when using our library, sensor readings can be up to 2 seconds old. The Temp and Humidity sensor DHT22 can measure temperature from -40°C to 80°C and humidity from 0% to 100% with an accuracy of ±1°C and ±1%. So if you are looking to measure in this range then this sensor might be the right choice for you.

Features Of DHT22 Capacitive Humidity Sensing Digital Temperature And Humidity Module:

  • High precision
  • Capacitive type
  • Full range temperature compensated
  • Relative humidity and temperature measurement
  • Calibrated digital signal
  • Outstanding long-term stability
  • Extra components not needed
  • Long transmission distance
  • Low power consumption
  • 4 pins packaged and fully interchangeable

Specifications Of Digital Temperature and Humidity Meter DHT 22:

  1. Operating Voltage: 3.5V to 5.5V
  2. Operating current: 0.3mA (measuring) 60uA (standby)
  3. Output: Serial data
  4. Temperature Range: -40°C to 80°C
  5. Humidity Range: 0% to 100%
  6. Resolution: Temperature and Humidity both are 16-bit
  7. Accuracy: ±0.5°C and ±1%

Applications:

  • Measure temperature and humidity
  • Local Weather station
  • Automatic climate control
  • Environment monitoring



Package Includes:

  • 1 x DHT22 Digital Temperature and Humidity Sensor Module
