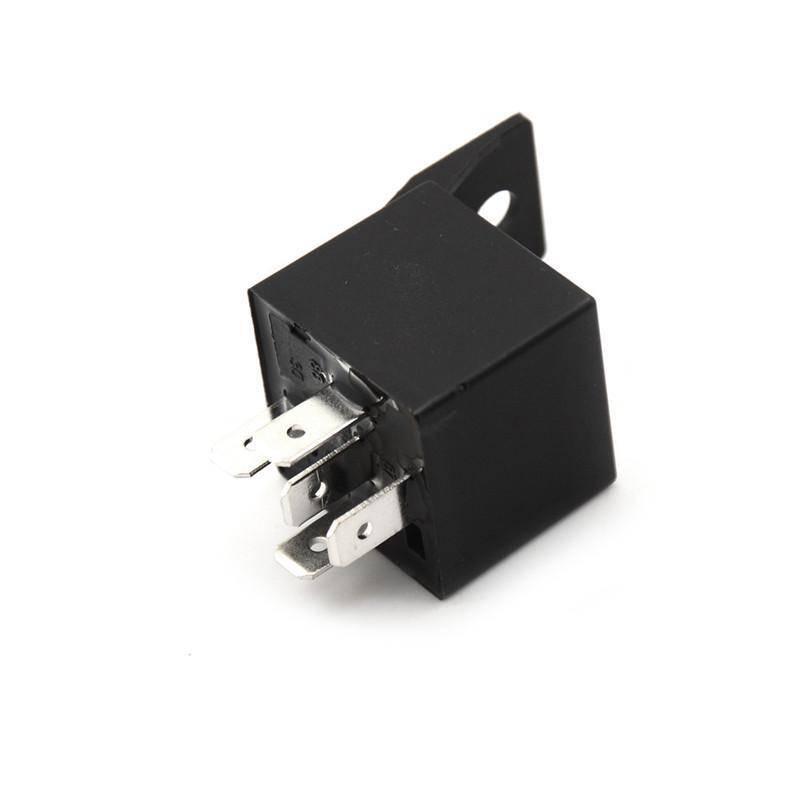

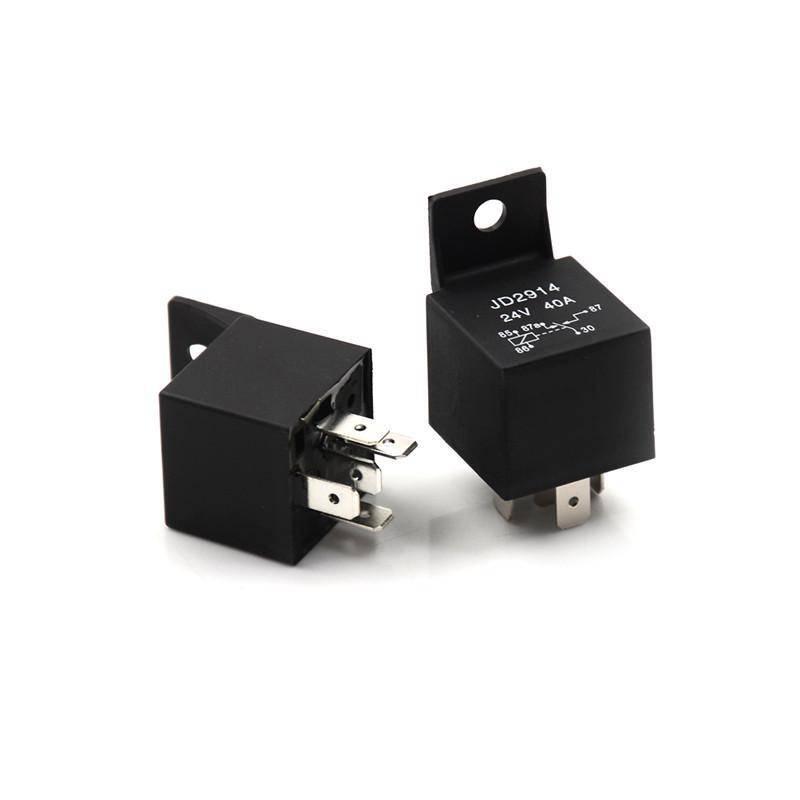

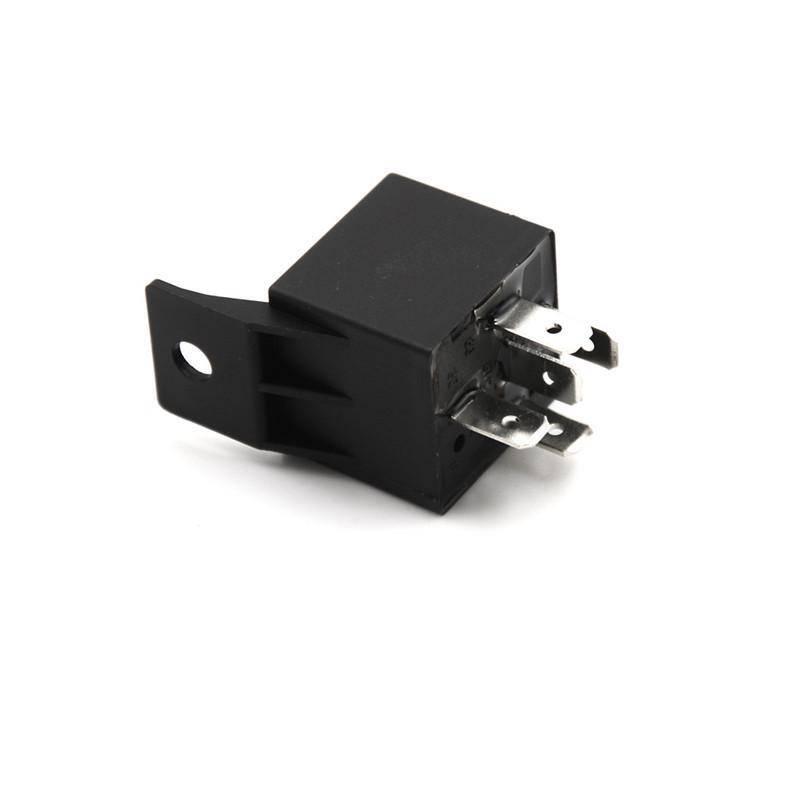

Dc 24v 40a 5 Terminals Male Power Connector Relay
Description
DC 24V 40A 5 Terminals Male Power Connector Relay uses a single coil of wire wound around the iron core to make the electromagnet. Male Power Connector Relay, when the DC coil is energized, the magnetism generated in the core is steady because DC just keeps going. The steady magnetism keeps the lever attracted as long as the DC is flowing. Once the current is turned off and the iron core is no longer magnetized, the spring-loaded lever returns to a relaxed position and the electrical contacts are switched back.
Features of DC 24V 40A 5 Terminals Male Power Connector Relay:
- 100% brand new and high quality
- The Black Car Relay is widely used for fog light, headlight, battery control, oil pump control, fan control, air conditioner, harness
- Hundreds of uses include- starter kills, dome light supervision, trunk release, polarity change, power door lock/actuator control, change a low current output to high current, add ignition/accessory outputs, control motors/other electronics, It is Also suitable for automobile used for control, alarms, horn, headlight and more.
- Red Copper Coil
- Cu-AG-Cr alloy TouchPoint
- Red Copper Over-current Protection
Specifications of DC 24V 40A 5 Terminals Male Power Connector Relay:
- Contact Form: 1A 1B 1C 2A
- Contact material: Silver Alloy
- Operating Current: 40A
- Rated Voltage: DC 24V
- Electrical life: 100000 ops
- Mechanical Life: 10000000 ops
Package Includes:
1 x DC 24V 40A 5 Terminals Male Power Connector Relay
