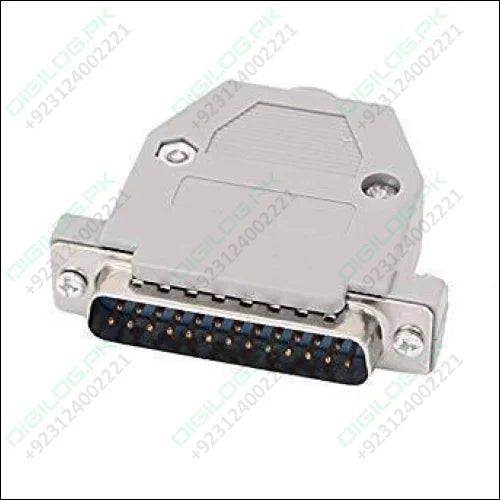

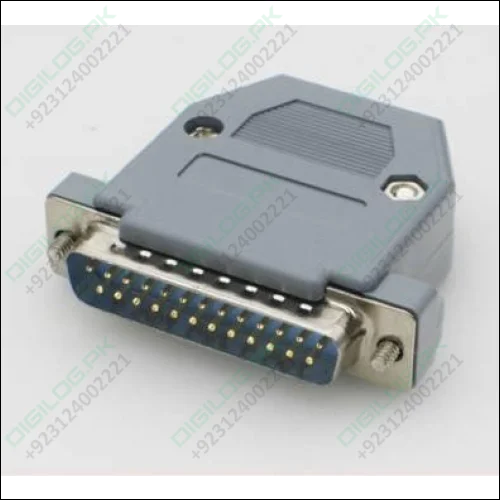

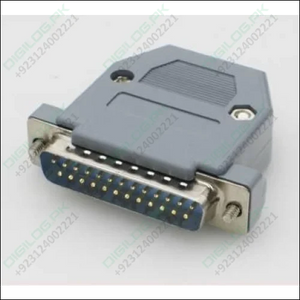

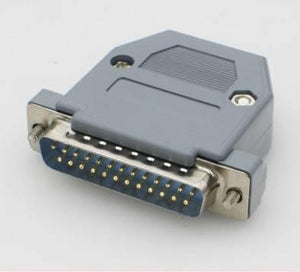

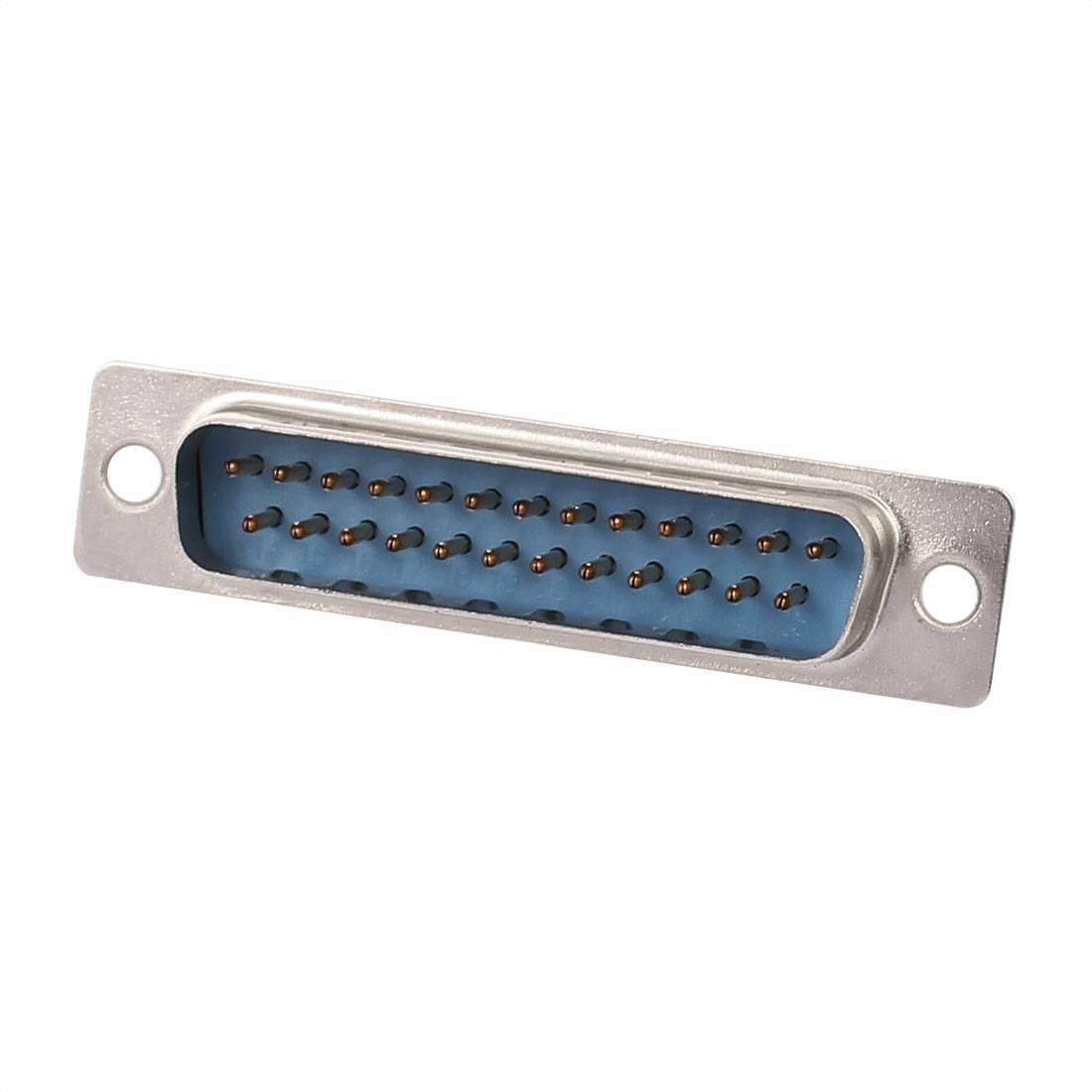

DB25 Connector 25 Pin Male Connector
The DB25 or D-subminiature or D-sub is a common type of electrical connector. DB25 are named for their characteristic D-shaped metal shield. Connector usually contains two or more parallel rows of pins or sockets surrounded by a D-shaped metal shield that provides mechanical support, ensures correct orientation, and screen against electromagnetic interference.
Specifications of DB25 Connector 25 Pin Male Connector:
| Connector Type |
DB-25 |
| Connector |
Male |
| Voltage Rating (V) |
250V AC |
| Current Rating (A) |
5 |
| Insulation Resistance |
1000MΩ min. At 500 V DC |
| Contact Resistance |
20mΩ |
| Operating Temperature Range |
-55°C to +125°C |
| Material |
Metal and plastic |
| Length (mm) |
53 |
| Width (mm) |
12 |
| Height (mm) |
15 |
| Weight (gm) |
7 (each) |
| Shipment Weight |
0.164 kg |
| Shipment Dimensions |
9 x 7 x 5 cm |
Features of DB25 Connector 25 Pin Male Connector:
- Industry standard compatibility
- Durable metal shell design
- Precision formed contacts
- Variety of Mating and mounting options
Package include:
1x DB25 Connector 25 Pin Male Connector with Plastic Cap
