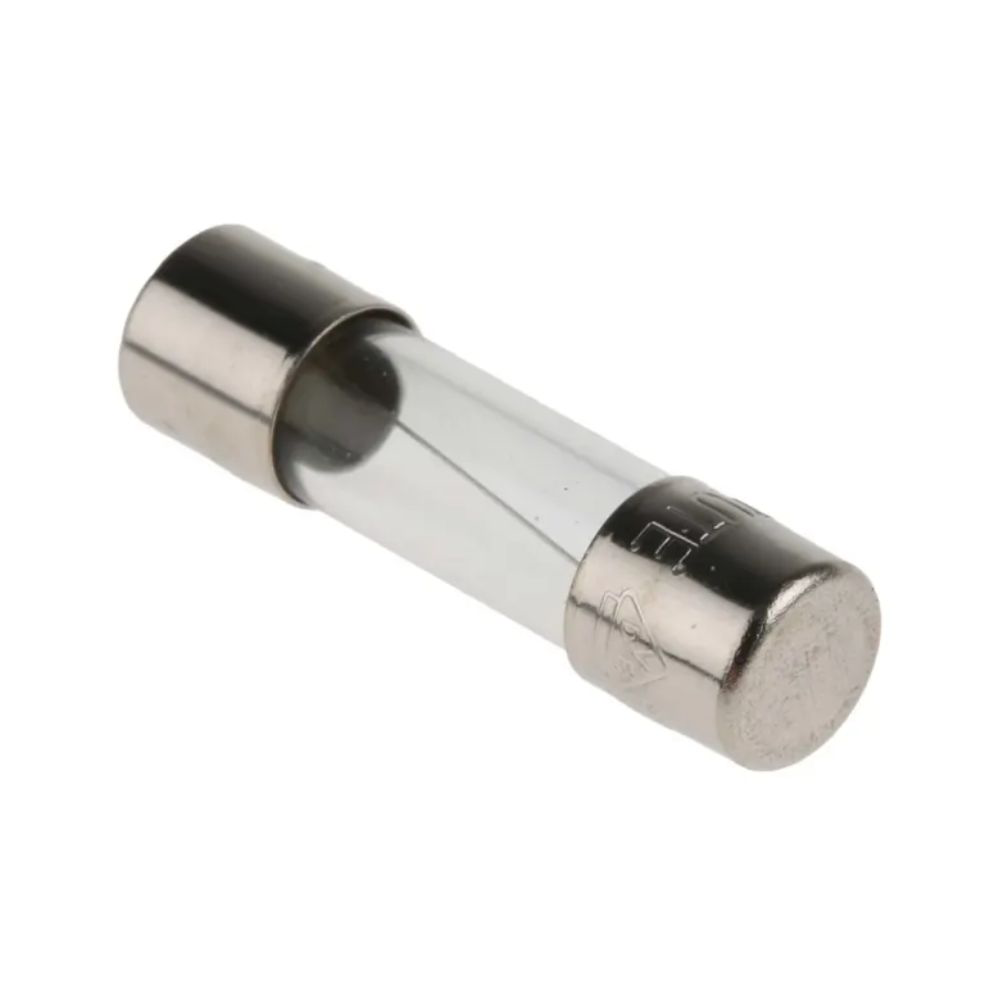

1amp 5mm x 20mm Cartridge Fuse In Pakistan

1amp 5mm x 20mm Cartridge Fuse In Pakistan

Regular price Rs 5
Regular price Sale price Rs 5
Sale Sold out
Shipping calculated at checkout.

SKU:DELL B 636

NOTIFY ME WHEN IN STOCK

NEW, UNUSED, fresh out of the box.

In electronics and electrical engineering, a fuse is an electrical safety device that operates to provide overcurrent protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby interrupting the current.

Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General Purpose fuses have no time-delay and protect fuse panels, appliances, and branch circuits.

Specifications:

Attribute Value
Current Rating 1A
Voltage Rating 250 V ac
Fuse Speed F
Fuse Size 5 x 20mm
Diameter 5mm
Overall Length 20mm
Body Material Glass
High Rupture Capacity No
Breaking Capacity at Maximum Voltage Rating 5 A
Includes Indicator No
Size Designation Miniature
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
Resistance 50.2mΩ

Typical Application:

Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps, etc. They can be found in the following areas:

  1. Industrial
  2. Commercial
  3. Home/Residential
  4. Automotive



Main Product

View full details

Description

NEW, UNUSED, fresh out of the box.

In electronics and electrical engineering, a fuse is an electrical safety device that operates to provide overcurrent protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby interrupting the current.

Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General Purpose fuses have no time-delay and protect fuse panels, appliances, and branch circuits.

Specifications:

Attribute Value
Current Rating 1A
Voltage Rating 250 V ac
Fuse Speed F
Fuse Size 5 x 20mm
Diameter 5mm
Overall Length 20mm
Body Material Glass
High Rupture Capacity No
Breaking Capacity at Maximum Voltage Rating 5 A
Includes Indicator No
Size Designation Miniature
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
Resistance 50.2mΩ

Typical Application:

Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps, etc. They can be found in the following areas:

  1. Industrial
  2. Commercial
  3. Home/Residential
  4. Automotive
