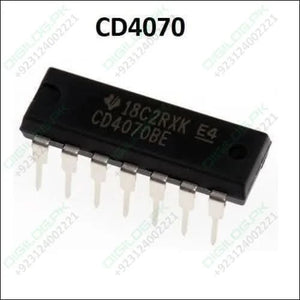

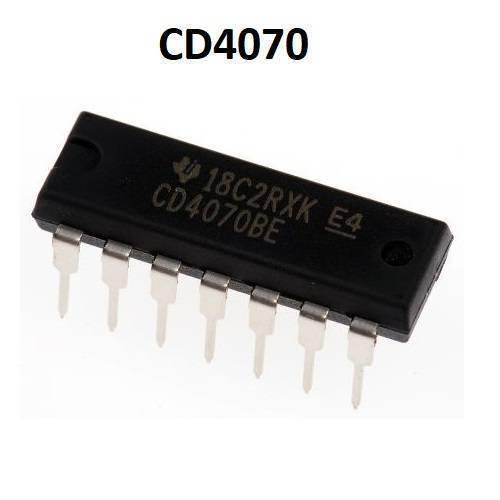

CD4070 Quad Xor Gate IC - a black rectangular integrated circuit with 14 metal pins, showing the text "CD4070BE" and "18C2RXK E4" on its top surface.

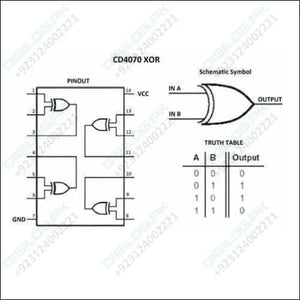

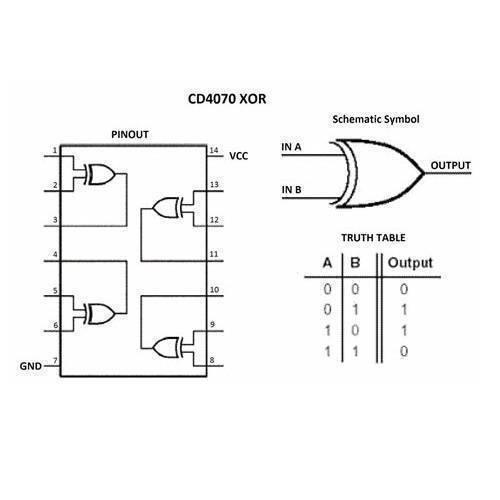

CD4070 Quad Xor Gate IC - the pinout configuration, the schematic symbol, and the truth table for the logic gate.
CD4070 Quad Xor Gate IC - a black rectangular integrated circuit with 14 metal pins, showing the text "CD4070BE" and "18C2RXK E4" on its top surface.
CD4070 Quad Xor Gate IC - the pinout configuration, the schematic symbol, and the truth table for the logic gate.

CD4070 Quad Xor Gate IC

Sale price Rs 100
SKU: b189
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

CD4070 Quad Xor Gate IC - a black rectangular integrated circuit with 14 metal pins, showing the text "CD4070BE" and "18C2RXK E4" on its top surface.

CD4070 Quad Xor Gate IC

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
CD4070 Quad Xor Gate IC - a black rectangular integrated circuit with 14 metal pins, showing the text "CD4070BE" and "18C2RXK E4" on its top surface.
CD4070 Quad Xor Gate IC
Sale priceRs 100

The CD4070 contains four independent Exclusive OR gates. The CD4070 provides the system designer with a means for the direct implementation of the Exclusive-OR. The CD4070 employs complementary MOS (CMOS) transistors to achieve wide power supply operating range, low power consumption, and high noise margin, the CD4070 Exclusive OR provide basic functions used in the implementation of digital integrated circuit systems. All inputs are protected from damage due to static discharge by diode clamps to VDD and VSS.

Features And Specifications:

  • DC Supply Voltage Range, (VDD): -0.5V to +20V
  • Input Voltage Range, All Inputs: -0.5V to VDD +0.5V
  • DC Input Current, Any One Input: 10mA
  • Storage Temperature Range: -65ºC to +150ºC
  • Mounting Type: Through Hole

CD4070 Datasheet
