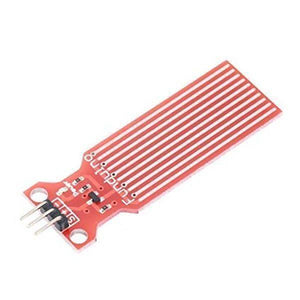

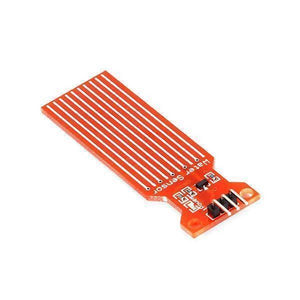

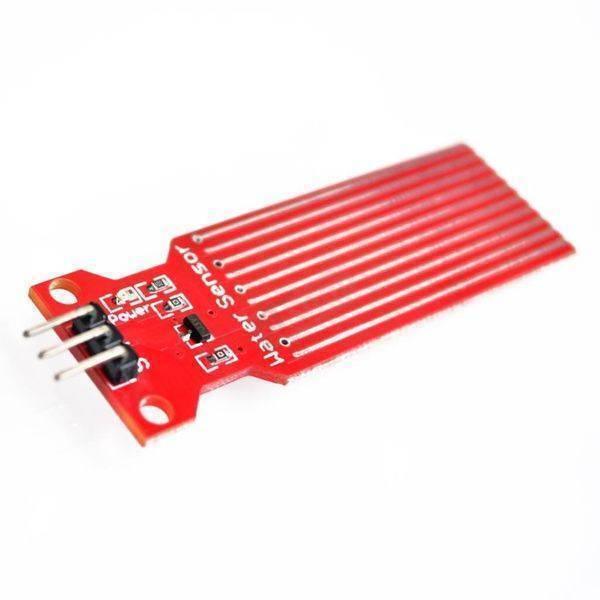

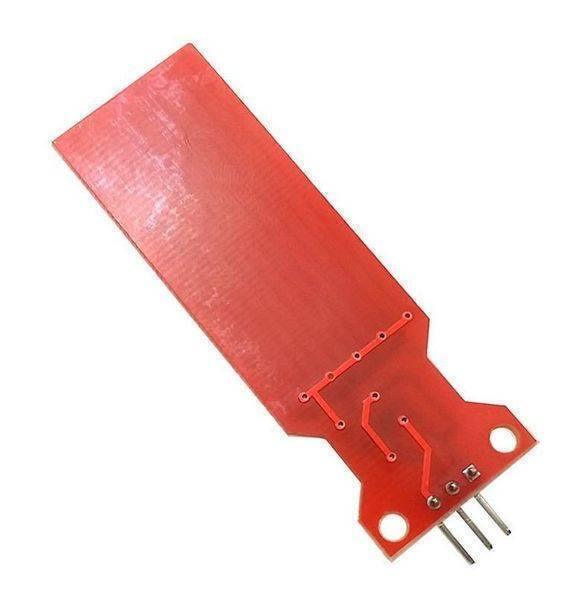

Arduino Water Level Sensor - an orange rectangular circuit board with exposed parallel conductive traces and a three-pin male header connector.
Arduino Water Level Sensor - a red rectangular circuit board with striped conductive traces and a three-pin connector at the base.
Arduino Water Level Sensor - a red rectangular circuit board with exposed conductive traces and a three-pin header connector.
Arduino Water Level Sensor - a red rectangular PCB with exposed conductive traces and three connection pins at the base.
Arduino Water Level Sensor - an orange rectangular circuit board with exposed parallel conductive traces and a three-pin male header connector.
Arduino Water Level Sensor - a red rectangular circuit board with striped conductive traces and a three-pin connector at the base.
Arduino Water Level Sensor - a red rectangular circuit board with exposed conductive traces and a three-pin header connector.
Arduino Water Level Sensor - a red rectangular PCB with exposed conductive traces and three connection pins at the base.

Arduino Water Level Sensor

Sale price Rs 80
SKU: B117,KRT51,IMP500,Th250,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

Arduino Water Level Sensor - an orange rectangular circuit board with exposed parallel conductive traces and a three-pin male header connector.
+
Rain Drops Detection Sensor Module In Paksitan - a black rectangular sensing board connected by wires to a blue control board with a potentiometer.
+
Soil Moisture Sensor For Arduino - a blue circuit board with a potentiometer connected by a red and black cable to a Y-shaped probe.
+
TTP223B Capacitive Touch Sensor Module - a square blue circuit board featuring a circular touch pad and three metal pins labeled SIG, VCC, and GND.
TTP223B Capacitive Touch Sensor Module - a square blue circuit board featuring a circular touch pad and three metal pins labeled SIG, VCC, and GND.
This item: Arduino Water Level Sensor -
Sale price Rs 80
Rain Drops Detection Sensor Module In Paksitan - a black rectangular sensing board connected by wires to a blue control board with a potentiometer.
Rain Drops Detection Sensor Module In Paksitan -
Sale price Rs 160
Soil Moisture Sensor For Arduino - a blue circuit board with a potentiometer connected by a red and black cable to a Y-shaped probe.
Soil Moisture Sensor For Arduino -
Sale price Rs 130
TTP223B Capacitive Touch Sensor Module - a square blue circuit board featuring a circular touch pad and three metal pins labeled SIG, VCC, and GND.
TTP223B Capacitive Touch Sensor Module -
Sale price Rs 110
Price for all:
Sale total price Rs 480

Pickup available at Digilog Electronics

Usually ready in 2 hours

Arduino Water Level Sensor - an orange rectangular circuit board with exposed parallel conductive traces and a three-pin male header connector.

Arduino Water Level Sensor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Arduino Water Level Sensor - an orange rectangular circuit board with exposed parallel conductive traces and a three-pin male header connector.
Arduino Water Level Sensor
Sale priceRs 80
Water Level Sensor Depth of Detection Water Sensor for Arduino has Operating voltage DC3-5V and Operating current less than 20mA. The Sensor is the Analog type which produces analog output signals according to the water pressure with its Detection Area of 40x16mm.
The Water Level Sensor is an easy-to-use and cost-effective with high level/drop recognition sensor by having a series of parallel wires exposed traces measured droplets/water volume to determine the water level. Easy to complete water to analog signal conversion and output analog values can be directly read Arduino development board to achieve the level alarm effect.

Specifications:

  1. Operating voltage: DC3-5V
  2. Operating current: less than 20mA
  3. Sensor Type: Analog
  4. Detection Area: 40mmx16mm
  5. Production process: FR4 double-sided HASL
  6. Operating temperature: 10℃-30℃ Humidity: 10% -90% non-condensing
  7. Dimensions: 60mmx20mm

Package includes:

  • 1x  Arduino Water Level Sensor

 Arduino Water Level Sensor In Pakistan

 Arduino Water Level Sensor In Pakistan
