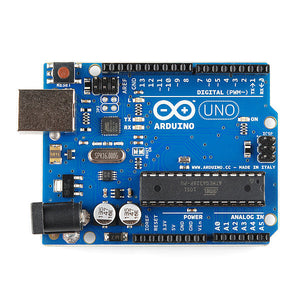

Arduino Uno R3 - board from above, showing its USB-B port, barrel power jack, ATmega328P-PU DIP chip and the digital and analog pin headers.

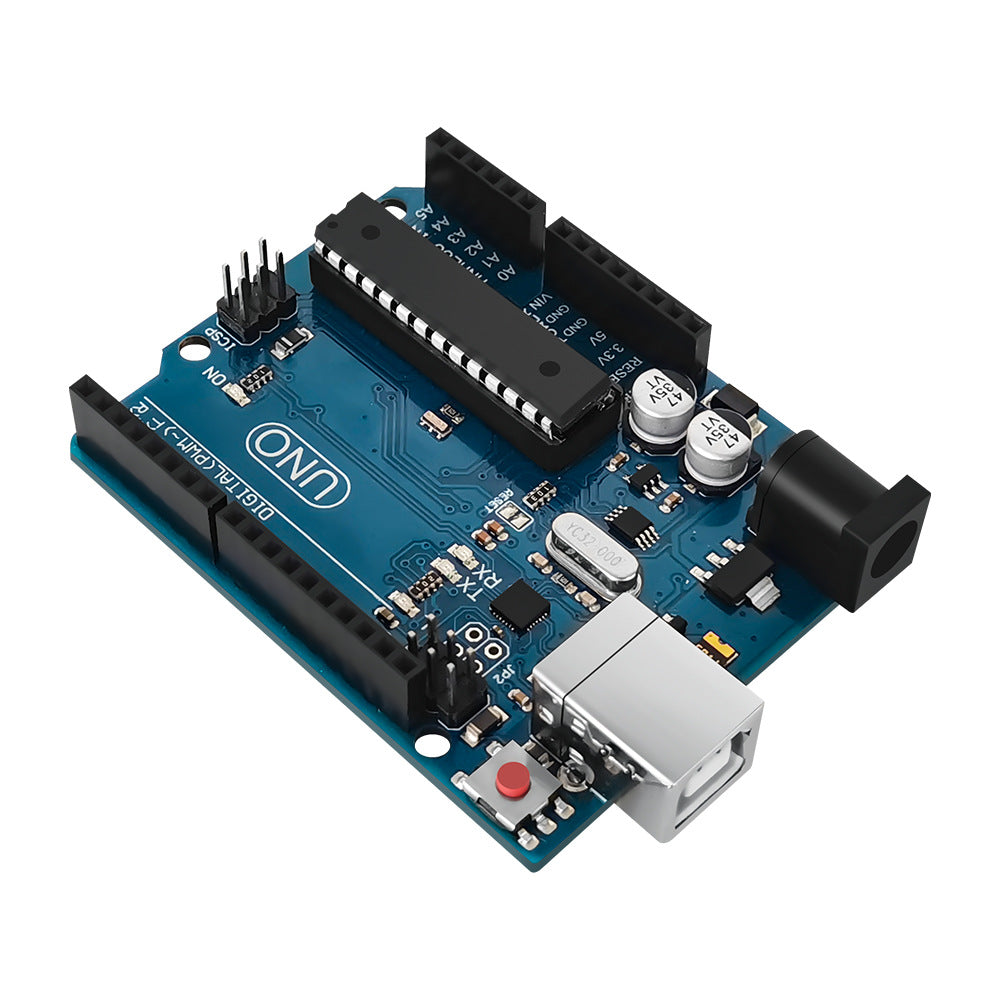

Arduino Uno R3 - a blue rectangular microcontroller board featuring a large central chip, a USB port, a power jack, and various digital and analog pins.

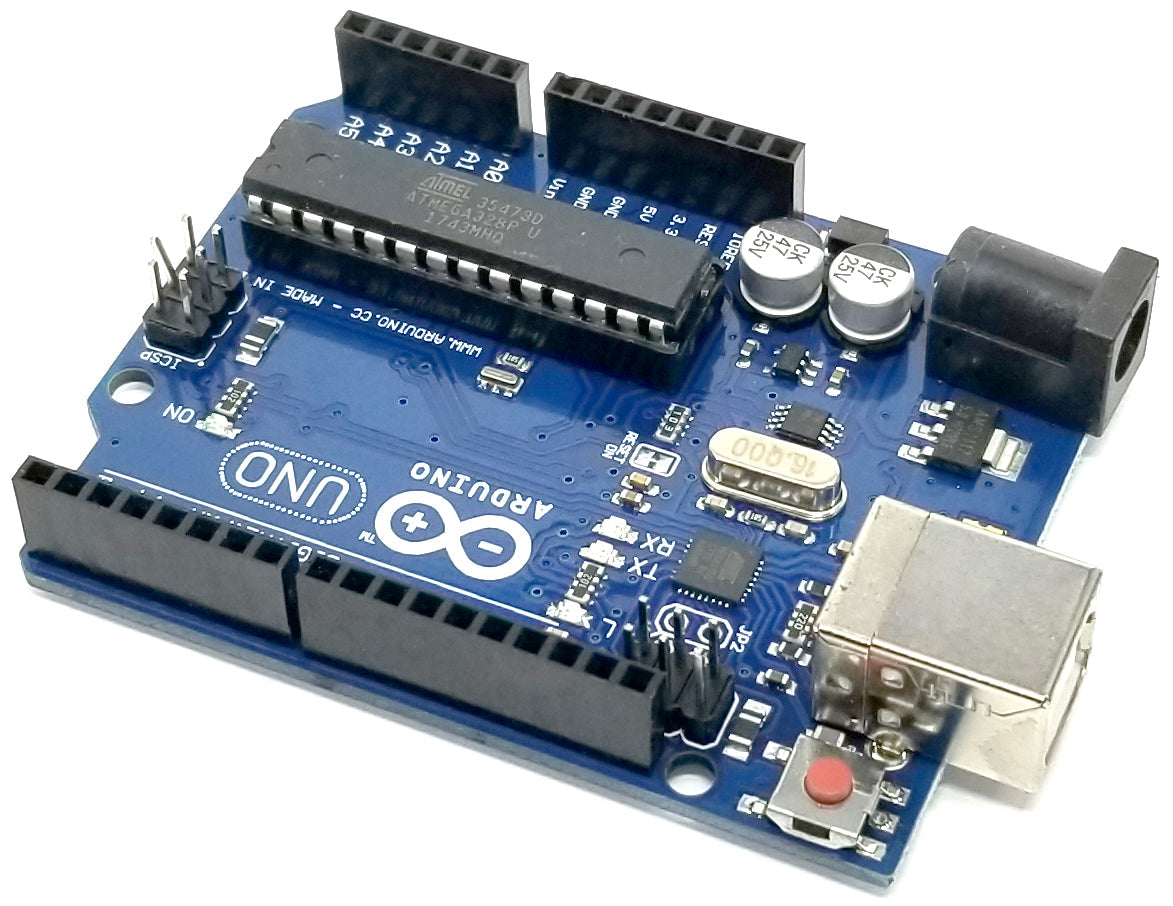

Arduino Uno R3 - a blue microcontroller board featuring a large integrated circuit chip, USB port, power jack, reset button, and pin headers.

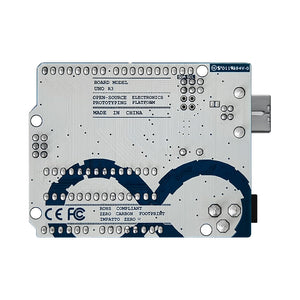

Arduino Uno R3 - the white and blue bottom side of the circuit board with a USB connector and various pin headers.

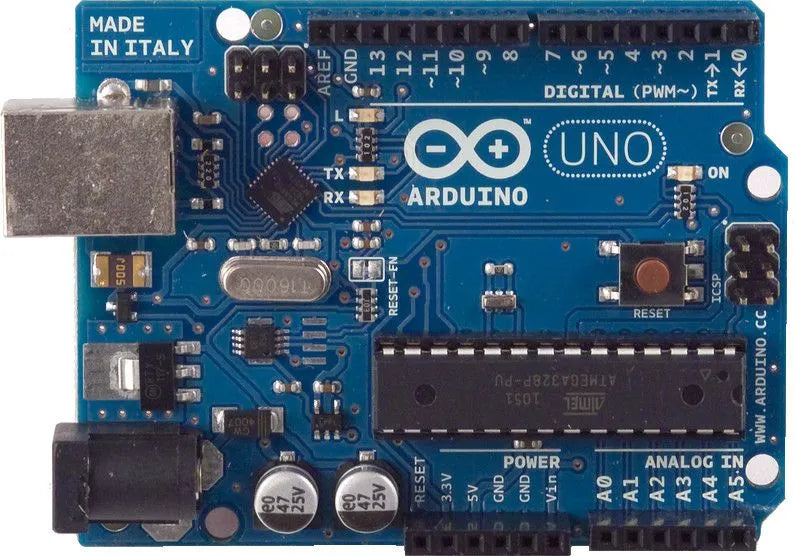

Arduino Uno R3 - a blue circuit board with a black microcontroller, USB port, power jack, reset button, and pin headers.

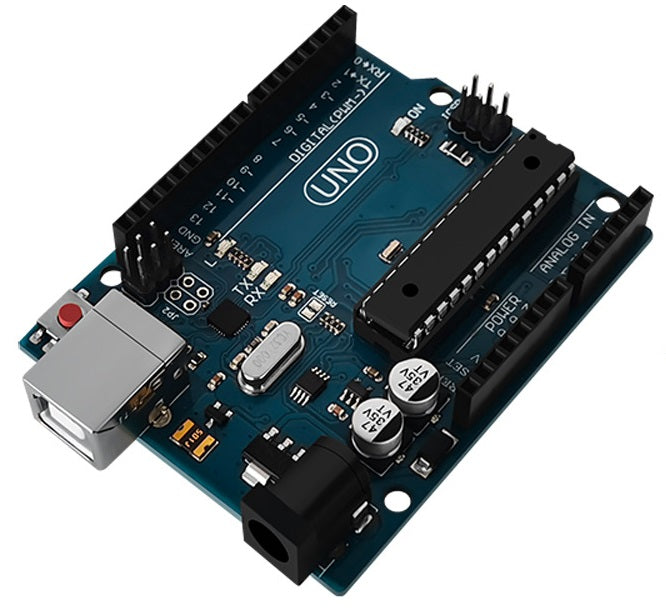

Arduino Uno R3 - a blue rectangular microcontroller board with a USB port, power jack, reset button, and various pin headers on a white background.

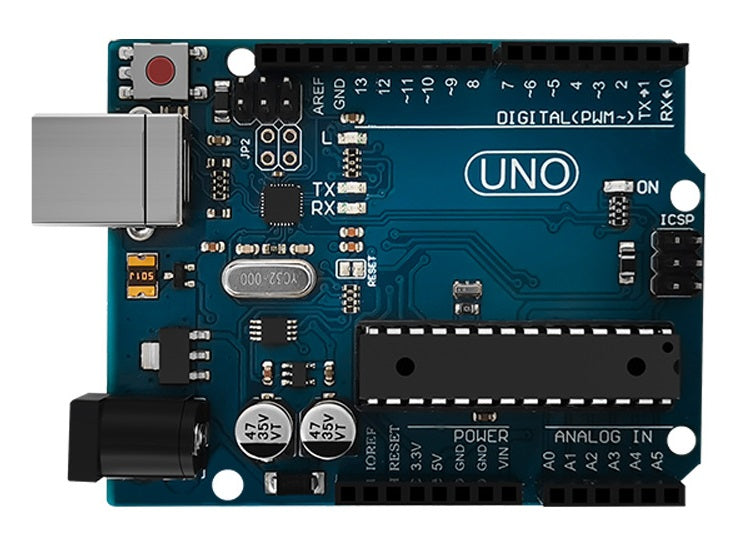

Arduino Uno R3 - a blue microcontroller board with a USB port, power jack, analog and digital pin headers, and a black integrated circuit.

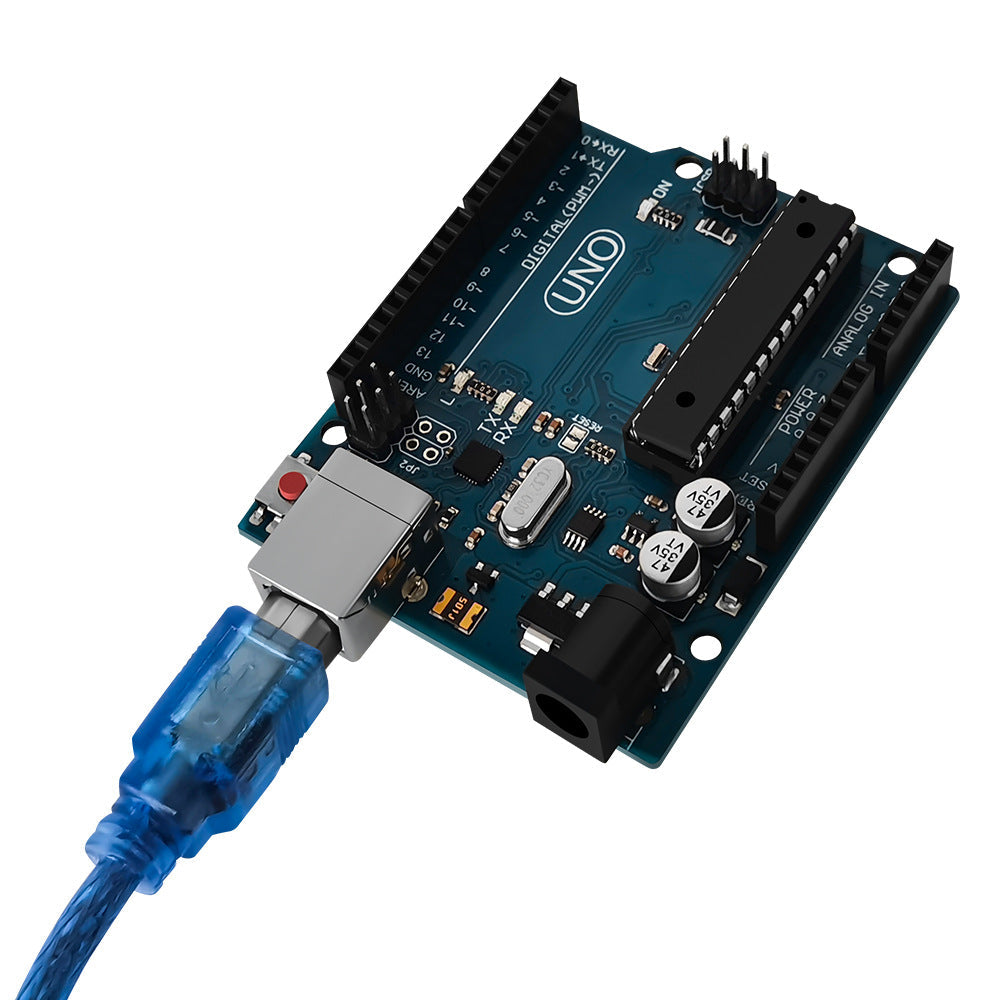

Arduino Uno R3 - a blue circuit board with a USB cable connected to the port, featuring digital and analog pin headers and a power jack.
-8%
Arduino Uno R3 - board from above, showing its USB-B port, barrel power jack, ATmega328P-PU DIP chip and the digital and analog pin headers.
Arduino Uno R3 - a blue rectangular microcontroller board featuring a large central chip, a USB port, a power jack, and various digital and analog pins.
Arduino Uno R3 - a blue microcontroller board featuring a large integrated circuit chip, USB port, power jack, reset button, and pin headers.
Arduino Uno R3 - the white and blue bottom side of the circuit board with a USB connector and various pin headers.
Arduino Uno R3 - a blue circuit board with a black microcontroller, USB port, power jack, reset button, and pin headers.
Arduino Uno R3 - a blue rectangular microcontroller board with a USB port, power jack, reset button, and various pin headers on a white background.
Arduino Uno R3 - a blue microcontroller board with a USB port, power jack, analog and digital pin headers, and a black integrated circuit.
Arduino Uno R3 - a blue circuit board with a USB cable connected to the port, featuring digital and analog pin headers and a power jack.

Arduino Uno R3

Regular price Rs 1,300 Sale price Rs 1,200
SKU: B527,Krt118,krt207
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

Arduino Uno R3 - board from above, showing its USB-B port, barrel power jack, ATmega328P-PU DIP chip and the digital and analog pin headers.
+
USB Cable For Arduino Uno Arduino Mega - a coiled blue USB cable with a standard USB-A connector on one end and a USB-B connector on the other.
+
L293 L293D Motor Driver Module Arduino Motor Driver Shield - a blue rectangular circuit board featuring three integrated circuits, blue screw terminals, a reset button, and a yellow jumper.
+
HC-SR04 Hc SR04 Arduino Ultrasonic Sensor - a blue rectangular module with two circular silver transducers and a four-pin header labeled VCC, Trig, Echo, and Gnd.
HC-SR04 Hc SR04 Arduino Ultrasonic Sensor - a blue rectangular module with two circular silver transducers and a four-pin header labeled VCC, Trig, Echo, and Gnd.
This item: Arduino Uno R3 -
Regular price Rs 1,300 Sale price Rs 1,200
USB Cable For Arduino Uno Arduino Mega - a coiled blue USB cable with a standard USB-A connector on one end and a USB-B connector on the other.
USB Cable For Arduino Uno Arduino Mega -
Sale price Rs 130
L293 L293D Motor Driver Module Arduino Motor Driver Shield - a blue rectangular circuit board featuring three integrated circuits, blue screw terminals, a reset button, and a yellow jumper.
L293 L293D Motor Driver Module Arduino Motor Driver Shield -
Sale price Rs 410
HC-SR04 Hc SR04 Arduino Ultrasonic Sensor - a blue rectangular module with two circular silver transducers and a four-pin header labeled VCC, Trig, Echo, and Gnd.
HC-SR04 Hc SR04 Arduino Ultrasonic Sensor -
Sale price Rs 210
Price for all:
Regular total price Rs 2,050 Sale total price Rs 1,950

Pickup available at Digilog Electronics

Usually ready in 2 hours

Arduino Uno R3 - board from above, showing its USB-B port, barrel power jack, ATmega328P-PU DIP chip and the digital and analog pin headers.

Arduino Uno R3

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
Arduino Uno R3 - board from above, showing its USB-B port, barrel power jack, ATmega328P-PU DIP chip and the digital and analog pin headers.
Arduino Uno R3
Regular price Rs 1,300 Sale priceRs 1,200

Arduino Uno R3 is a microcontroller-based development board. Arduino UNO and other boards can read inputs – light on a sensor, a finger on a button, or a Twitter message – and turn it into an output – activating a motor, turning on an LED, publishing something online by utilizing this R3 kit. You can tell your Arduino UNO r3 what to do by sending a set of instructions to the microcontroller on the board. To do so you use the Arduino programming language (based on Wiring), and the Arduino Software (IDE), based on Processing.

This kit is a microcontroller board based on the ATmega328P (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz quartz crystal, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. You can tinker with your UNO without worrying too much about doing something wrong, in the worst-case scenario you can replace the chip for a few dollars and start over again.

Need Help?

Specifications Of Arduino Uno:

  • Microcontroller ATmega328 DIP
  • Operating Voltage 5V
  • Input Voltage (recommended) 7-9V
  • Input Voltage (limits) 6-20V
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • Analog Input Pins 6
  • DC Current per I/O Pin 40 mA
  • DC Current for 3.3V Pin 150 mA
  • Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM
  • 2 KB (ATmega328) EEPROM
  • 1 KB (ATmega328)
  • Clock Speed 16 MHz

Best Online Shopping website for Arduino. Here you get Arduino UNO R3 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad, and all over Pakistan.
