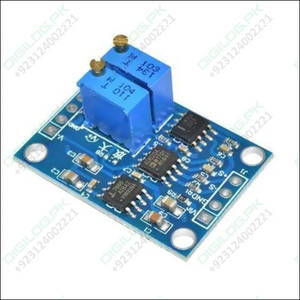

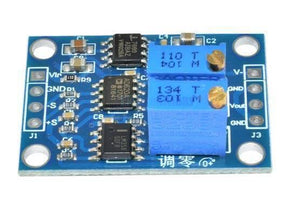

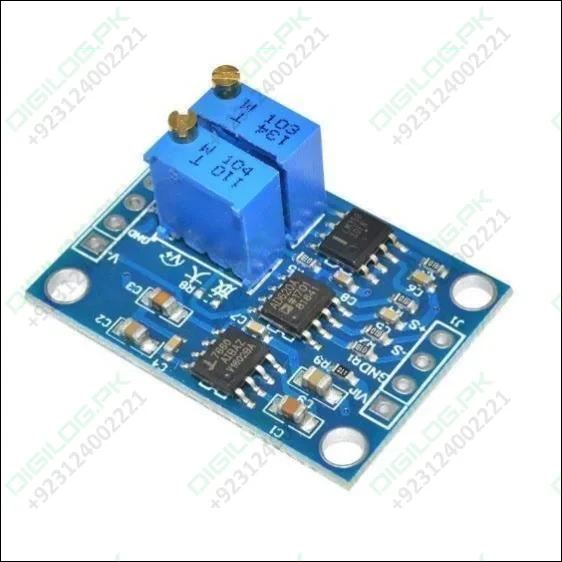

AD620 Instrumentation Amplifier Module - a blue rectangular circuit board with three integrated circuits, two blue potentiometers, and side pin headers.

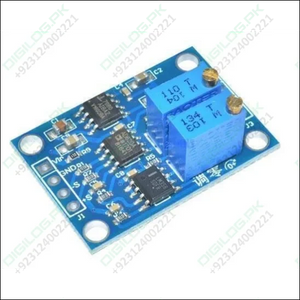

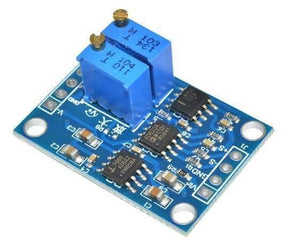

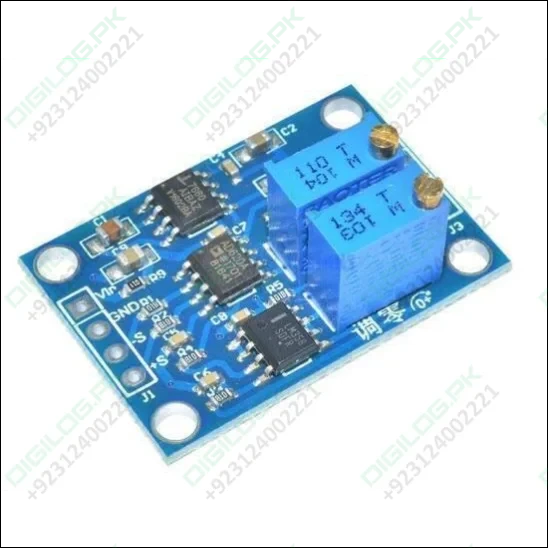

AD620 Instrumentation Amplifier Module - a blue rectangular circuit board featuring two blue potentiometers, three integrated circuits, and pin headers.

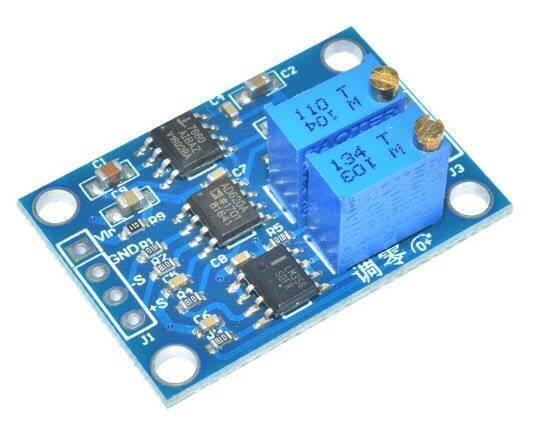

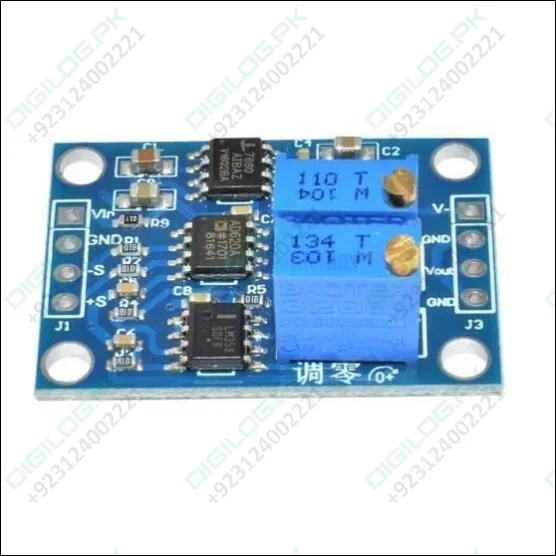

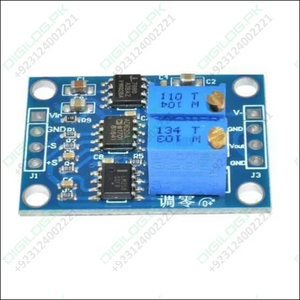

AD620 Instrumentation Amplifier Module - a blue rectangular circuit board featuring two blue potentiometers, an AD620 chip, and a five-pin header.

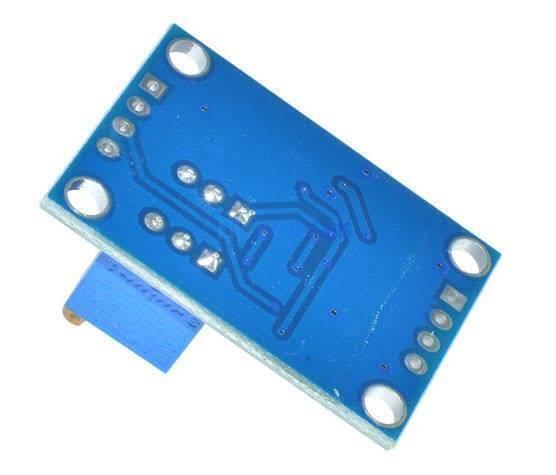

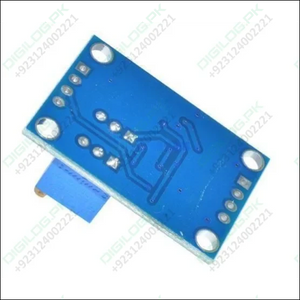

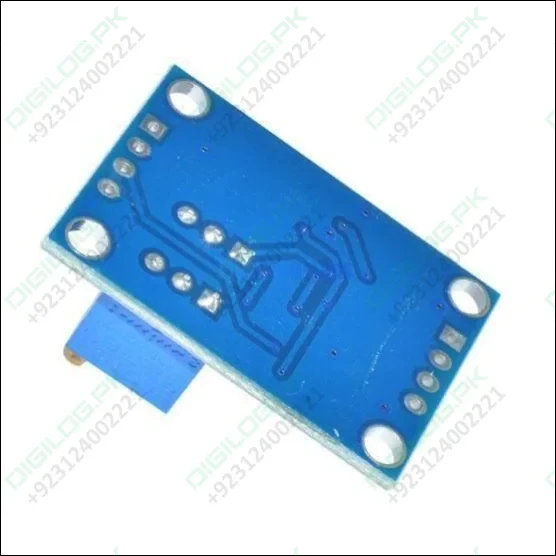

AD620 Instrumentation Amplifier Module - the blue rectangular circuit board from the underside with a blue potentiometer and pin headers.
AD620 Instrumentation Amplifier Module - a blue rectangular circuit board with three integrated circuits, two blue potentiometers, and side pin headers.
AD620 Instrumentation Amplifier Module - a blue rectangular circuit board featuring two blue potentiometers, three integrated circuits, and pin headers.
AD620 Instrumentation Amplifier Module - a blue rectangular circuit board featuring two blue potentiometers, an AD620 chip, and a five-pin header.
AD620 Instrumentation Amplifier Module - the blue rectangular circuit board from the underside with a blue potentiometer and pin headers.

AD620 Instrumentation Amplifier Module

Sale price Rs 760
SKU: B2,krt16,IMP10,Th5,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

AD620 Instrumentation Amplifier Module - a blue rectangular circuit board with three integrated circuits, two blue potentiometers, and side pin headers.
+
Cjmcu-29 INA129 High Precision Low Power Instrumentation Amplifier Module - a purple circuit board with an integrated chip, a potentiometer, and a separate six-pin header connector.
+
Buy ADS1115 16 Bit ADC 4 Channel With Programmable Gain Amplifier - a blue rectangular circuit board with ten labeled pin holes and a separate ten-pin header strip positioned below it.
+
Ecg Electrodes With Metal Snap And Low Impedance Solid Medical Conductive Gel - two circular white adhesive pads with a central metallic snap connector on one and a conductive gel center on the other.
Ecg Electrodes With Metal Snap And Low Impedance Solid Medical Conductive Gel - two circular white adhesive pads with a central metallic snap connector on one and a conductive gel center on the other.
This item: AD620 Instrumentation Amplifier Module -
Sale price Rs 760
Cjmcu-29 INA129 High Precision Low Power Instrumentation Amplifier Module - a purple circuit board with an integrated chip, a potentiometer, and a separate six-pin header connector.
Cjmcu-29 INA129 High Precision Low Power Instrumentation Amplifier Module -
Sale price Rs 760
Buy ADS1115 16 Bit ADC 4 Channel With Programmable Gain Amplifier - a blue rectangular circuit board with ten labeled pin holes and a separate ten-pin header strip positioned below it.
Buy ADS1115 16 Bit ADC 4 Channel With Programmable Gain Amplifier -
Sale price Rs 810
Ecg Electrodes With Metal Snap And Low Impedance Solid Medical Conductive Gel - two circular white adhesive pads with a central metallic snap connector on one and a conductive gel center on the other.
Ecg Electrodes With Metal Snap And Low Impedance Solid Medical Conductive Gel -
Sale price Rs 40
Price for all:
Sale total price Rs 2,370

Pickup available at Digilog Electronics

Usually ready in 2 hours

AD620 Instrumentation Amplifier Module - a blue rectangular circuit board with three integrated circuits, two blue potentiometers, and side pin headers.

AD620 Instrumentation Amplifier Module

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
AD620 Instrumentation Amplifier Module - a blue rectangular circuit board with three integrated circuits, two blue potentiometers, and side pin headers.
AD620 Instrumentation Amplifier Module
Sale priceRs 760
High precision UV / mV voltage AMPLIFIER precision signal amplifier small signal transmitter AD620 Using AD620 as the main amplifier, you can amplify the voltage UV, mV. Increase 1,5-10000, adjustable. High precision, low displacement, better linearity. Adjustable zero to improve accuracy. It can be used for AC, DC signal amplification. Use of the module, need to have some electronic basis, if there is no basis for customers, purchase carefully, purchase to provide technical support.

Features:

  1. wide range of supply voltage, the AD620 amplification of this product can be amplified to microvolts, millivolts, compared to the LM358 amplification accuracy, better linearity, the maximum voltage output range of ± 10V.
  2.  Increasing range, an increase of up to 1000 ti2mes, only through a potentiometer can be adjusted.
  3.  Adjustable zero through the zero potentiometers to adjust the zero, improve the accuracy, there will be no zero drift phenomenon to meet the customer's needs.
  4.  a negative voltage output, the module uses a negative chip output voltage of 7660A (-entry), can be provided to the customer to drive another dual-energy charge.
  5.  Mini type, 32 * 22mm size, evenly distributed around the four 3mm positioning holes, both sides of the standard 2.54mm pitch port.

Parameters:

  • Input voltage: 3-12 VDC. (Buying in bulk can be customized)
  • Increase: 1.5-1000 times adjustable, zero adjustable
  • Signal input voltage: 100uV-300mV
  • Signal output range: ± (Vin-2V)
  • Negative voltage output: greater than the input. As the problem of the output resistance of the negative voltage chip, the actual output is higher than the input, the higher the load power, the higher the negative voltage drop.
  • Displacement voltage: 50μV.
  • Input bias current: 1.0nA (max.).
  • Common mode rejection ratio: 100 dB
  • Travel voltage deviation: 0.6 μV / ° (maximum).
  • Stability: 2μV / month maximum

Package Include:

1XAD620 Micro volt Millivolt Transmitter Voltage Amplifier Small Signal Instrumentation
