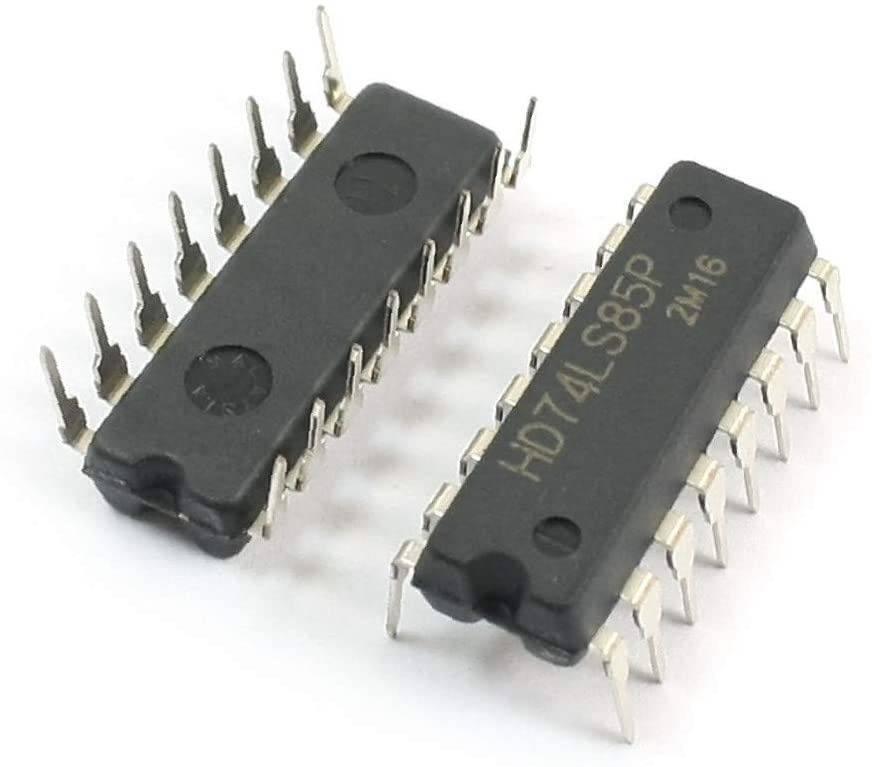

7485 Ic

74HC85 4-Bit Comparator IC (7485 IC) DIP-16 Package. 74LS85 is the four-bit magnitude comparators perform comparison of straight binary and straight BCD (8-4-2-1) codes. Three fully decoded decisions about two 4-bit words (A, B) are made and are externally available at three outputs. These devices are fully expandable to any number of bits without external gates.

Specification:

• Magnitude Comparator logical function
• Output function A<B, A=B, A>B
• 4bit bitness
• Number of pin 16
• Maximum operating supply voltage 5.25 V
• Dimension: 18.5mmx8mmx7mm

Packing list:

• 1x IC 74LS85 4 Bit Magnitude Comparator DIP 16

Attachment:

• Datasheet
