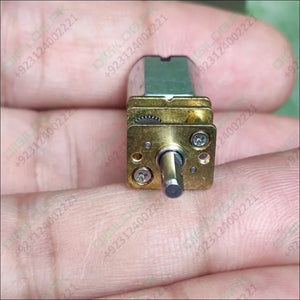

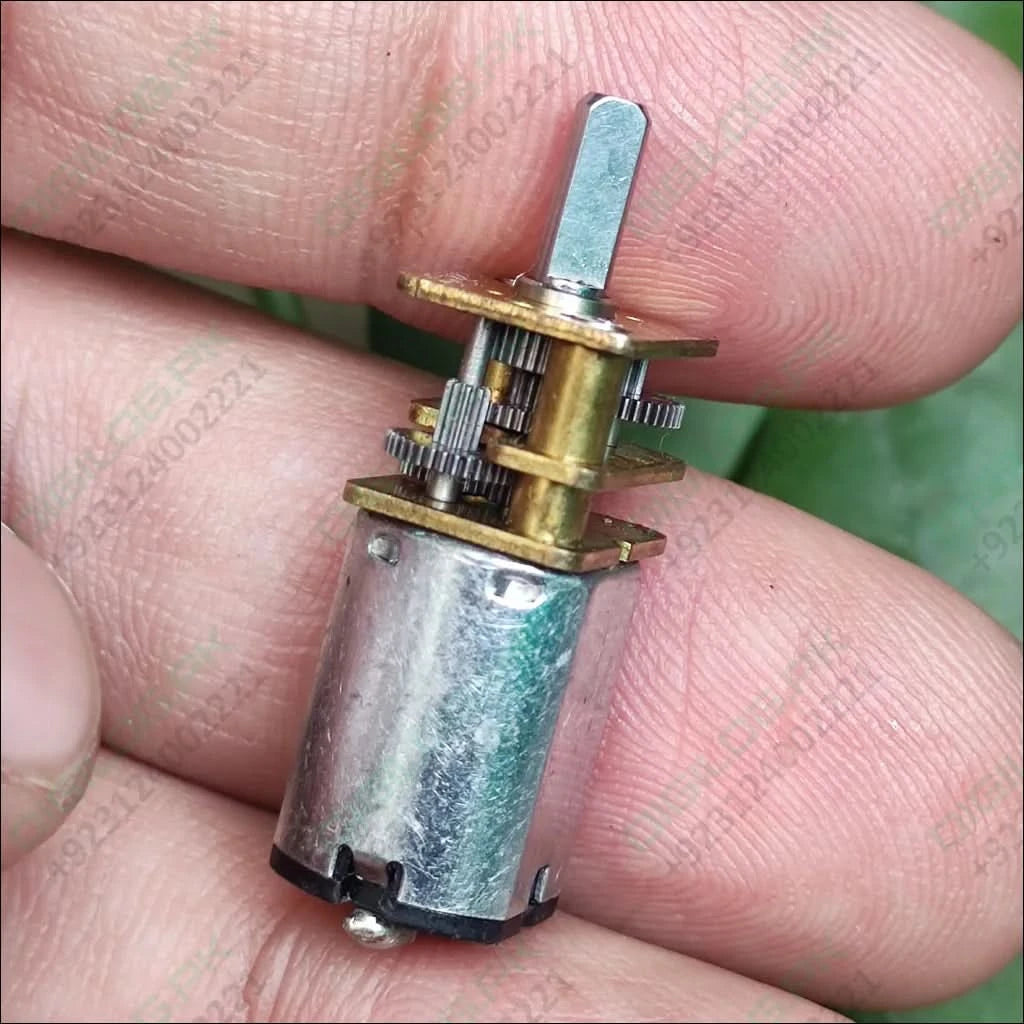

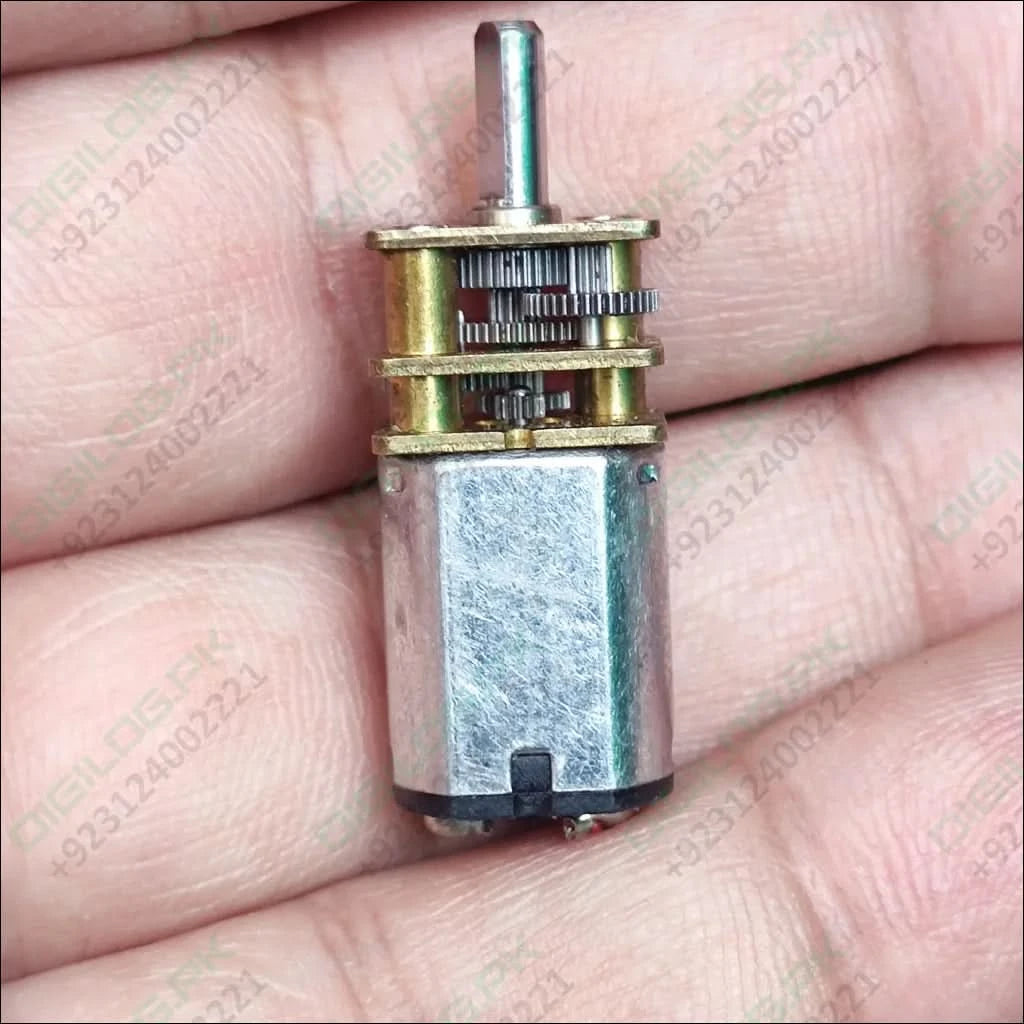

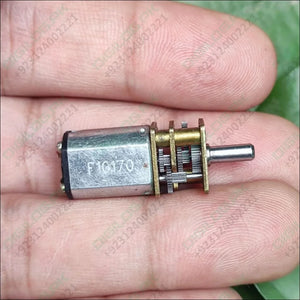

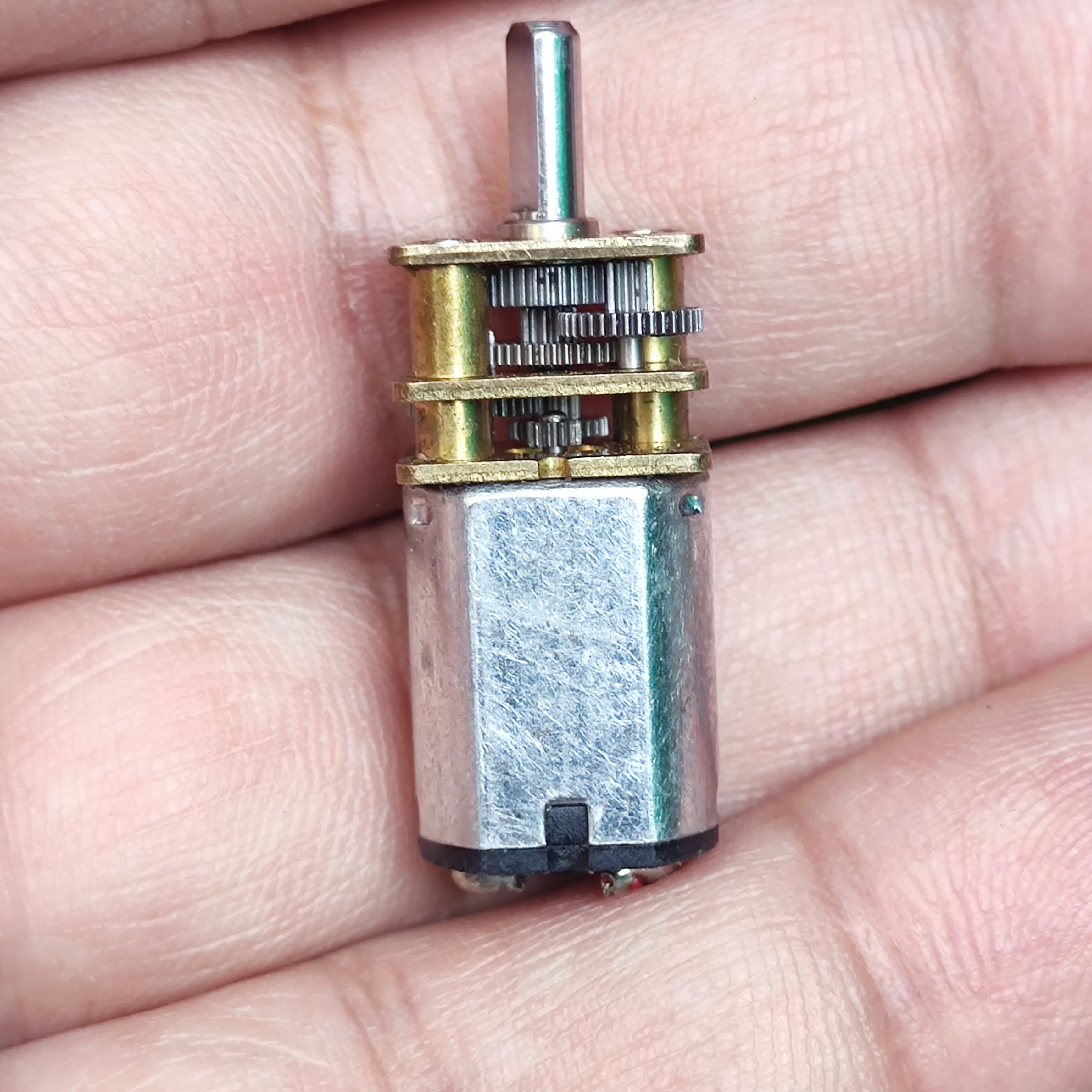

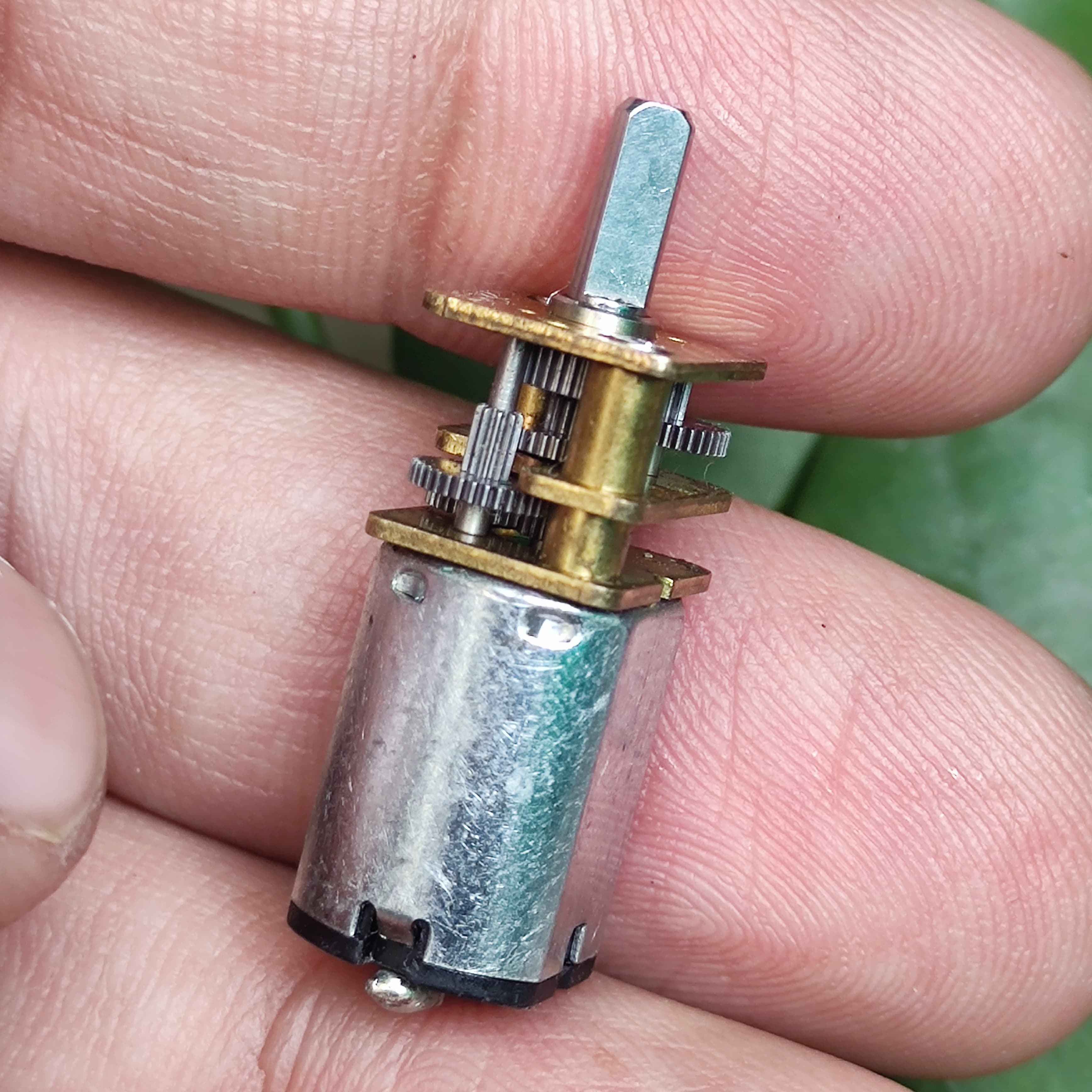

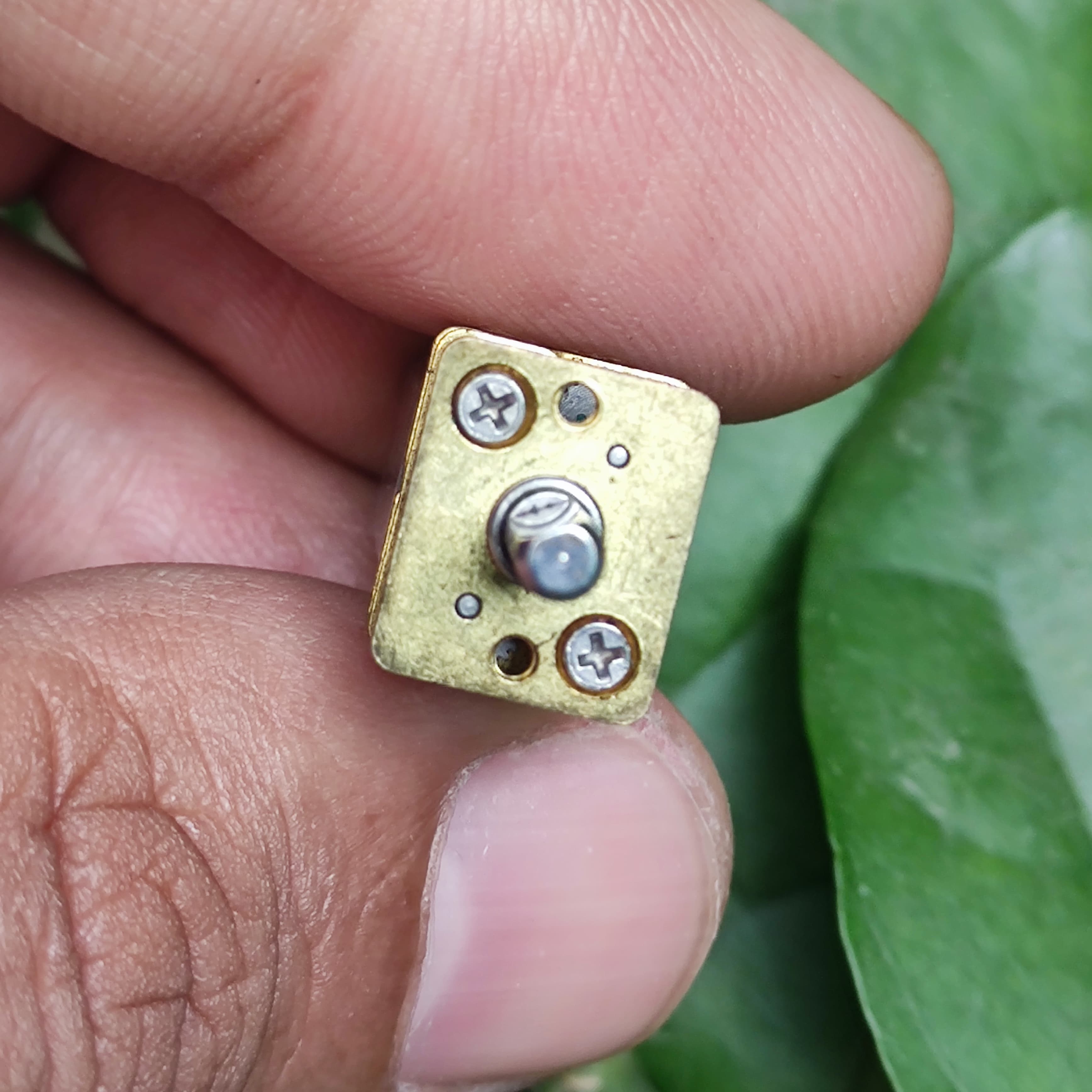

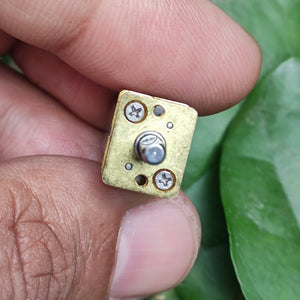

This 68RPM N20 DC Gear Motor is designed for high torque motor the planetary gearbox configuration provides the highest efficiency and best output torque of all our speed reducers. DC motors combined with planetary gear reducers are ideal for Arduino robots and diy projects.

Specification:

• Motor size: 10*12 (N20 motor)
• Out Shaft diameter: 2.95mm  (flat position: 2.45mm)
• Shaft length: 8mm
• Weight: 10g
• Rated load : 200 g.cm
• Working temperature: -10 degrees - 65 degrees
• Motor mounting position: horizontal or vertical
• Reduction ratio : 1:298
• Rated voltage: DC 5V
• Rated current : 36 MA
• Rated load speed: 50RPM
• Stall torque: 1 KG.cm
• Operating voltage range : DC3V-6V

 -------------------------------
Test data:

• Voltage: 3.0V
• No-load current: 28mA
• No-load speed: 34RPM
•  -------------------------------
• Voltage: 4.2V
• No-load current: 28mA
• No-load speed: 48RPM
•  -------------------------------
• Voltage: 6.0V
• No-load current: 38mA
• No-load speed: 68RPM
•  -------------------------------

Package Include:

• 1PCS * N20 Gear Motor

This Image is only for dimensions.
