4000w Ac Scr Voltage Regulator – 0-220v Motor Speed Controller With Temperature Protection
Guaranteed Safe Checkout
4000w Ac Scr Voltage Regulator – 0-220v Motor Speed Controller With Temperature Protection

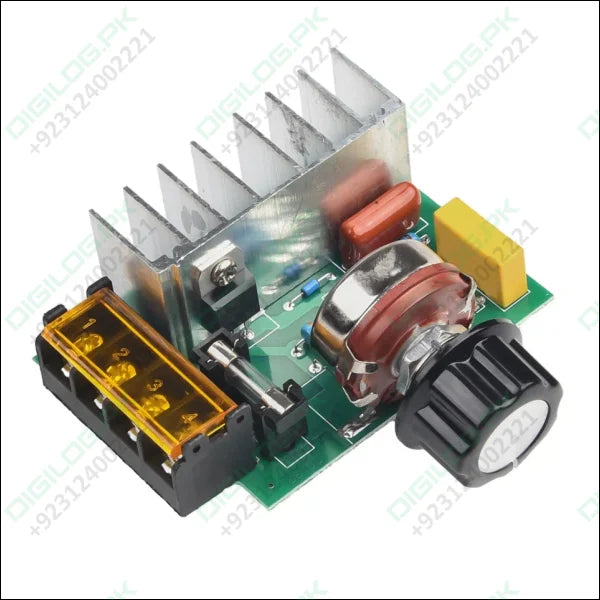

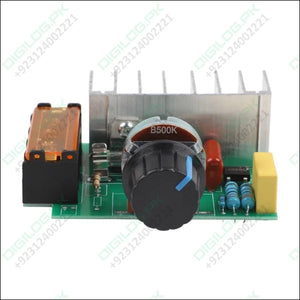

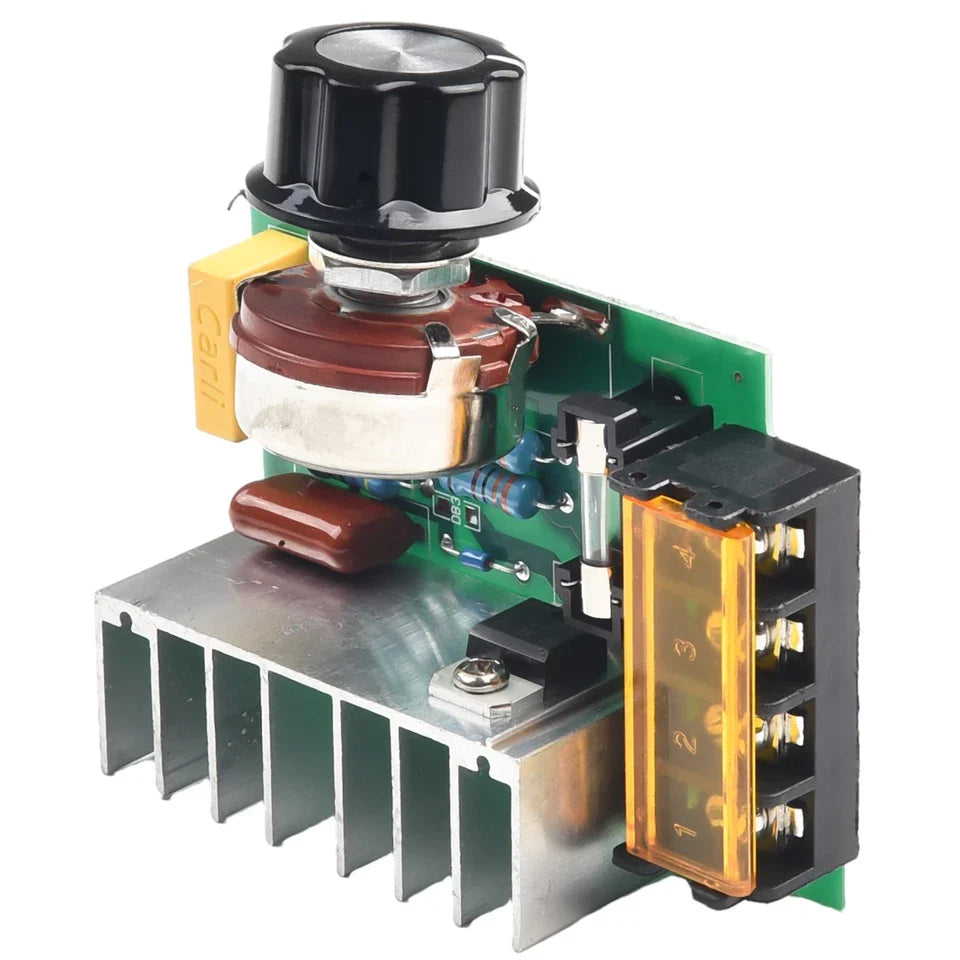

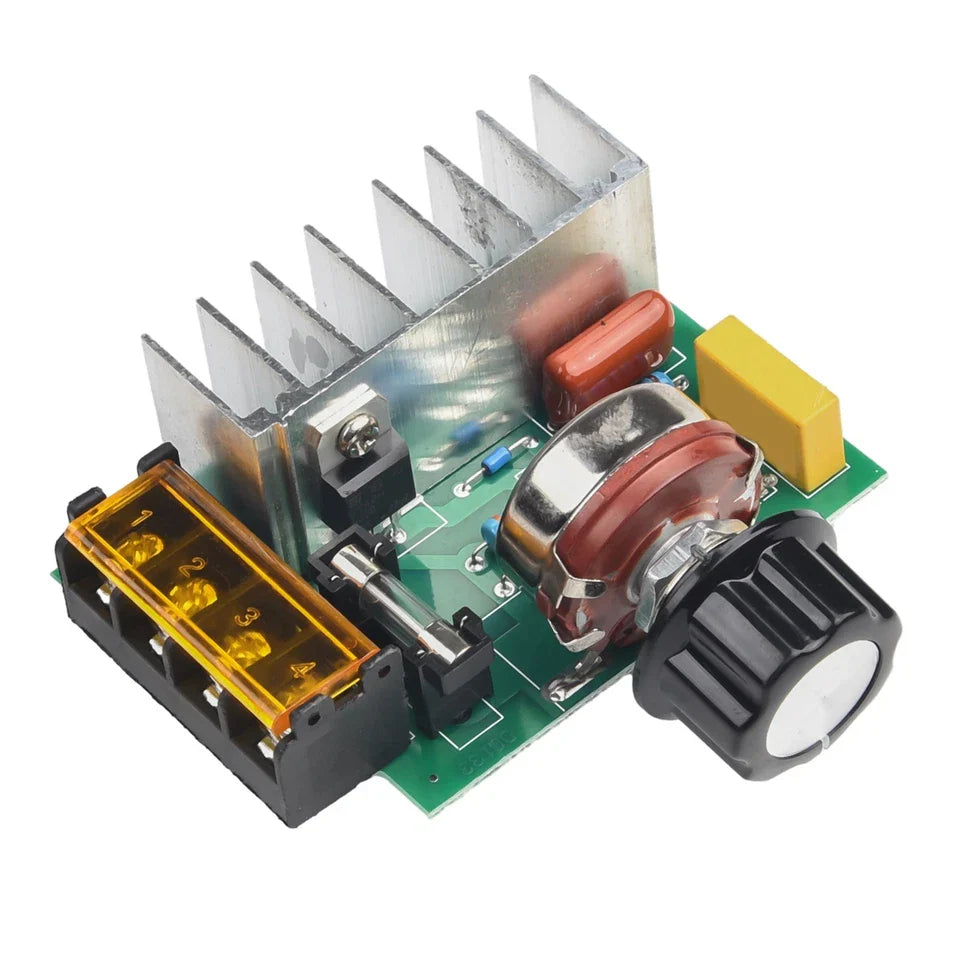

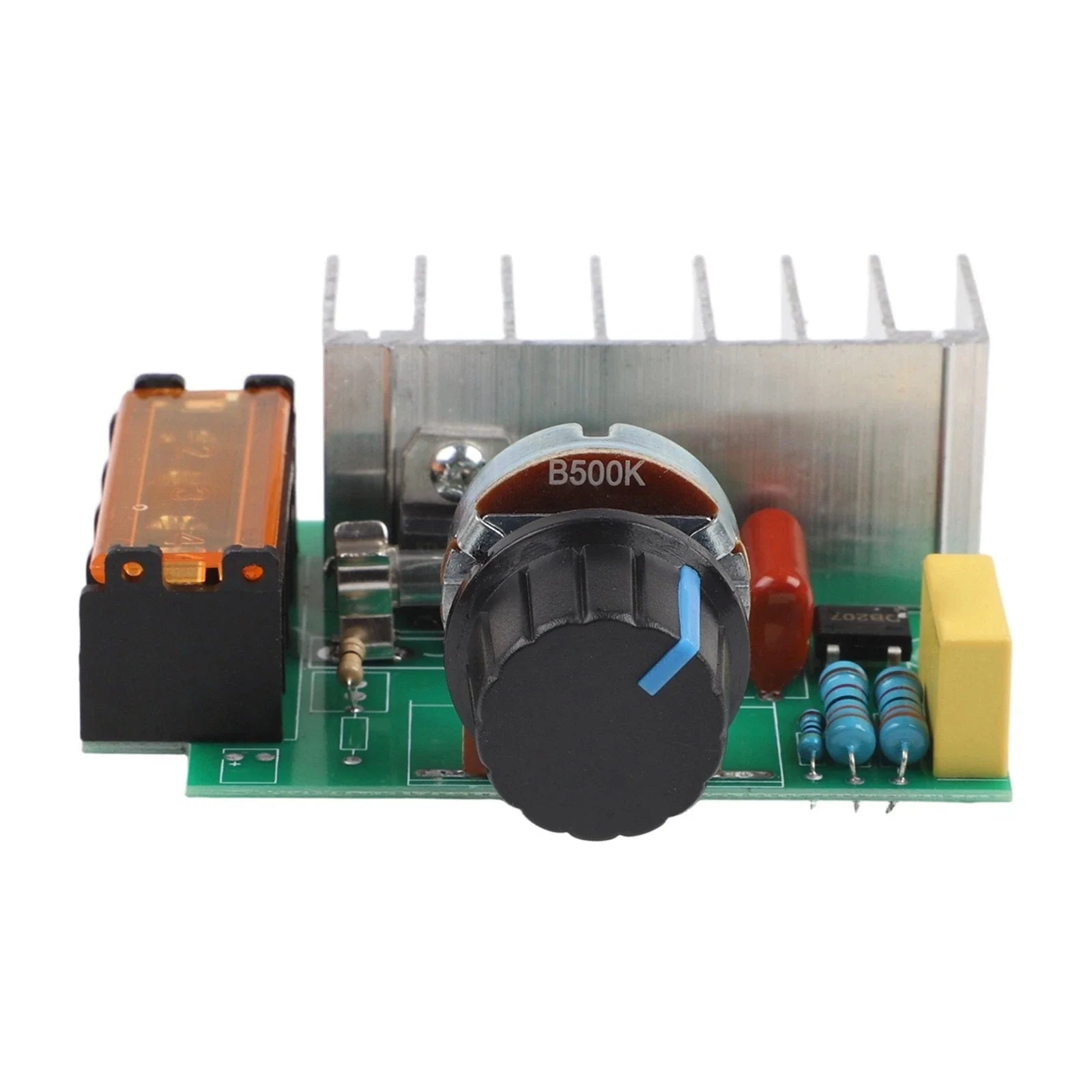

4000W 0-220V AC SCR Electric Voltage Regulator Motor Speed Controller with Temperature Protection
The 4000W AC SCR Electric Voltage Regulator is a high-power, compact, and efficient device designed to manage and adjust the voltage supply to AC brush motors and other resistive loads. With a wide voltage regulation range from 0 to 220V AC, it’s ideal for use in electric furnaces, heating elements, lamps, small motors, and various industrial appliances. Its IP53-rated enclosure offers protection in dusty and humid environments, and the unit is built with high-quality FR-4 circuit boards and semiconductor-controlled silicon components to ensure durability and safe operation.
Key Features
- Power Output: Supports up to 4000W (resistive load)
- Voltage Regulation: 0–220V AC, starts from 10V
- Efficiency: Greater than 90%
- Build: High-quality semiconductor components and FR-4 circuit board
- Cooling Requirement: No cooling required below 10A; cooling fan recommended above 10A
- Temperature Insurance: Built-in thermal protection
- IP Rating: IP53 (suitable for moderate dust and humidity)
- Knob Hole Diameter: 6mm
- Compact Size: 85 x 55 x 38 mm
Specifications
- Model: ET965
- Brand: EZONEDE
- Operating Voltage: AC 220V
- Rated Voltage: AC 0–220V
- Material: Semiconductor silicon controlled
- Condition: Brand New
- Smart Feature: Yes
Applications
- AC motor speed control
- Electric furnaces and irons
- Lighting dimmer for lamps
- Temperature regulation in heaters
- Home appliance voltage control
How to Use
- Connect the regulator to your AC circuit or appliance.
- Turn the control knob to adjust output voltage for dimming, heating, or speed control.
- Ensure cooling fan is installed for continuous operation over 10A load.
FAQs
Q: Can I use this to control an AC fan speed?
Yes, it is suitable for AC brush-type motors such as fans. Not suitable for AC induction motors.
Q: Does it include a cooling fan?
No, cooling fan must be installed separately if load exceeds 10 amps for prolonged use.
Q: Can I use this with LED lamps?
It is not ideal for LED lighting as LEDs require constant current drivers. It works best with resistive loads.
Package Includes
- 1 x 4000W AC SCR Voltage Regulator
