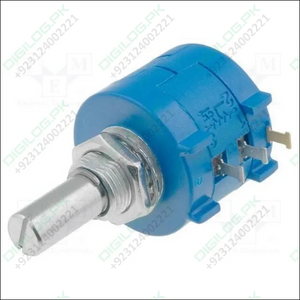

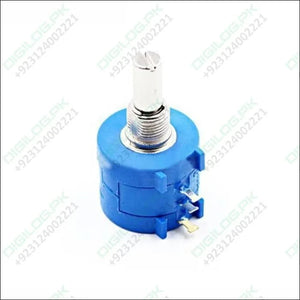

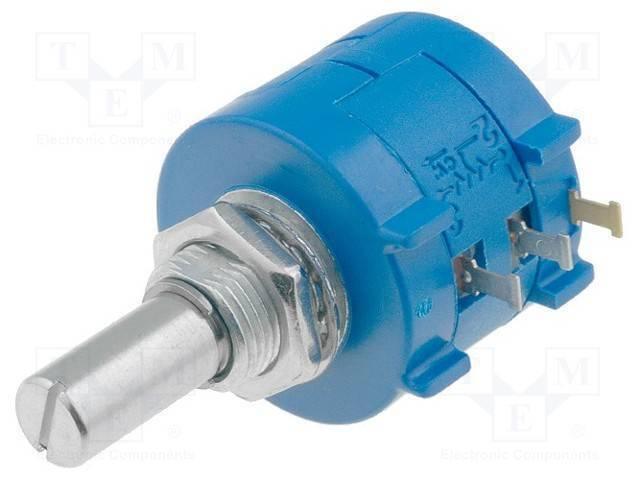

Name: 5k Multiturn Potentiometer Resistor 3590S-2-502L Precision Multiturn Potentiometer
Brand: China
SKU: b658
Price: 500.0 PKR
Availability: InStock

1 2

Description

It is a 5k Ohm 3590S Precision Multiturn Potentiometer. It is used mostly in HMI applications.

Package Includes:

1 x 5k Ohm 3590S Precision Multiturn Potentiometer.

Type of potentiometer	shaft
Kind of potentiometer	multiturn
Resistance	5kΩ
Power	2W
Tolerance	±5%
Shaft diameter	6.35mm
Characteristics	linear
Body dimensions	Ø22.22x18.6mm
Track material	wirewound
Number of electrical turns	10
Shaft length	12.6mm
Potentiometer features	precise
Linearity tolerance	±0.25%
Operating temperature	-40...125°C
Shaft surface	smooth
Min. insulation resistance	1000MΩ
Thread length	8mm
Shaft material	metal
Temperature coefficient	50ppm/°C
L shaft length	20.6mm
IP rating	IP40
