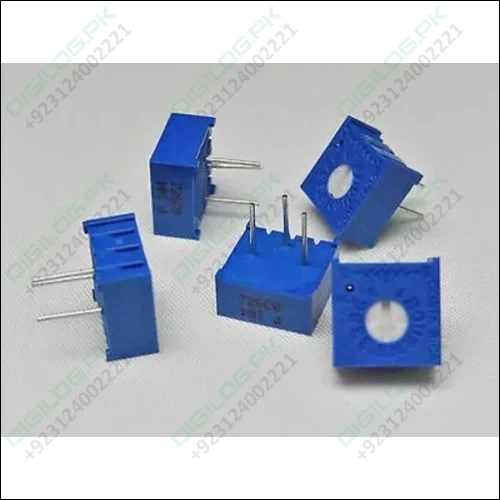

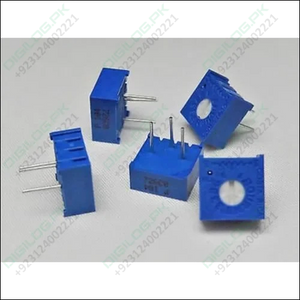

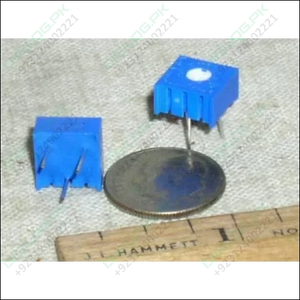

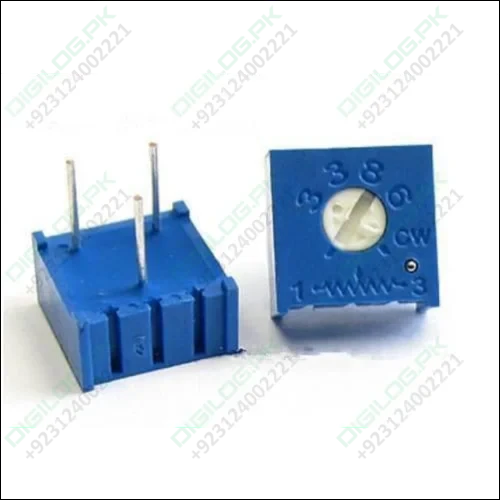

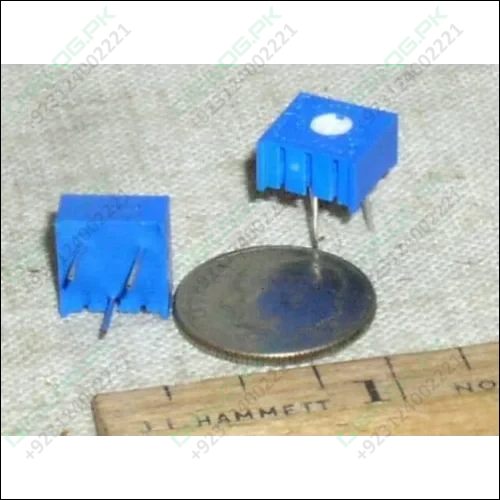

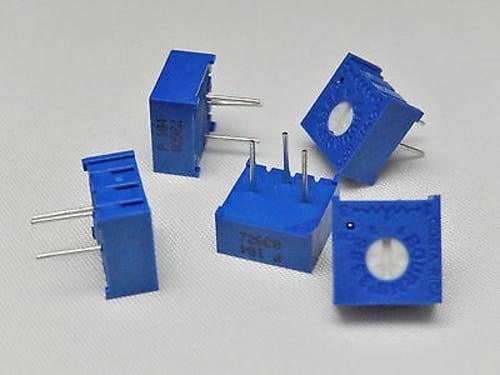

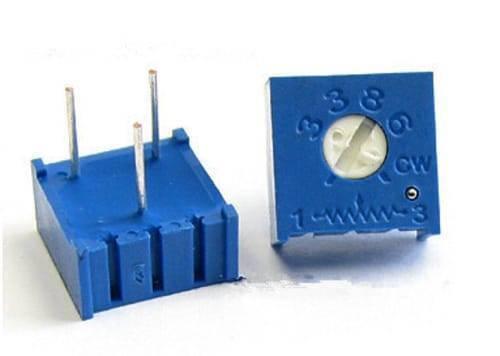

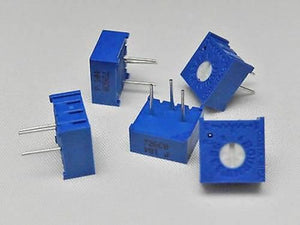

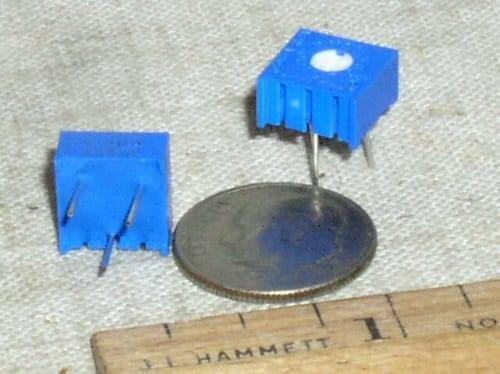

1k 3386 Single Turn Variable Potentiometer

3386 Single Turn Variable Potentiometer Trimmer Resistor is a high accuracy variable resistor. However Variable Potentiometer Trimmer Resistor, PCB mountable with 3 terminal pins. However the voltage between the terminal varies as the trimpot is rotate.

Hence the Variable resistors are use for variating voltage as per the need in a circuit. Although the outer two pins are connect to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotate.

Features of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

1. Trimmer is a high accuracy variable resistor and also PCB mountable with 3 terminal pins.
2. The voltage between the terminal varies as the trimpot is rotate.
3. The Variable resistors are used for variating voltage as per the need in a circuit.
4. The outer two pins are connected to Vcc and 0V, and in addition centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Specifications of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

1. Track Resistance: Select Value
2. Resistance Tolerance: ± 5%
3. Temperature Coefficient: ± 50 ppm/°C
4. Potentiometer Mounting: Through Hole
5. Adjustment Type: Top
6. Contact Resistance Variation +: 1%
7. Full Power Rating Temperature: 85°C
8. Lead Diameter: 0.5mm
9. Operating Temperature Range: -55°C to +125°C
10. Resistance: 1K ohm, 2k ohm,5k ohm, 10k ohm, 20k ohm, 50k ohm, 100k ohm, 500k ohm, 1 Megohm
11. Resistor Element Material: Variable Rotary Trimmer

Applications:

1. Industrial
2. Consumer Electronics
3. Portable Devices
4. Power Management

Package Includes:

1 x 3386 Single Turn Variable Potentiometer Trimmer Resistor
