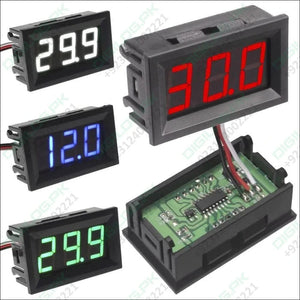

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - shown in white, red, blue, and green LED display versions with a rear view of the circuit board.

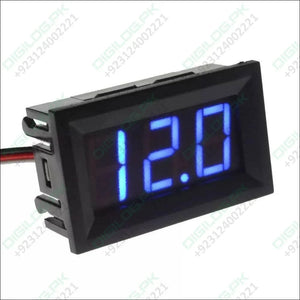

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - a rectangular black housing with a blue digital display reading 12.0 and red wires.

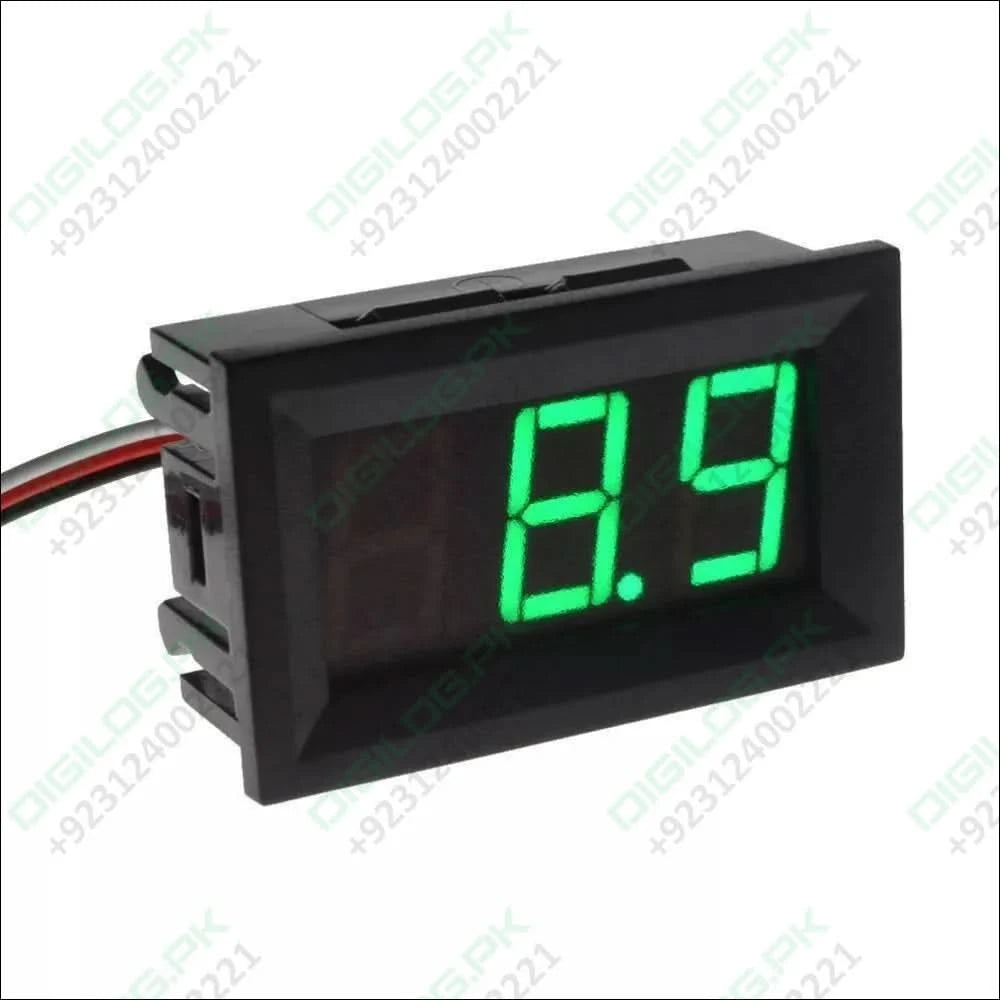

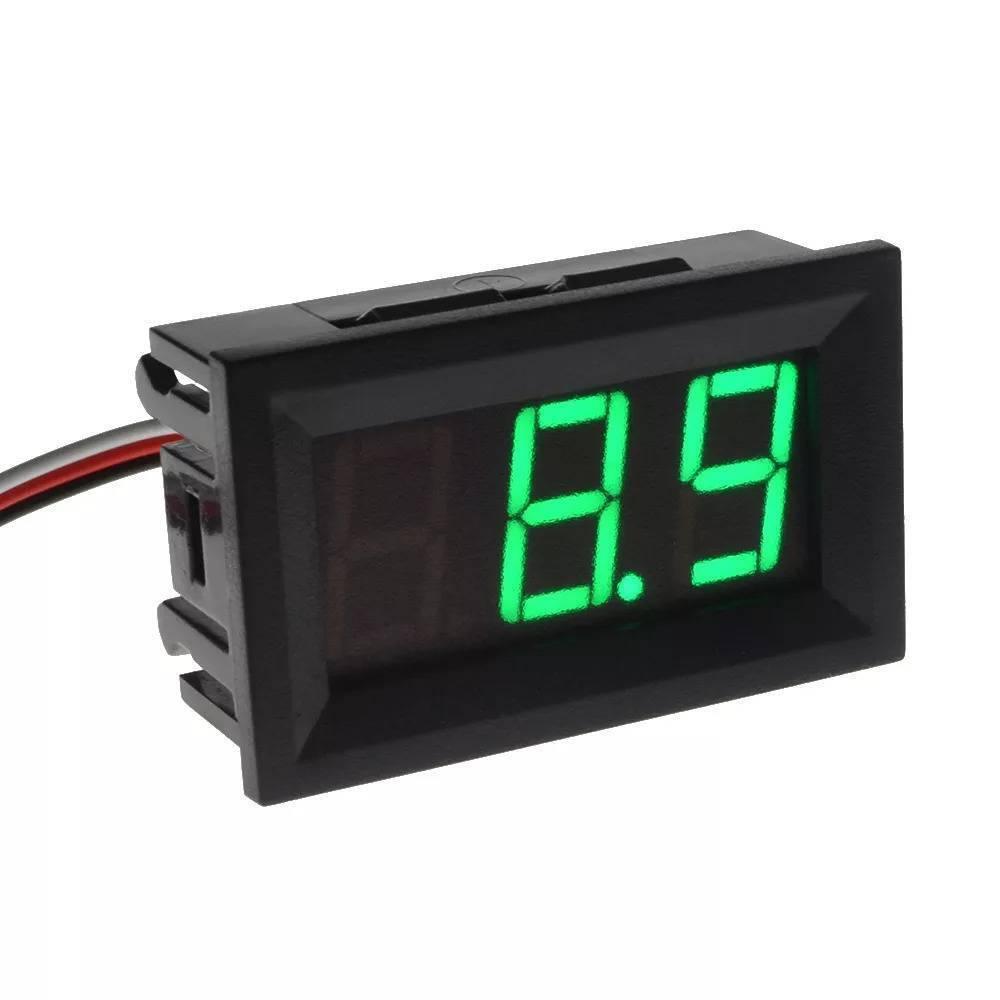

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - a black rectangular housing with a green LED display reading 8.9 and red/black wires.

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - shown in white, red, blue, and green LED display versions with a rear view of the circuit board.

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - a rectangular black housing with a blue digital display reading 12.0 and red wires.

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - a black rectangular housing with a green LED display reading 8.9 and red/black wires.

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter

Rs 290

SKU: B171,krt115

Frequently Bought Together

Customers building this project usually buy these together.

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - shown in white, red, blue, and green LED display versions with a rear view of the circuit board.

+

2 Wire DC 0 To 30V DC Red LED Digital Voltmeter Module Panel Meter - a black rectangular digital display showing 30.0 in bright red light.

+

XL6019 5A DC-DC Step Up Boost Converter Price - a red rectangular circuit board featuring a blue potentiometer, two screw terminals, and a black inductor.

+

DSN-VC288 Panel Mount DC 100V 10A Voltmeter Ammeter - a red voltage display, blue current display, two wiring harnesses, and the rear circuit board.

DSN-VC288 Panel Mount DC 100V 10A Voltmeter Ammeter - a red voltage display, blue current display, two wiring harnesses, and the rear circuit board.

This item: 3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter -

Rs 290

2 Wire DC 0 To 30V DC Red LED Digital Voltmeter Module Panel Meter - a black rectangular digital display showing 30.0 in bright red light.

2 Wire DC 0 To 30V DC Red LED Digital Voltmeter Module Panel Meter -

Rs 310

XL6019 5A DC-DC Step Up Boost Converter Price - a red rectangular circuit board featuring a blue potentiometer, two screw terminals, and a black inductor.

XL6019 5A DC-DC Step Up Boost Converter Price -

Rs 280

DSN-VC288 Panel Mount DC 100V 10A Voltmeter Ammeter - a red voltage display, blue current display, two wiring harnesses, and the rear circuit board.

DSN-VC288 Panel Mount DC 100V 10A Voltmeter Ammeter -

Rs 460

Price for all:

Rs 1,340

Pickup available at Digilog Electronics

Usually ready in 2 hours

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter - shown in white, red, blue, and green LED display versions with a rear view of the circuit board.

3 Wire 0-100V Red LED Digital Voltmeter Module Panel Meter

Rs 290

3 wire 0-100V Red LED digital voltmeter module panel meter

Sensing Voltmeter: 0-100V.
Power supply: DC4-30V
Measuring range: 0-100V.
Measurement accuracy: ±0.1%
Refresh rate: about 200ms
Display: 0.56 "digital tube
Color: Red
Operating current: Less than 8mA
Operating temperature: -10°C to 65°C
Input impedance:100K
Overall dimension: 48*29*26mm
Display LED color - Red

Wiring instructions:

White Line: Measuring DC 0-100V
Red line: Power Supply DC 4-30V
Black lines: Common negative

Package Included:

1 x 3 wire DC 4-30V 0-100V Red LED digital voltmeter module panel meter
