1s 3a 3.7v Li-ion Bms Pcm Protection Board Without Wire For 18650 Lithium Lion Battery
Pickup available at Digilog Electronics
Usually ready in 2 hours
1s 3a 3.7v Li-ion Bms Pcm Protection Board Without Wire For 18650 Lithium Lion Battery
This is 1S 18650 Li-ion Lithium Battery BMS Charger Protection Board for 3.7V Battery.
Protections:
- Short circuit protection
- Overcharge protection
- Over-discharge protection
- Over-current protection

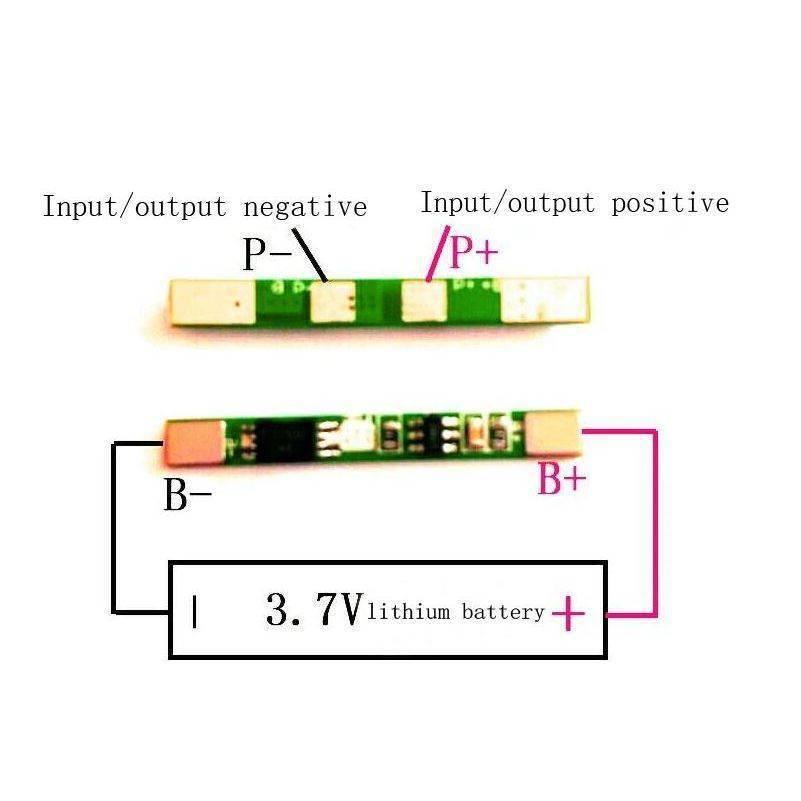

Pins description:
P-: negative of input or output power
P+: positive of input or output power
B-: negative of the battery
B+: positive of the battery
Features :
- High accuracy voltage detection circuit;
- Using high voltage device charging terminal;
- The built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2, load short circuit);
- The battery charge and discharge can control the MOS transistor;
Package Includes :
1 x 1S 18650 Li-ion Lithium Battery BMS Charger Protection Board for 3.7V Battery
