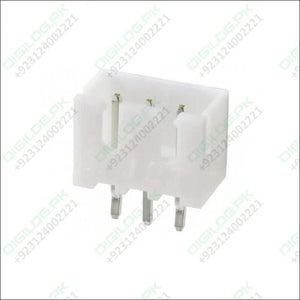

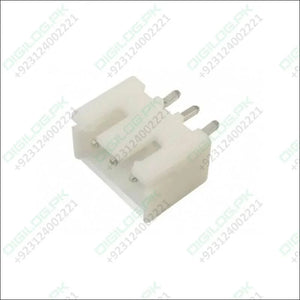

3 Pin Jst-xh Male Straight Connector 2.54mm Pitch
Pickup available at Digilog Electronics
Usually ready in 2 hours
3 Pin Jst-xh Male Straight Connector 2.54mm Pitch
JST-XH 3 Pin Connector Polarized connectors and headers for your perf board/PCB projects. Use these connectors for power connections or any sensor/general connection to prevent users from connecting the peripheral incorrectly or reversed. The connector comes with a compatible male connector that mates with it in only one orientation. Featured by RoboticsBD. The male connector has a spacing of 0.1′(2.54 mm) and can be easily soldered onto a standard prototype board.
Product Images are shown for illustrative purposes only and may differ from the actual product.
Features:
- JST 3 Pin Connector Plug
- These are often referred to as “JST” or “BEC” Connectors and are commonly used for battery and motor connections on small electric planes.
| General Specification | |
| Current Rating: | 3A |
| Voltage Rating: | 250V |
| Connector Type: | Header |
| Contact Type: | Male Pin |
| Connector Type: | JST-XH 3 Pin Connector (4 Pin Male Relimate Polarized Connector) |
| Operating Temperature: | -25°C ~ 85°C |
| Mounting Type: | Through Hole |
| Number of Positions: | 3 |
| Number of Rows: | 1 |
| Pitch: | 2.54mm |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 3 × 3 × 3 cm |
Documentation:
- Datasheet: XH Connector
Package Includes:
1 x 3 Pin JST-XH Male Straight Connector 2.54mm Pitch
