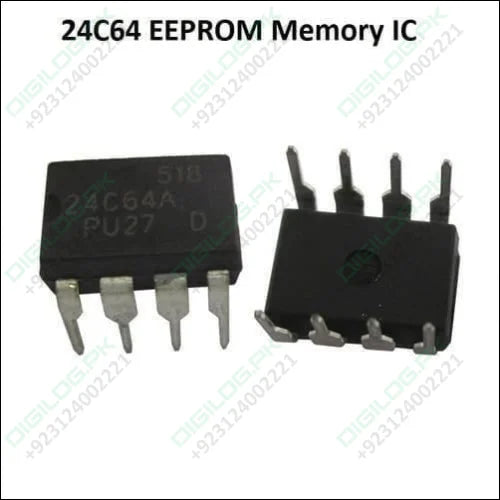

24C64 Serial EEPROM 64K Memory IC
SKU:
B638,L10,Th5,KRT
- Rs.70
-
- Rs.70
- Unit price
- per
Please hurry! Only 1011 left in stock
Subtotal:
Rs.70
10 customers are viewing this product
Couldn't load pickup availability
24C64 is a 64Kbit CMOS non-volatile serial EEPROM organized as 8K x 8-bit memory. This Memory IC confirms to Extended IIC 2-wire protocol that allows accessing of memory in excess of 16Kbit on an IIC bus. This serial communication protocol uses a Clock signal (SCL) and a Data signal (SDA)...
Description

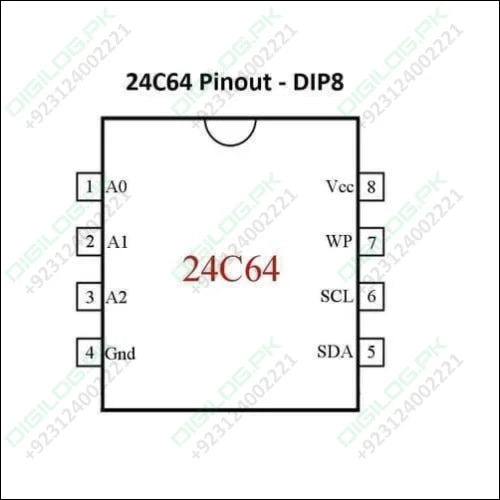

x24C64 is a 64Kbit CMOS non-volatile serial EEPROM organized as 8K x 8-bit memory. This Memory IC confirms to Extended IIC 2-wire protocol that allows accessing of memory in excess of 16Kbit on an IIC bus. This serial communication protocol uses a Clock signal (SCL) and a Data signal (SDA) to synchronously clock data between a master (e.g. a microcontroller) and a slave (EEPROM). 24C64 is designed to minimize pin count and simplify PC board layout requirements. 24C64 offers hardware write protection whereby the entire memory array can be write-protected by connecting WP pin to VCC. This section of memory then becomes unalterable until the WP pin is switched to VSS. This device is offered in SO, TSSOP and DIP-packages.
Features And Specifications Of 64K-Bit Standard 2-Wire BusInterface Serial EEPROM:
- Logic Function Number: 24C64
- Memory Size: 64Kbit
- Memory Configuration: 8K x 8
- Interface Type: I2C, Serial
- Clock Frequency: 400kHz
- Supply Voltage Range: 2.5V to 5.5V
- Memory Case Style: DIP
- No. of Pins: 8
- Operating Temperature Range: -40°C to +85°C
- SVHC: No SVHC (19-Dec-2011)
- Base Number: 24
- IC Generic Number: 24C64
- Interface: I2C
Package Include:
- 1 x 24C64 EEPROM
