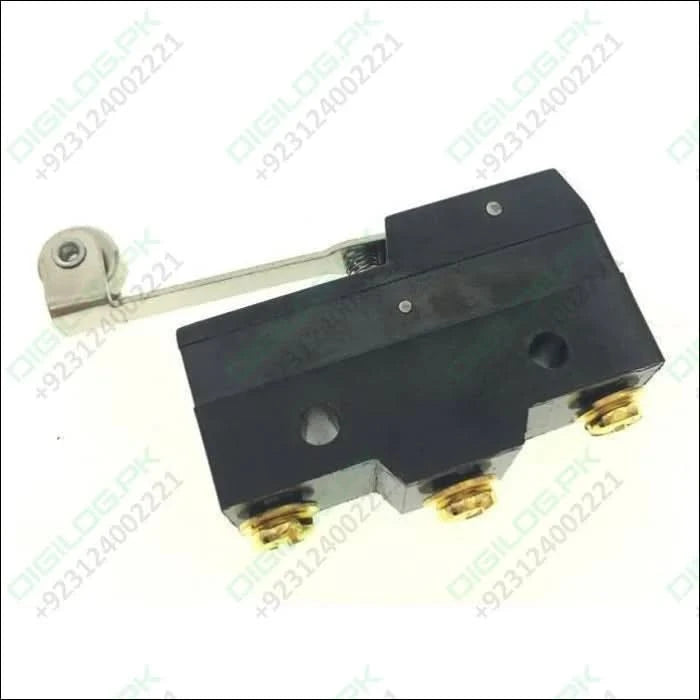

380vac 220vdc 10a Micro Limit Switch Limitswitch Instantaneous Parallel Roller Hinge Lever Plunger Lxw5-11g1

380vac 220vdc 10a Micro Limit Switch Limitswitch Instantaneous Parallel Roller Hinge Lever Plunger Lxw5-11g1

Regular price Rs 230
Regular price Sale price Rs 230
Sale Sold out
Shipping calculated at checkout.

SKU:b445,krt112,L10,Th5

NOTIFY ME WHEN IN STOCK

220VDC 10A Micro Limit Switch Limitswitch can be widely used in various mechanical fields. This 220 volts DC limit switch is used to monitor the position of moving parts of machines and plants. 220 volts 10 A micro limitswitch, also can be used in circuits, control circuits, and auxiliary circuits for terminal limit protection. In electrical engineering, a limit switch is a switch operated by the motion of a machine part or the presence of an object. A best micro limit switch Z-15GW2-B can be used for controlling machinery as part of a control system, as a safety interlock, or as a counter enumerating objects passing a point.

Features Of 380VAC 220VDC 10A Micro Limit Switch Limitswitch Parallel Roller Hinge Lever Plunger Z-15GW2-B:

  • Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded.
  • High precision mechanism design offers acute operation and long life.
  • It is widely used in toys, electronics, digital, communication devices, etc.
  • Easy to use with high-quality material.

Specifications 220 Volts DC 10 A LXW5-11G1 Series Long Hinge Roller Lever Plunger Micro Limit Switch:

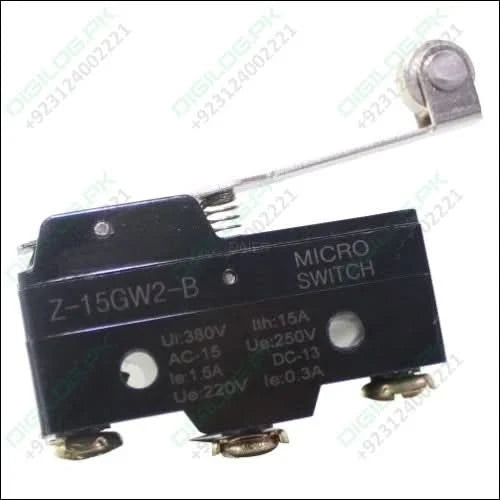

  • Model number: Z-15GW2-B
  • Contact material: Copper; Silver

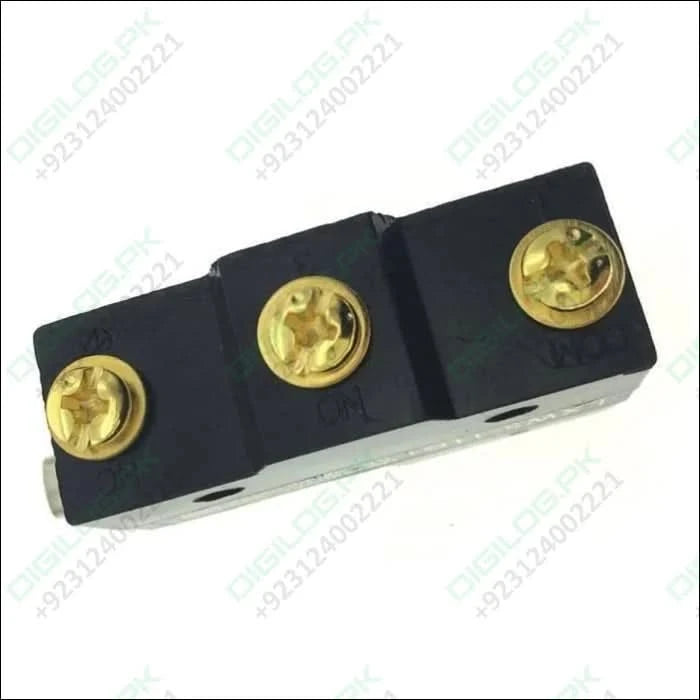

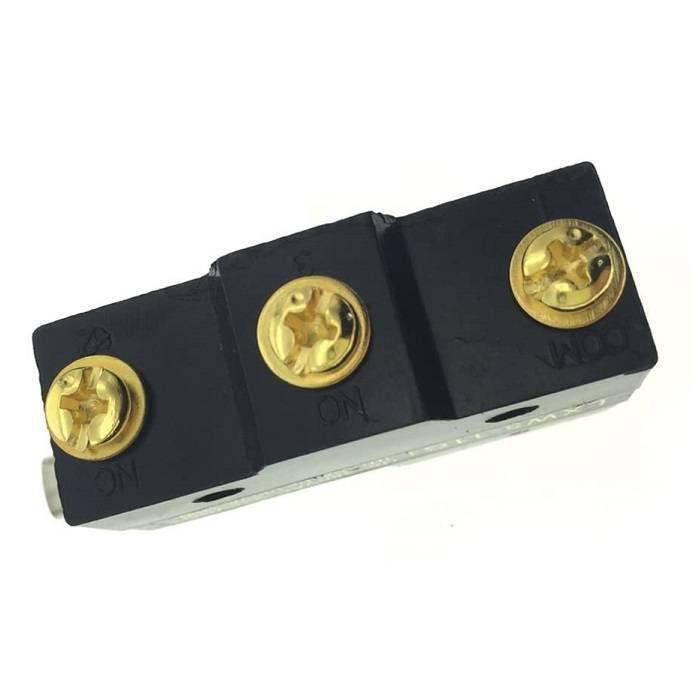

  • Contact form: 1NO+1NC
  • Action method: Reset
  • Rated voltage (Ue): 380VAC, 220VDC
  • Rated thermal current (Ith): 10A
  • Contact resistance: 30mΩ max (initial value)
  • Insulation resistance: 100MΩ min at 500Vdc
  • Dielectric strength: 1000Vac, 50/60 Hz for 1 min between terminals of the same polarity
  • 2000Vac, 50/60 Hz for 1 min between current-carrying metal part and ground
  • 2000Vac, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part
  • Machine life: 20x106 operations min
  • Electrical Life: 5x105 operations min
  • IP Rating: IP62
  • Operating temperature: -25-80 ℃
  • Operating humidity: 35 to 85% RH, no condensation
  • Alias name: LXW5 series limit switch

Package Includes:

  • 1 x 380VAC 220VDC 10A Micro Limit Switch Limitswitch

Best online shopping website for 380VAC 220VDC 10A Micro Limit Switch Limitswitch Instantaneous Parallel Roller Hinge Lever Plunger Z-15GW2-B at a cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Peshawar Rawalpindi and all over Pakistan.


380vac 220vdc 10a Micro Limit Switch Limitswitch380vac 220vdc 10a Micro Limit Switch Limitswitch

View full details

Description

220VDC 10A Micro Limit Switch Limitswitch can be widely used in various mechanical fields. This 220 volts DC limit switch is used to monitor the position of moving parts of machines and plants. 220 volts 10 A micro limitswitch, also can be used in circuits, control circuits, and auxiliary circuits for terminal limit protection. In electrical engineering, a limit switch is a switch operated by the motion of a machine part or the presence of an object. A best micro limit switch Z-15GW2-B can be used for controlling machinery as part of a control system, as a safety interlock, or as a counter enumerating objects passing a point.

Features Of 380VAC 220VDC 10A Micro Limit Switch Limitswitch Parallel Roller Hinge Lever Plunger Z-15GW2-B:

  • Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded.
  • High precision mechanism design offers acute operation and long life.
  • It is widely used in toys, electronics, digital, communication devices, etc.
  • Easy to use with high-quality material.

Specifications 220 Volts DC 10 A LXW5-11G1 Series Long Hinge Roller Lever Plunger Micro Limit Switch:

  • Model number: Z-15GW2-B
  • Contact material: Copper; Silver
  • Contact form: 1NO+1NC
  • Action method: Reset
  • Rated voltage (Ue): 380VAC, 220VDC
  • Rated thermal current (Ith): 10A
  • Contact resistance: 30mΩ max (initial value)
  • Insulation resistance: 100MΩ min at 500Vdc
  • Dielectric strength: 1000Vac, 50/60 Hz for 1 min between terminals of the same polarity
  • 2000Vac, 50/60 Hz for 1 min between current-carrying metal part and ground
  • 2000Vac, 50/60 Hz for 1 min between each terminal and non-current-carrying metal part
  • Machine life: 20x106 operations min
  • Electrical Life: 5x105 operations min
  • IP Rating: IP62
  • Operating temperature: -25-80 ℃
  • Operating humidity: 35 to 85% RH, no condensation
  • Alias name: LXW5 series limit switch

Package Includes:

  • 1 x 380VAC 220VDC 10A Micro Limit Switch Limitswitch

Best online shopping website for 380VAC 220VDC 10A Micro Limit Switch Limitswitch Instantaneous Parallel Roller Hinge Lever Plunger Z-15GW2-B at a cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Peshawar Rawalpindi and all over Pakistan.
