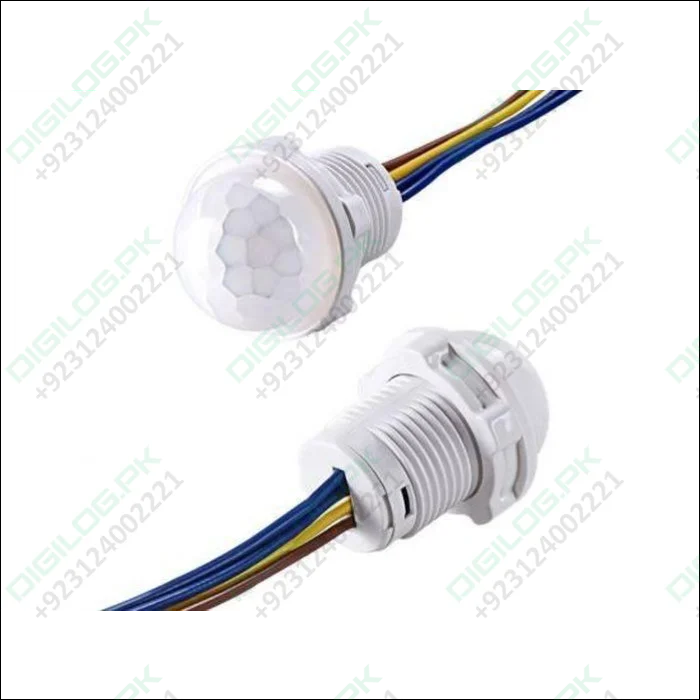

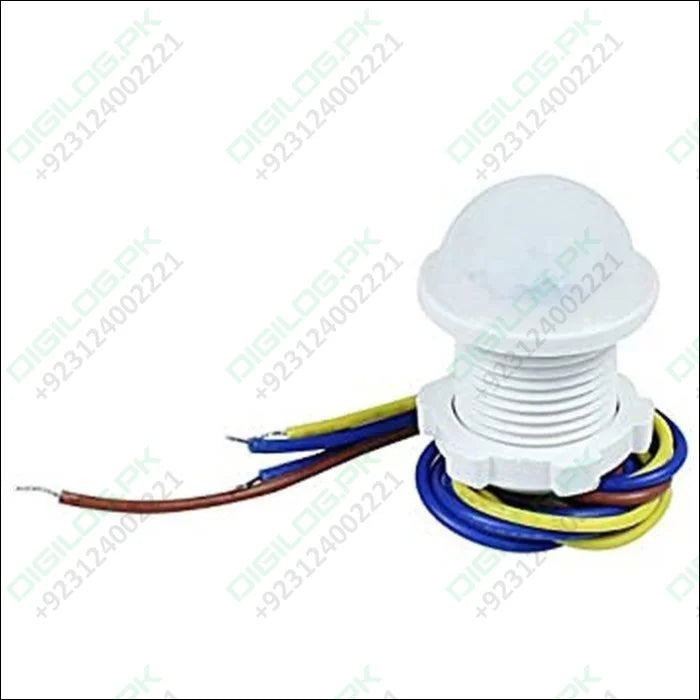

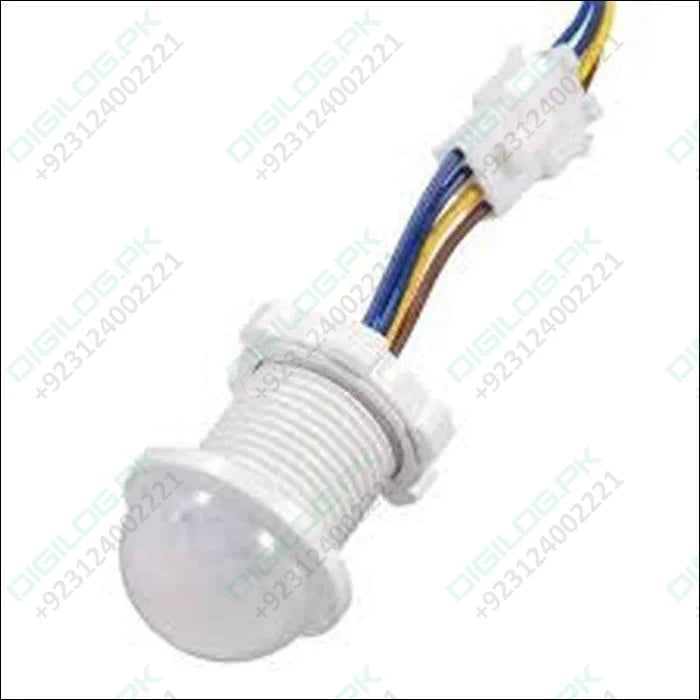

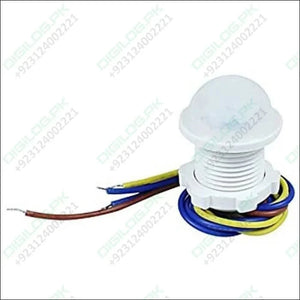

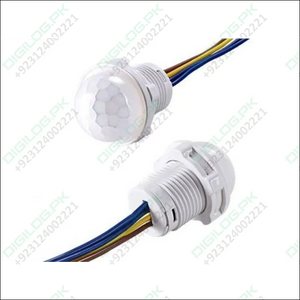

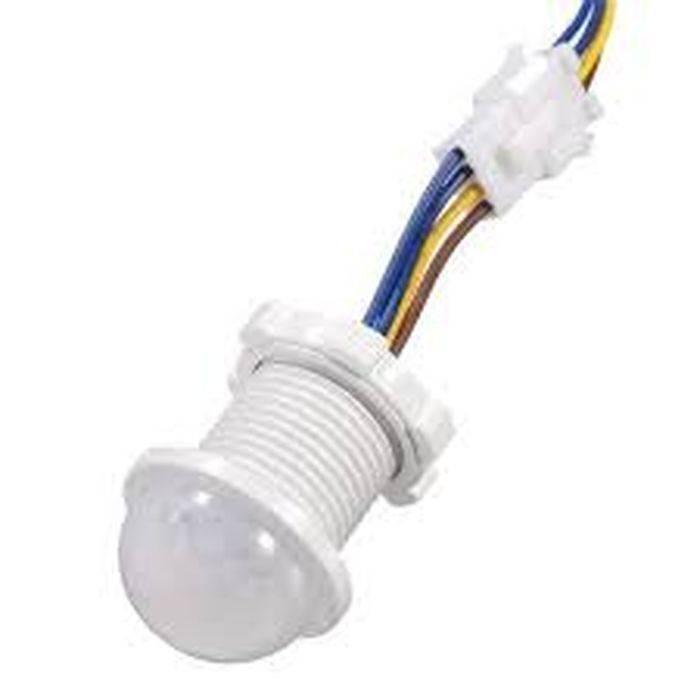

20mm Motion Sensor Light Switch

20mm Motion Sensor Light Switch

Regular price Rs 650
Regular price Sale price Rs 650
Sale Sold out
Shipping calculated at checkout.

SKU:B715

NOTIFY ME WHEN IN STOCK

View PDF Data Sheet

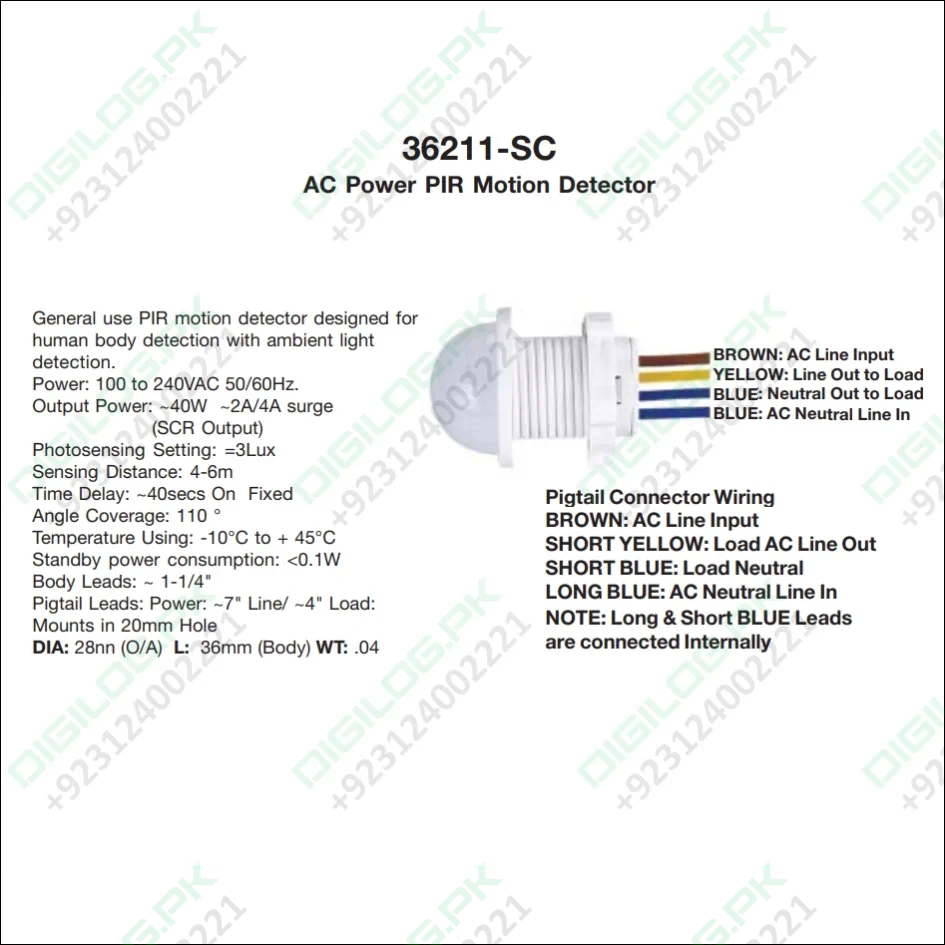

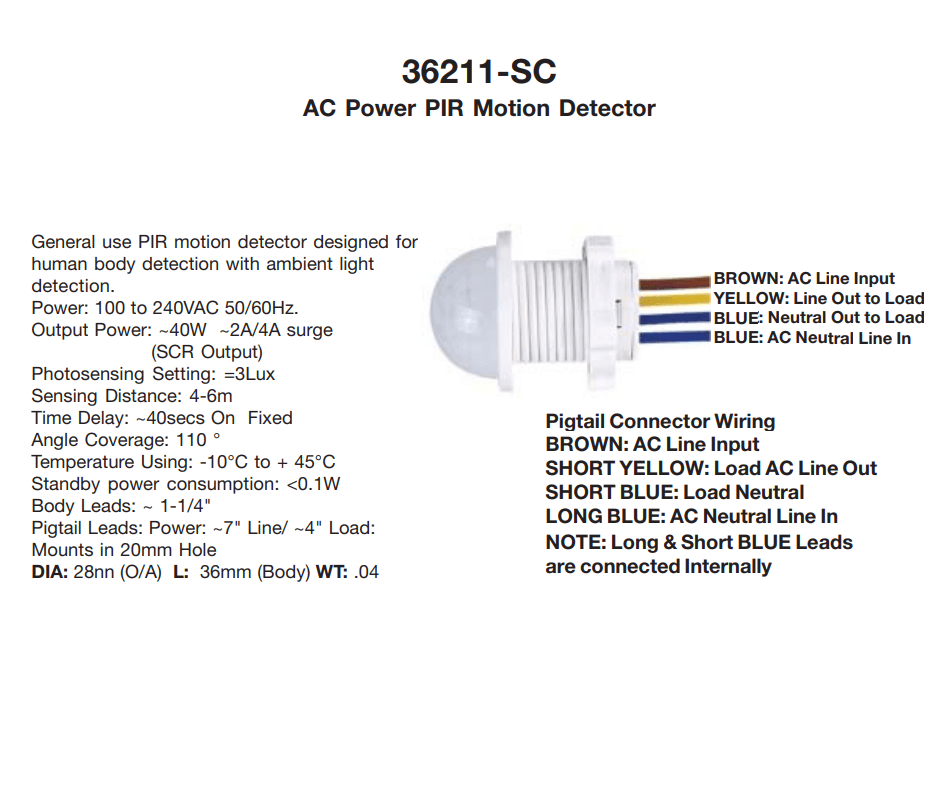

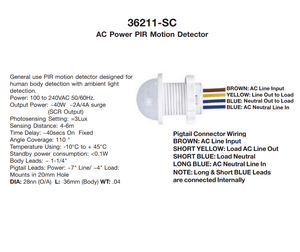

DATA SHEET

General use PIR motion detector designed for human body detection with ambient light detection.

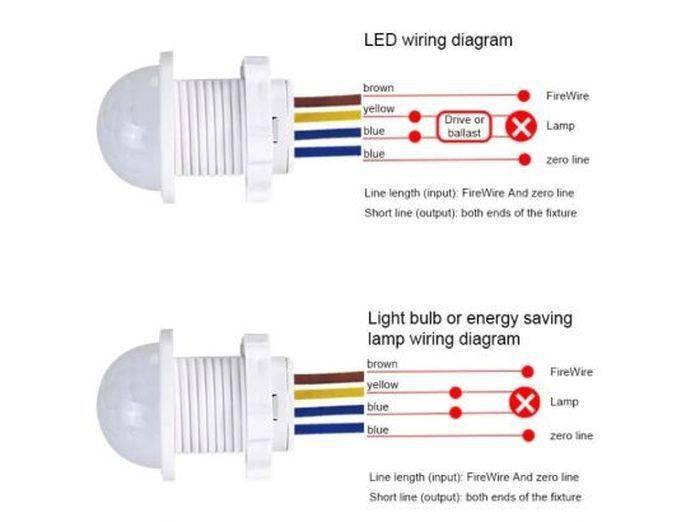

BROWN: Line Input
SHORT YELLOW: Load Line Out
SHORT BLUE: Load Neutral
LONG BLUE: Neutral Line In
NOTE: Long & Short BLUE Leads are connected Internally
Power: 100 to 240VAC 50/60Hz.
Output power: =40W ~2A/4A surge (SCR Output)
Photosensing Setting: =3Lux
Sensing Distance: 4-6m
Time Delay: 40secs On Fixed
Angle Coverage: 110 °
Temperature Using: -10 ° to + 45 °
Standby power consumption: <0.1W
Body Leads: ~ 1-1/4"
Pigtail Leads: Power: ~7" Line/ ~4" Load:

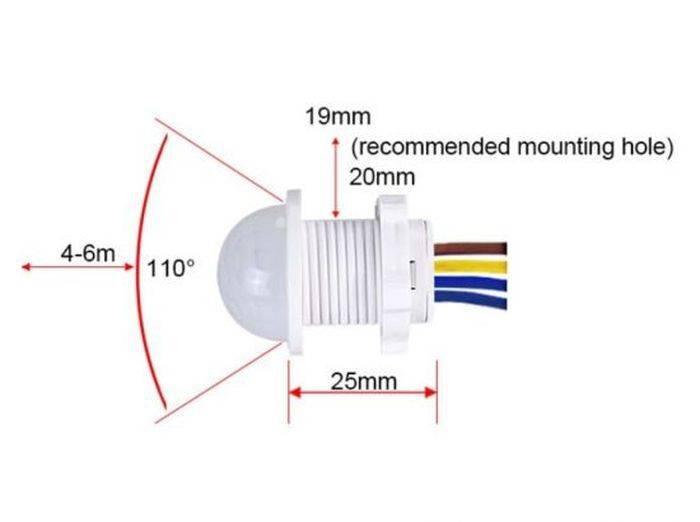

Mounts in 20mm Hole
DIA: 28nn (O/A) L: 36mm (Body)

Description

  • Small, lightweight, easy to install and operate, plug and play.
  • Motion detector with automatic day/night identification
  • IR sensor switch,touchless switch for switching lighting on/off

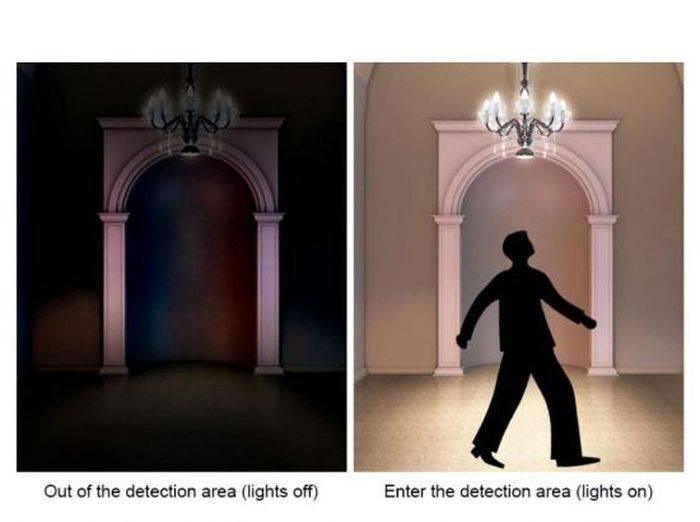

  • As long as any object with temperature enters the sensing range, the light will be on.
  • Auto switch on/off in the dark when you enter into the induction range, and it may have 45s time delay.
  • Suitable for auto lighting corridors, corridor, bathrooms, basements, warehouses, garages,closet, advertisement light box, and other
    places.

Specifications:

Material

PVC

Color

white

Working voltage

100-240V

Load power

40W

Working temp

-20 ℃ -+40 ℃

Static current

< 50μA

Time delay

45s

Light control

3Lux~6Lux

Output mode

sensor output

Induction angle

110 ° cone shape

Induction distance

4-6M



Package included :

1x 20mm Motion Sensor Light Switch
