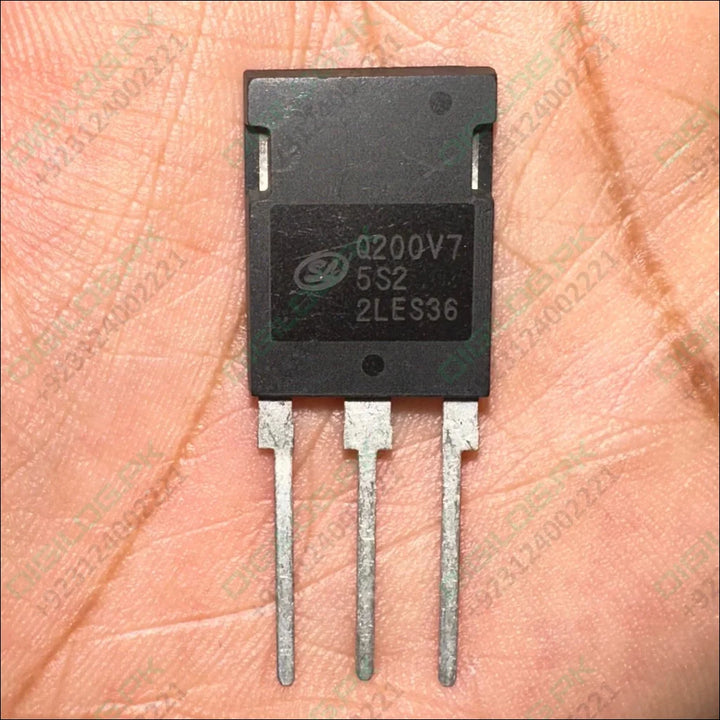

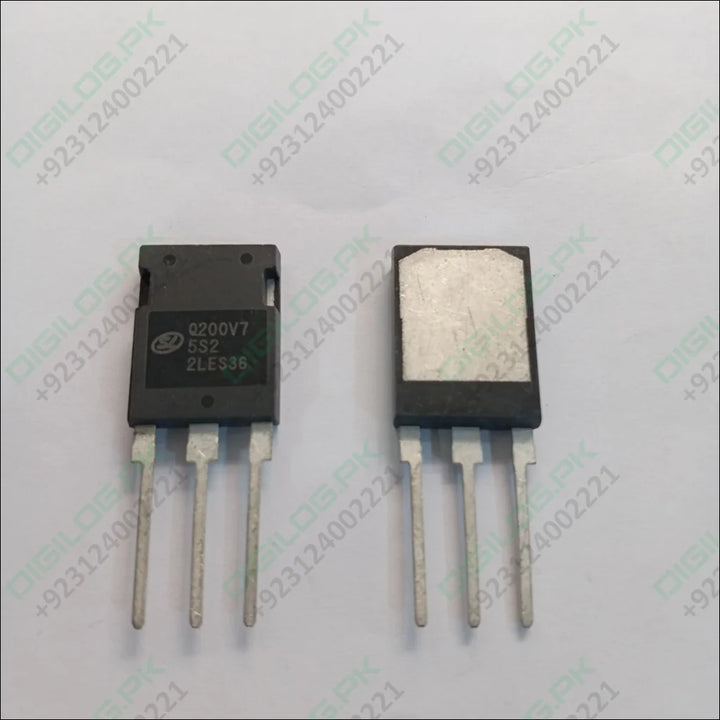

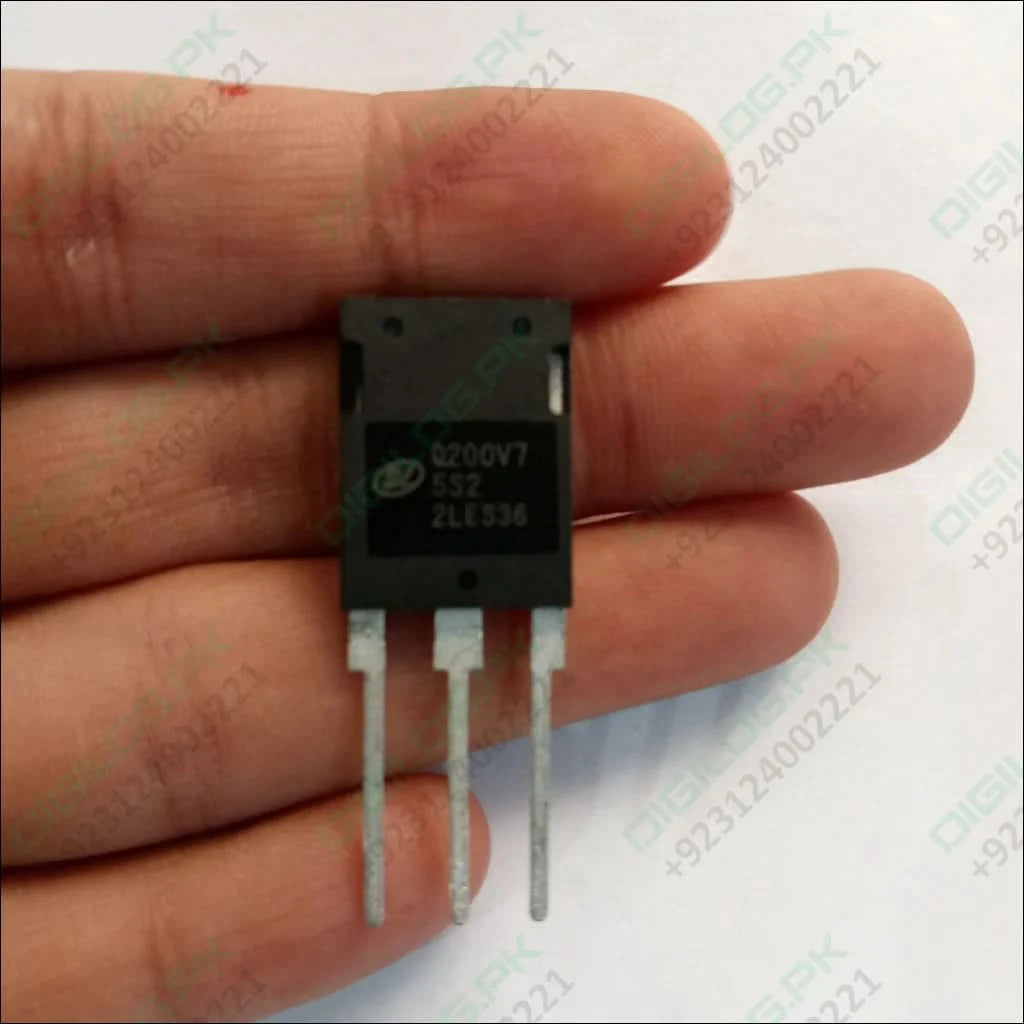

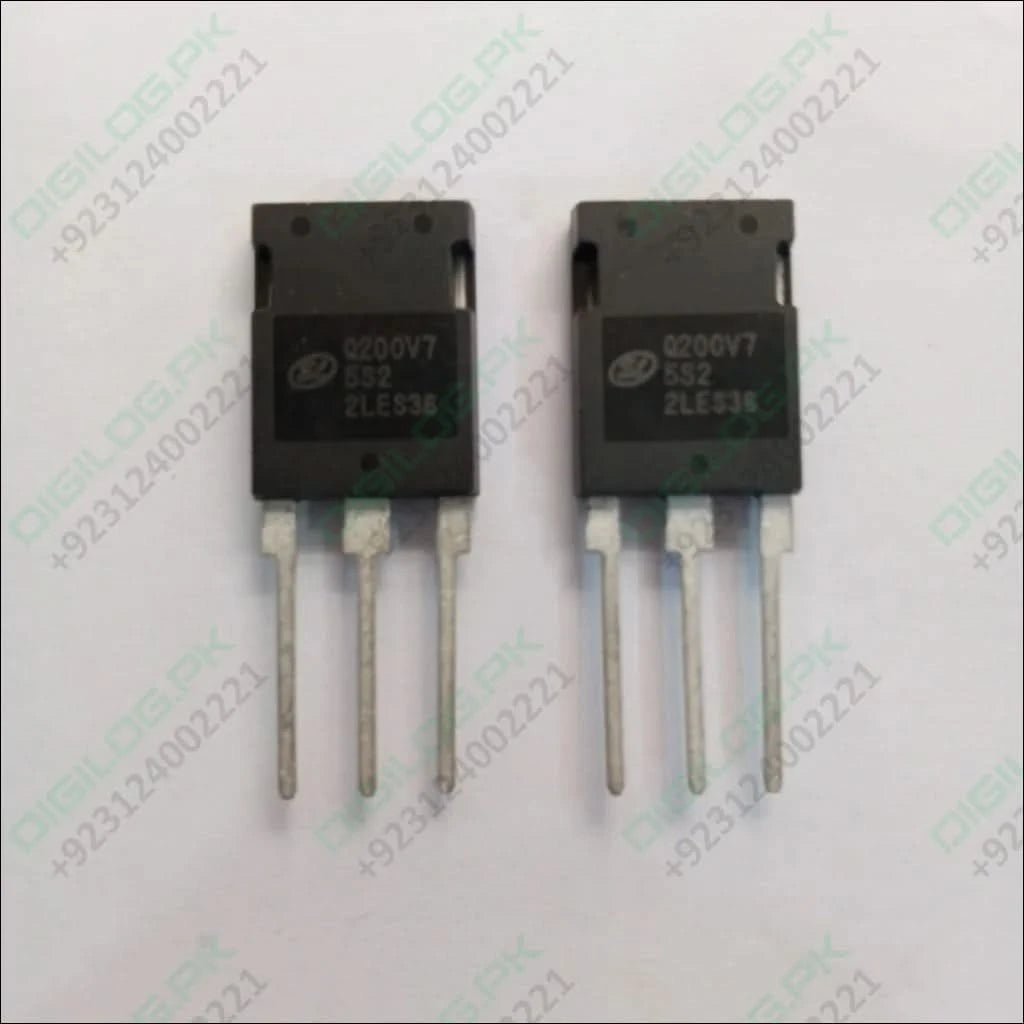

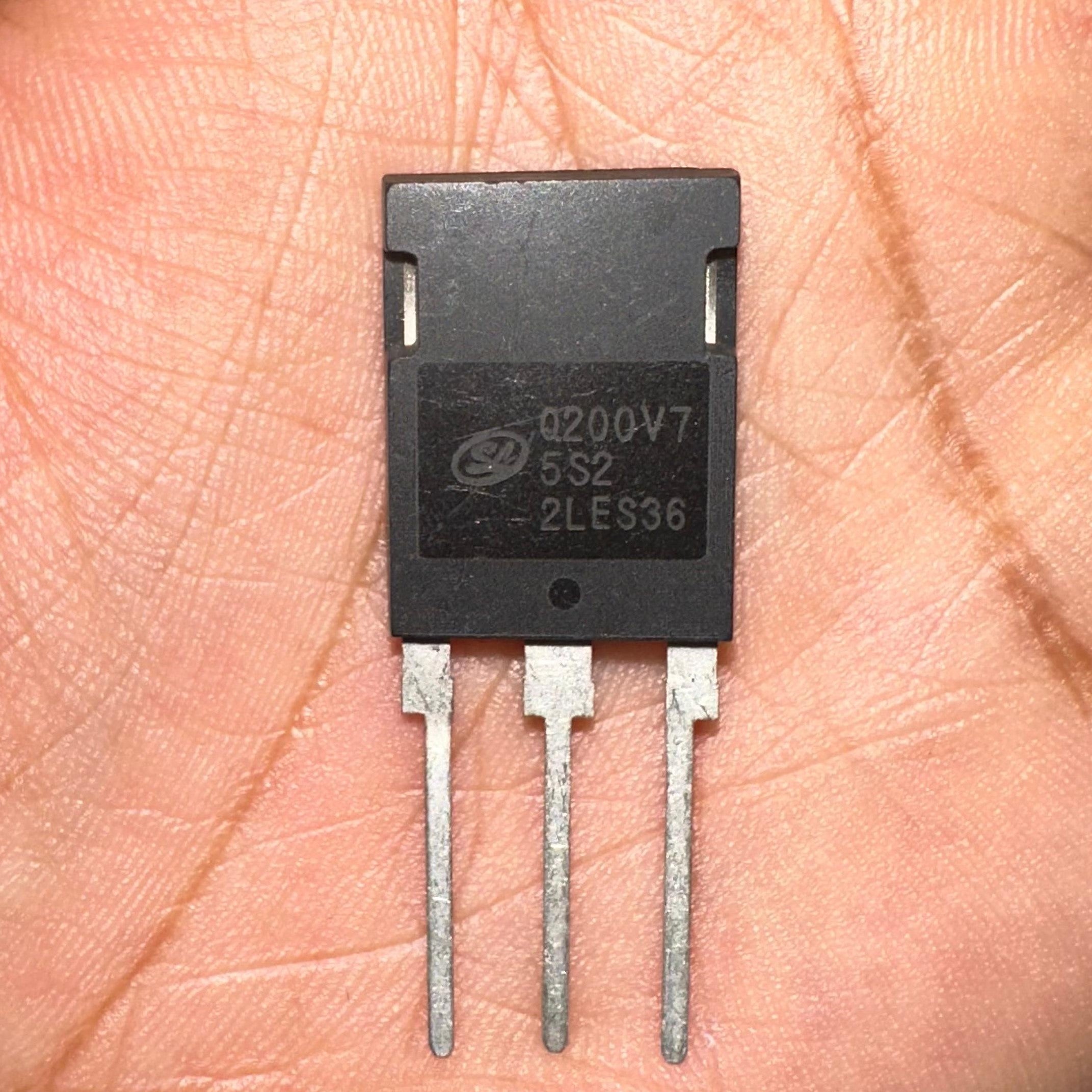

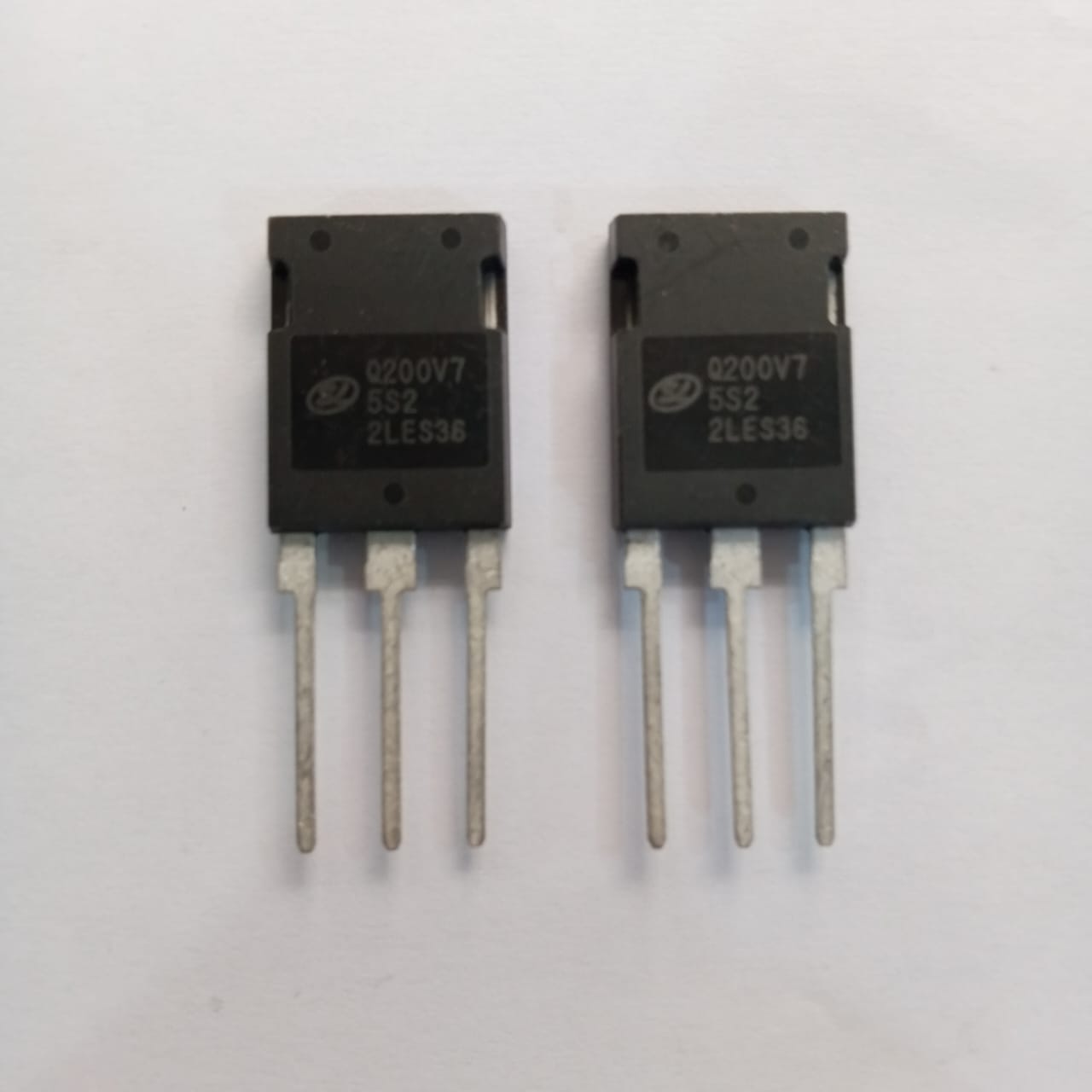

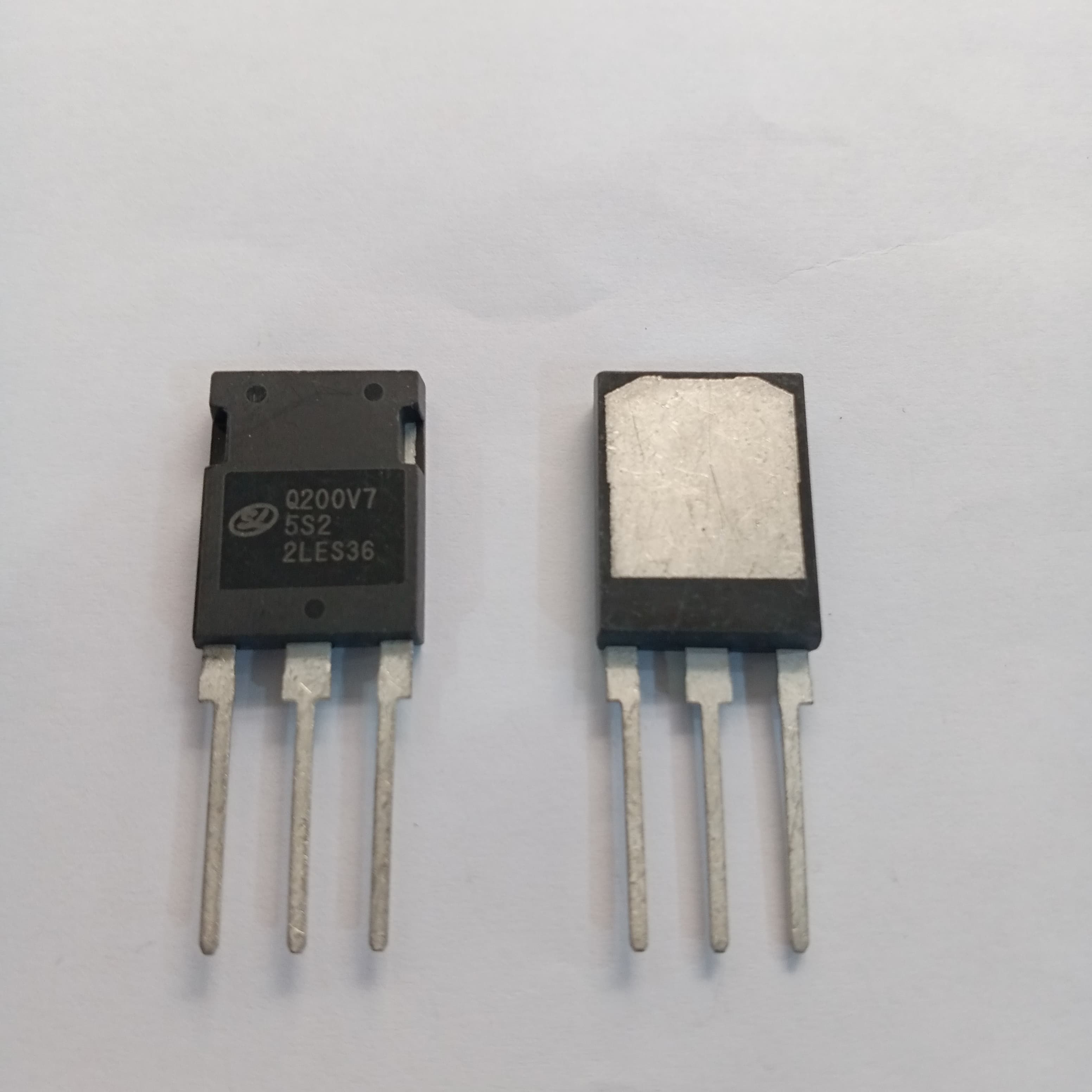

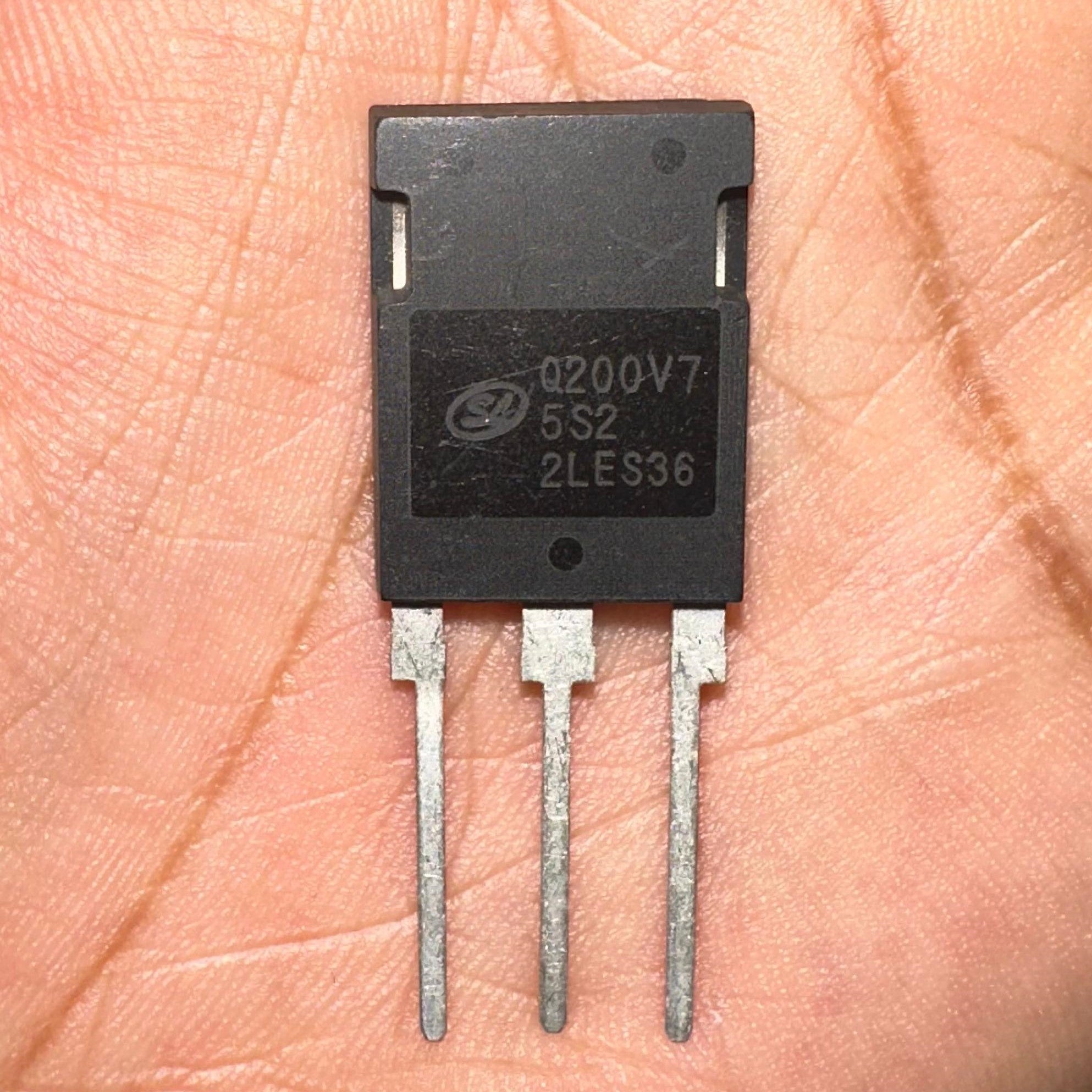

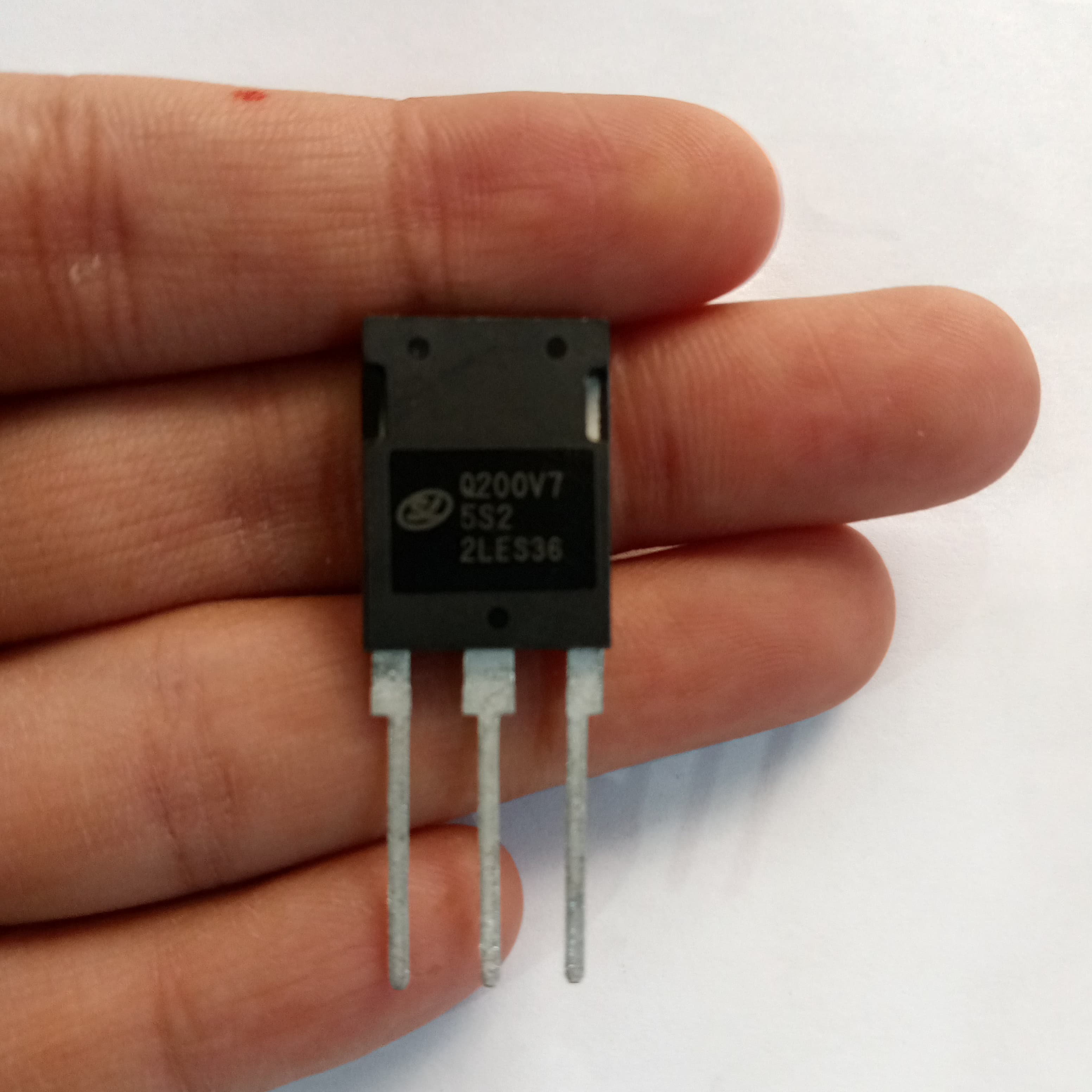

Q200V75SDB1 IGBT Module – 200A 750V
The Q200V75SDB1 is a high-performance Insulated Gate Bipolar Transistor (IGBT) designed for efficient power switching applications. With a 200A Current rating and 750v voltage capacity, this IGBT module ensures reliable and fast switching, making it ideal for industrial and commercial applications.
🔧 Key Features
-
✅ High Power Handling – Supports up to 200A, 750V
-
⚡ Fast Switching – Ideal for high-frequency inverters and drives
-
🌡️ Efficient Thermal Management – Minimizes heat buildup for extended reliability
-
🧩 Compact Design – Easy to integrate into industrial systems
-
💡 Wide Use Cases – From renewable energy to welding control systems
Applications:
🔹 Motor Control & Drives
🔹 Power Inverters & Converters
🔹 Uninterruptible Power Supplies (UPS) Solar inverter
🔹 Welding Equipment
🔹 Renewable Energy Systems (Solar & Wind Inverters)
🔹 Solar inverter
This IGBT module is engineered for reliability, efficiency, and superior performance in demanding power electronics applications.

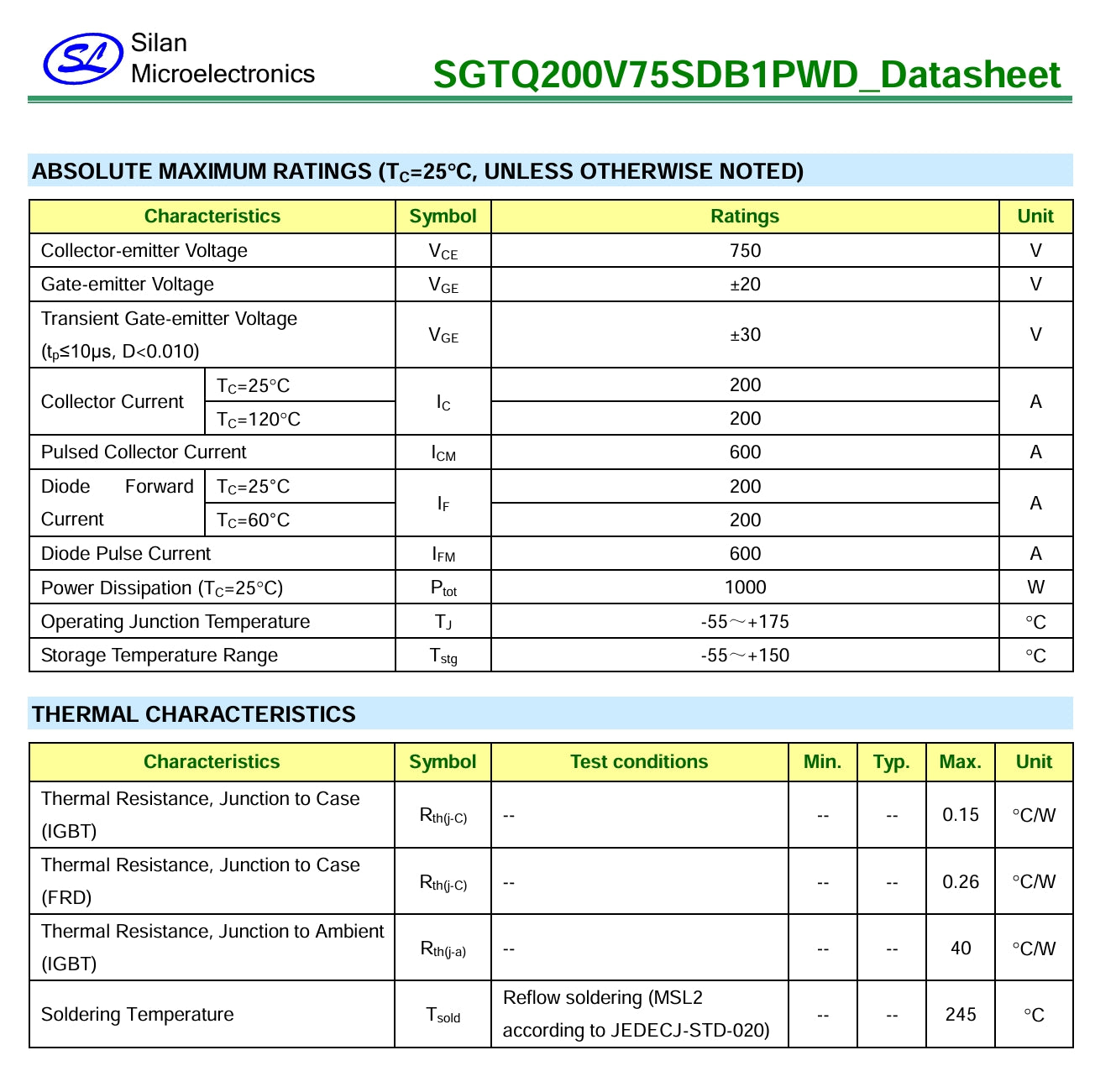

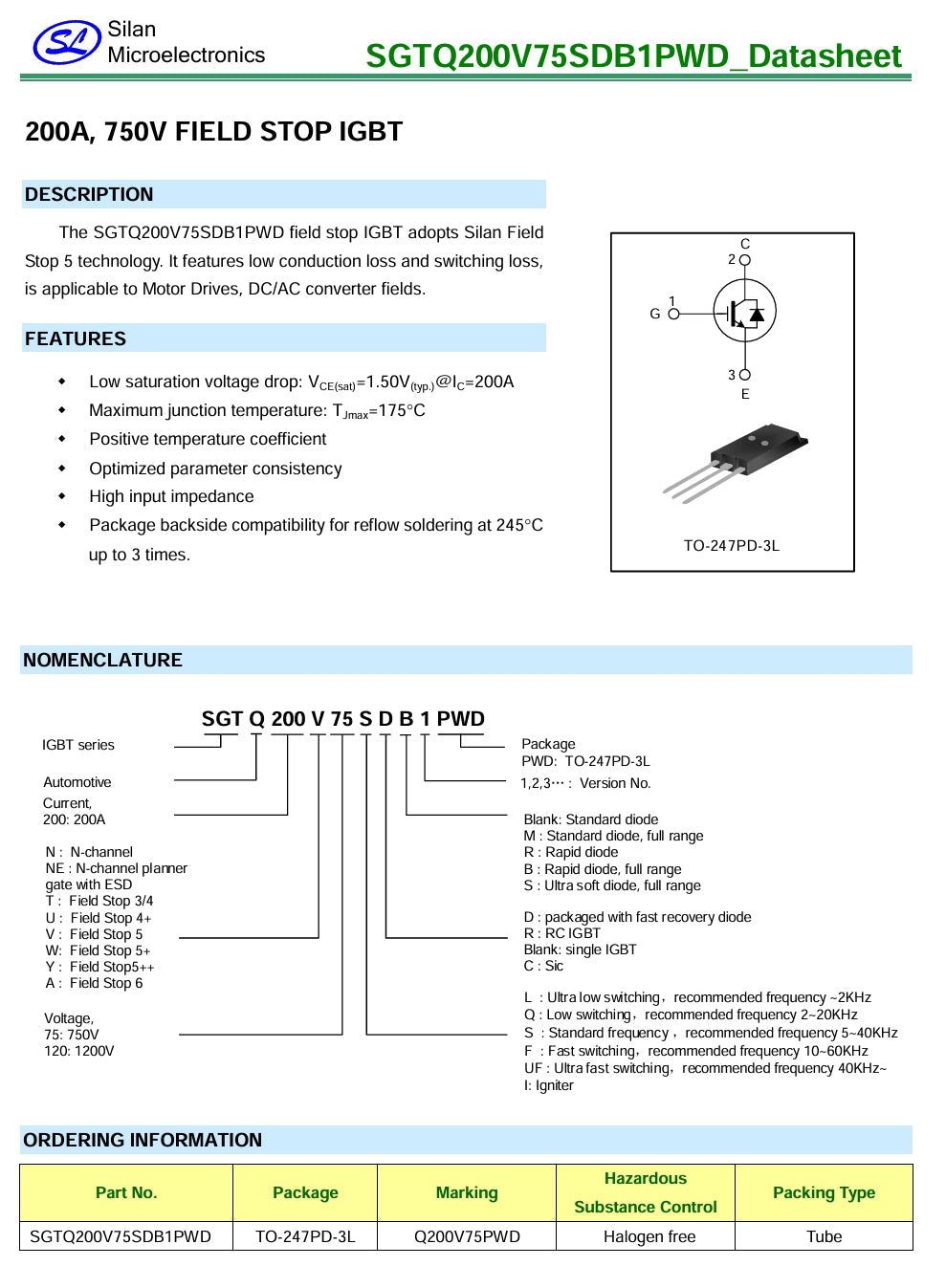

📋 Technical Specifications
| Parameter | Value |
|---|---|
| Model | Q200V75SDB1 |
| Type | IGBT Module |
| Collector-Emitter Voltage (VCES) | 750V |
| Collector Current (IC) | 200A |
| Switching Type | High-speed, low-loss |
| Applications | Inverters, Motor Drives, UPS, Welding, Solar, Wind |
| Package Type | IGBT Power Module |
Package includes:
1 x Q200V75SDB1 IGBT 200A 750V
