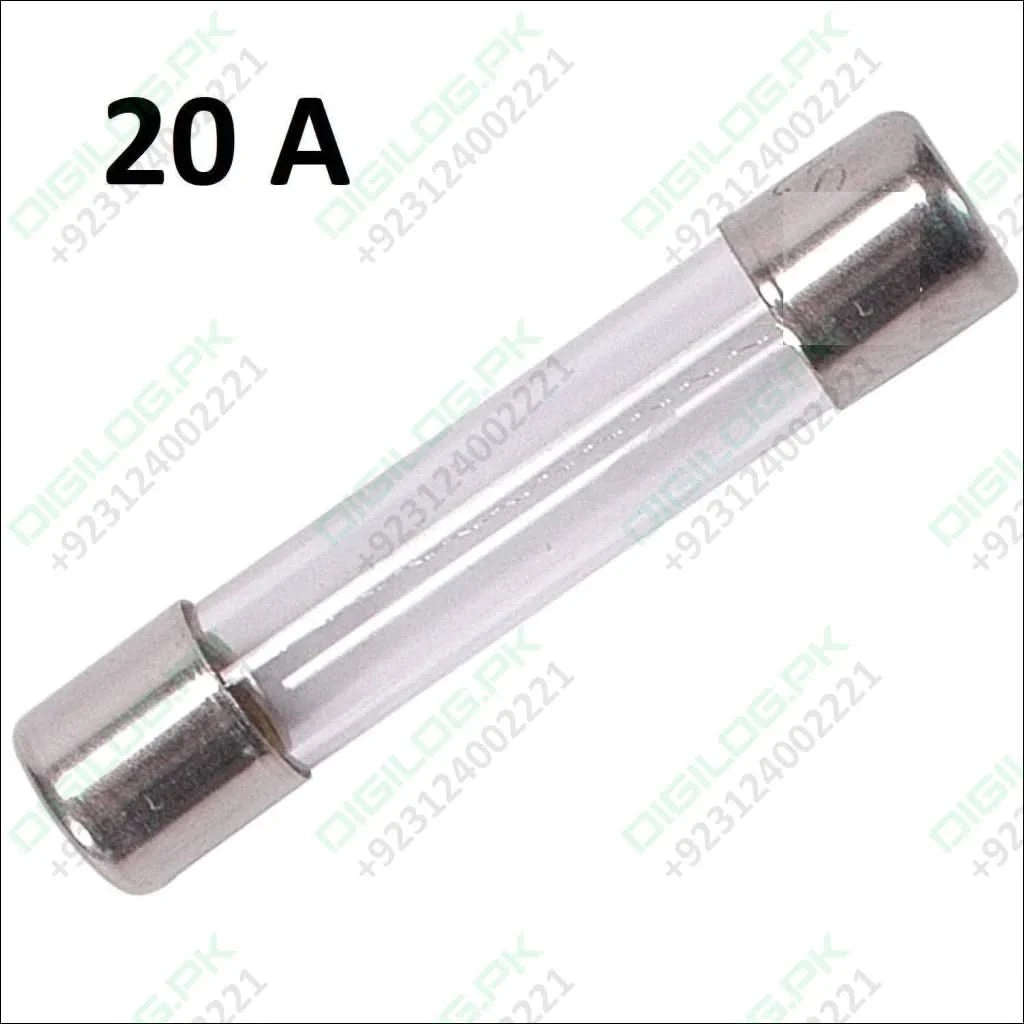

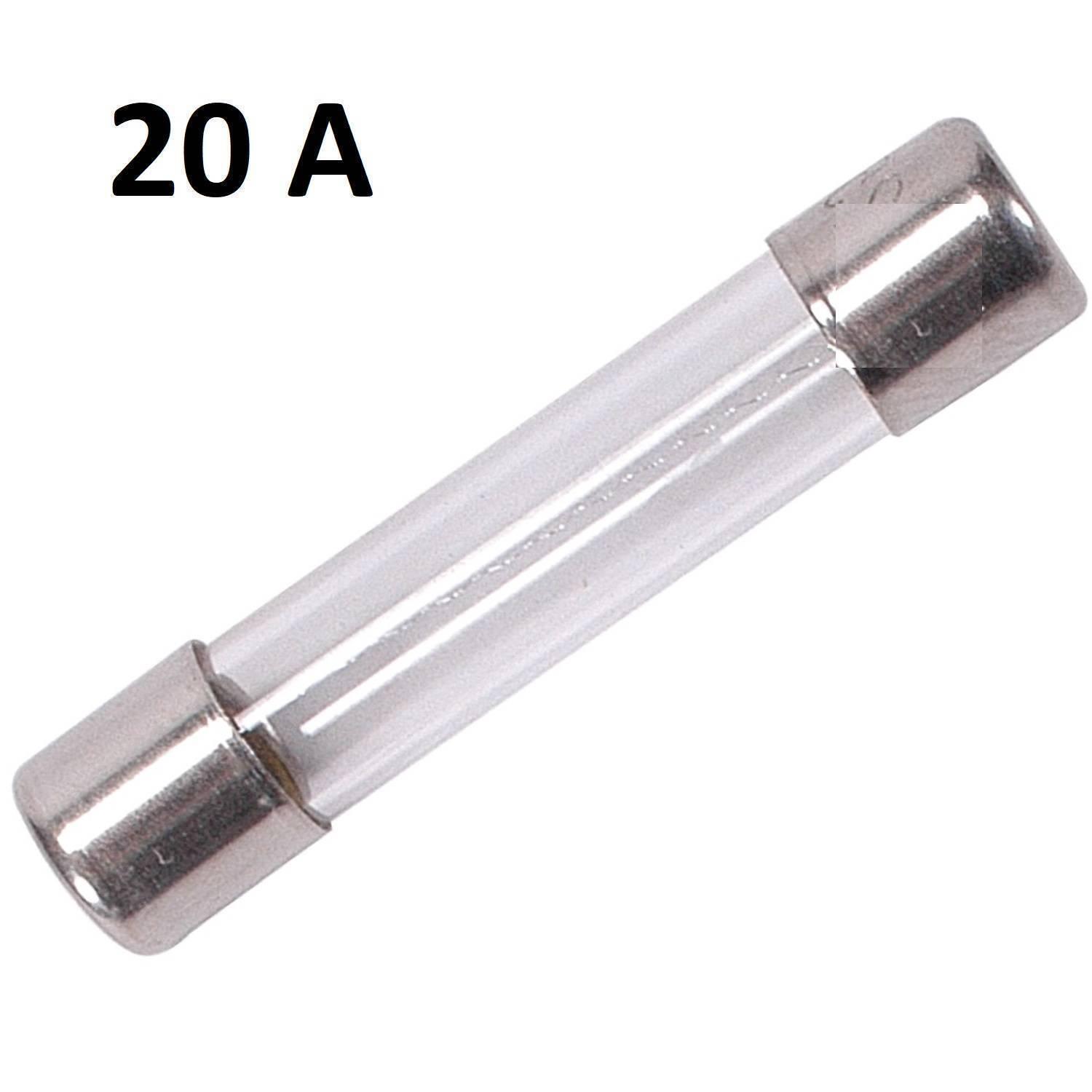

20 Amp 6x30mm 250vac Glass Fuse In Pakistan
20 Amp 6x30mm 250vac Glass Fuse In Pakistan

20 Amp 6x30mm 250vac Glass Fuse In Pakistan

Rs 10 PKR
SKU: b16
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

This 20 Amp 6x30mm 250VAC Glass Fuse is a reliable and essential component for electrical circuits. Designed to protect sensitive components from excessive current flow, this glass fuse provides reliable overcurrent protection. With its compact size and high current rating, this fuse is suitable for a wide range of applications.

In electronics and electrical engineering, a fuse is an electrical safety device that operates to provide overcurrent protection of an electrical circuit. Its essential component is a metal wire or strip that melts when too much current flows through it, thereby interrupting the current.

Cartridge fuses are used to protect motors and branch circuits where higher amps or volt ratings are required. General Purpose fuses have no time-delay and protect fuse panels, appliances, and branch circuits.

Features of 250vac Glass Fuse:

  • 20 Amp current rating: Protects against excessive current flow.
  • 6x30mm dimensions: Compact and space-saving design.
  • 250VAC voltage rating: Suitable for AC power systems.
  • Glass construction: Durable and heat-resistant material.
  • Quick-blow type: Provides fast and reliable protection.

Specifications:



Attribute Value
Current Rating 20 A
Voltage Rating 250 V ac
Fuse Speed F
Fuse Size 6 x 30mm
Diameter 6mm
Overall Length 30mm
Body Material Glass
Breaking Capacity at Maximum Voltage Rating 1000 A @ 250 V ac
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Series 314

Typical Application:

Cartridge fuses are a relatively cheap way of protecting electrical equipment from short circuits and overcurrent and can be used to protect electrical appliances such as motors air-conditions, refrigerator, pumps, etc. They can be found in the following areas:

  1. Industrial
  2. Commercial
  3. Home/Residential
  4. Automotive
  5. Electronics
  6. Appliances
  7. Power supplies

NEW, UNUSED, fresh out of the box.
