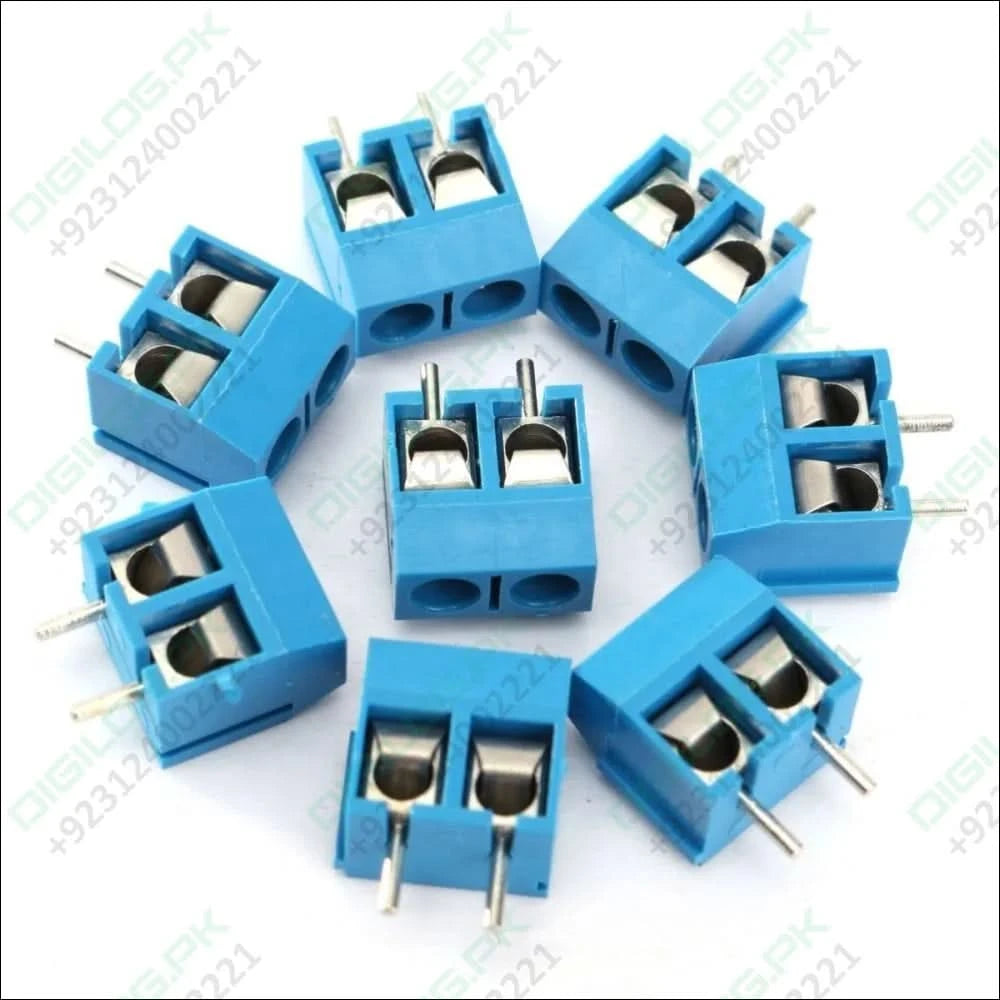

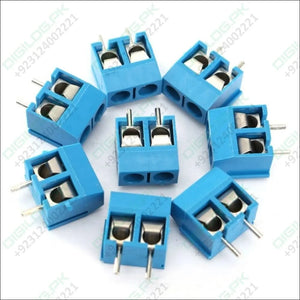

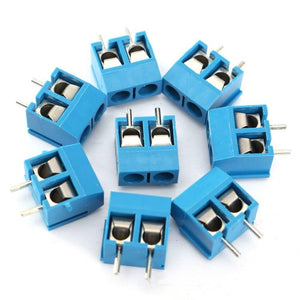

2 Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch (blue)

2 Pin Plug-in Screw Terminal Block Connector 5.08mm Pitch (blue)

Regular price Rs 15
Regular price Sale price Rs 15
Sale Sold out
Shipping calculated at checkout.

SKU:b616

NOTIFY ME WHEN IN STOCK

2 Pin Screw PCB Terminal Block Connector 5mm Pitch

MATERIAL

Pitch:5.0mm

Poles: 2P

Screw: M2.5 Steel Zinc plated

Wire guard: phosphor bronze, Ni plated or stainless steel

Pin header: Brass, Tin plated

Housing: PBT, UL94V-0

ELECTRICAL

Rated current: 16A

Withstanding voltage: AC200V/1Min

MECHANICAL

Temp range: -30~+120 Celsius

MAX Soldering: +150 Celsius for 5sec

Torque: 0.4 Nm (3.5lb.in)

Strip length: 4.5-5mm

For AWG 22-14

MAX 2.5MM2

PACKAGE INCLUDED:

1PC 2PIN SCREW TERMINAL BLOCK CONNECTOR 5.08MM

View full details

Description

2 Pin Screw PCB Terminal Block Connector 5mm Pitch

MATERIAL

Pitch:5.0mm

Poles: 2P

Screw: M2.5 Steel Zinc plated

Wire guard: phosphor bronze, Ni plated or stainless steel

Pin header: Brass, Tin plated

Housing: PBT, UL94V-0

ELECTRICAL

Rated current: 16A

Withstanding voltage: AC200V/1Min

MECHANICAL

Temp range: -30~+120 Celsius

MAX Soldering: +150 Celsius for 5sec

Torque: 0.4 Nm (3.5lb.in)

Strip length: 4.5-5mm

For AWG 22-14

MAX 2.5MM2

PACKAGE INCLUDED:

1PC 2PIN SCREW TERMINAL BLOCK CONNECTOR 5.08MM
