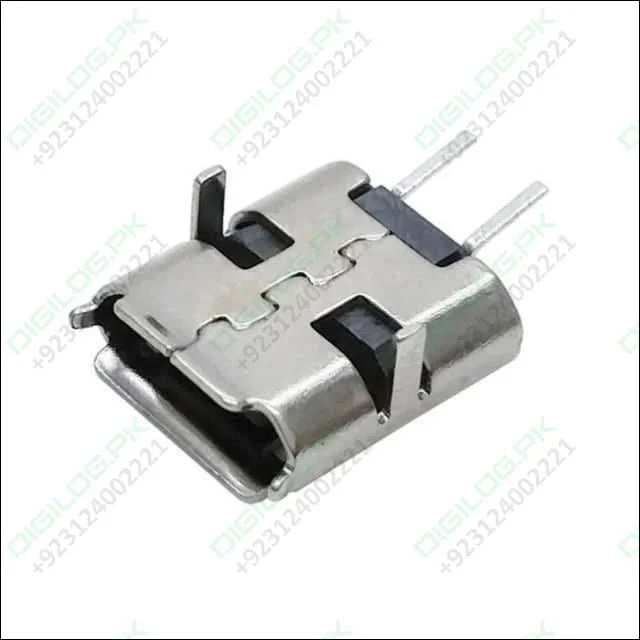

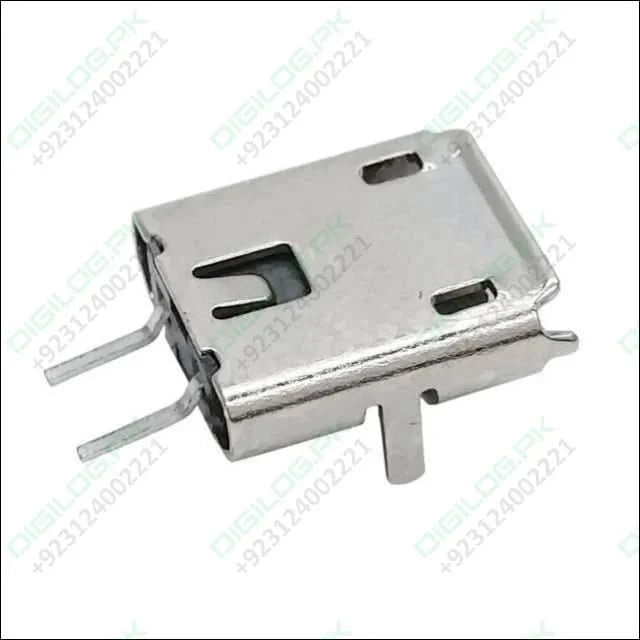

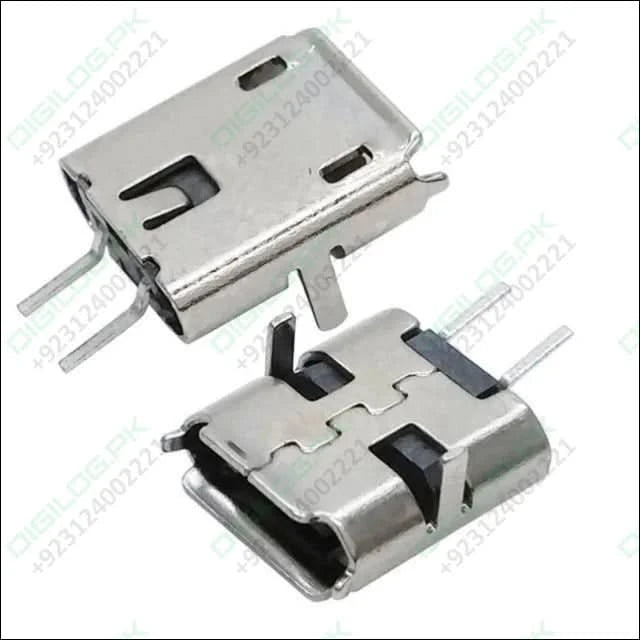

Pcb Mount Micro Usb Connector
Pcb Mount Micro Usb Connector
Pcb Mount Micro Usb Connector

Pcb Mount Micro Usb Connector

Rs 10 PKR
SKU: B367,L500,Th250
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

This is female type micro USB connector for charging port or power supply port which can be applied to Power, PCB baord, Tablet charging ports

 Product name  2 Pin Female Micro USB connector
 Model nummber  AMUSB-2PF06
 Insert force  35N Max
 Withdraw force

 10N Min.Initial 8-20N after 3000 cycles



Specification

 Current Rating  1.0A
 Voltage Rating  30V
 Durability  3000 cycles min
 Withstand Voltage  100V AC Min
 Contact Resistantce  30MΩ Max.Initial;40 MΩ Max after 3000 cycles
 Insulation Resistance  100MΩ Min
 Working Temperature  -30℃—+80℃
 Rubber Core  LCP UL94V-0
 Terminal  C2680R-H,Nickel plated,Gold plated1μ"
 Housing  C2680R-H,Surface of Nickel Plating100μ
 Shipment  Small order by express,mass order by ship or air
 After-sale Service  365 days warranty
 Payment Terms

 L/C,T/T,Western Union and Paypal 30% deposit and the

 balance  before shipment
