2.54mm 4-pin Male Female Connector

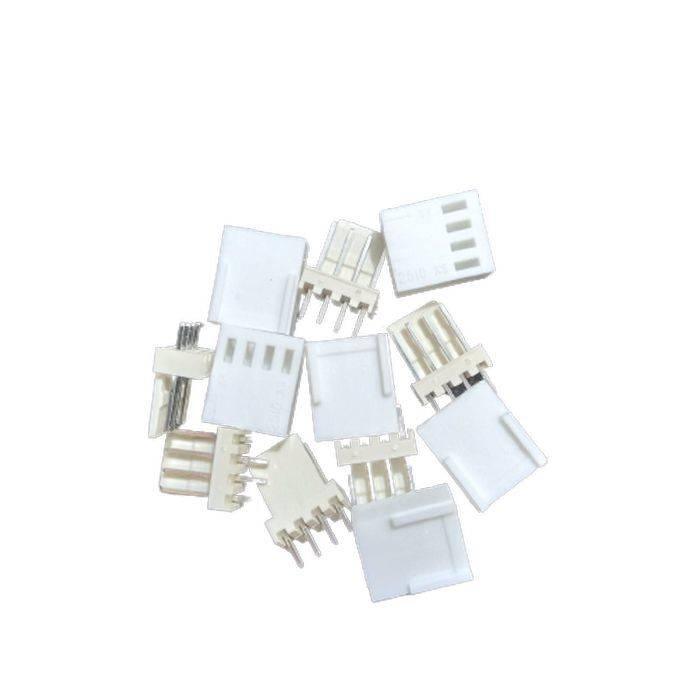

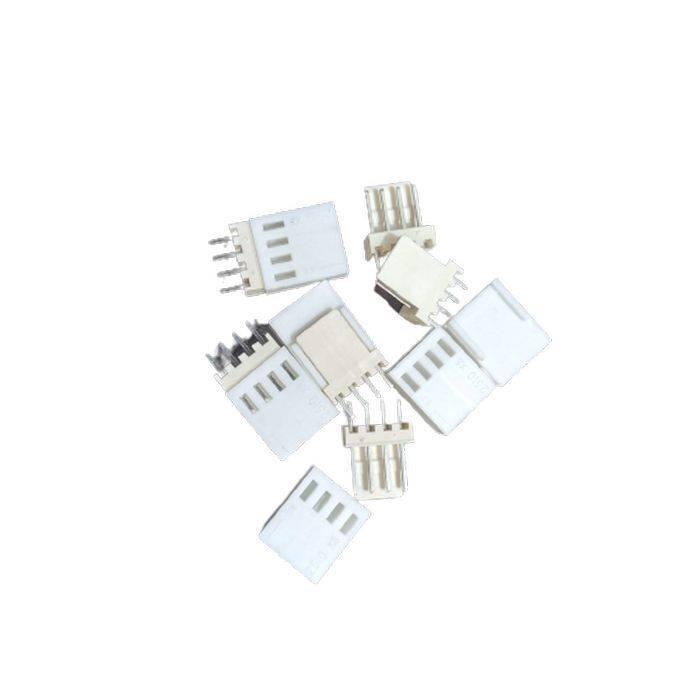

A 2.54mm 4-pin male-female connector is a type of electrical connector commonly used in various electronic applications. It consists of two separate parts: the male connector and the female connector.

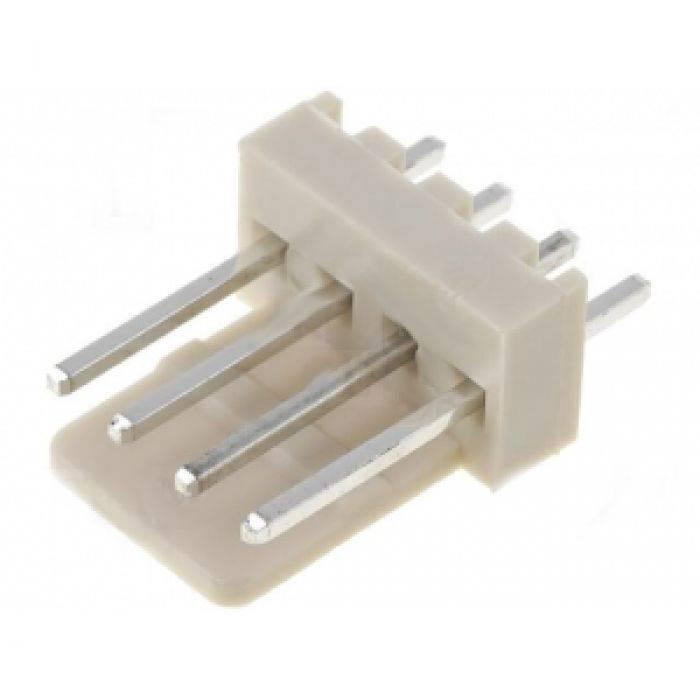

The male connector typically has four pins or terminals, which are designed to fit into corresponding slots or receptacles on the female connector. These pins are usually arranged in a linear pattern. Each pin is usually made of metal and is designed to provide a secure electrical connection when inserted into the female connector.

The female connector, on the other hand, features four slots or receptacles that are designed to receive the pins of the male connector. These slots are also typically arranged in a linear pattern, matching the pins on the male connector. When the male and female connectors are mated together, the pins on the male connector make contact with the corresponding slots in the female connector, creating an electrical connection.

The 2.54mm measurement refers to the pitch or spacing between the pins or slots on the connector. In this case, it means that the distance between each pin or slot is 2.54mm. This measurement is standardized and widely used in the electronics industry.

The 4-pin configuration means that the connector has four pins and slots. This allows for the transmission of electrical signals or power between devices. The specific function or purpose of the connector can vary depending on the application it is used for.

Overall, a 2.54mm 4-pin male-female connector is a small, compact, and widely used connector that provides a reliable electrical connection between electronic devices. It is commonly found in applications such as circuit boards, computer peripherals, robotics, and many other electronic systems.

Specification :

The specifications of a 2.54mm 4-pin male-female connector can vary depending on the manufacturer and the specific product line. However, here are some common specifications you might find:

• Pitch: 2.54mm (0.1 inches)

  This refers to the distance between each pin or slot in the connector. It is a standardized measurement commonly used in electronics.

• Number of pins: 4

  The connector has four pins on the male side and four corresponding slots on the female side.

• Pin/Slot configuration: Linear

  The pins on the male connector and the slots on the female connector are arranged in a linear pattern, typically side by side.

• Contact material: Metal alloy

  The pins and slots are usually made of a metal alloy, such as brass or phosphor bronze, to provide good conductivity and durability.

• Voltage rating: Varies

  The voltage rating can vary depending on the specific connector and its intended application. It is important to check the datasheet or product specifications for the specific voltage rating of the connector you are using.

• Current rating: Varies

  Similarly, the current rating can vary depending on the connector and its application. It is crucial to review the datasheet or product specifications to determine the appropriate current rating for your specific use case.

• Termination method: Solder or crimp

  The connectors may be designed for soldering or crimping onto wires or PCBs (Printed Circuit Boards). The specific termination method will depend on the connector design and its intended use.

• Housing material: Varies

  The connector housing, which provides mechanical support and insulation, can be made of various materials such as plastic, thermoplastic, or thermoset.

• Mounting type: Through-hole or surface mount

  Depending on the application, the connector can be designed for through-hole mounting, where it is inserted into drilled holes on a PCB and soldered, or surface mount mounting, where it is soldered directly onto the surface of the PCB.

It's important to note that these specifications are general guidelines, and there may be variations or additional features depending on the specific connector model or manufacturer. Always refer to the datasheet or product specifications provided by the manufacturer for precise information about a particular connector.

Package Included:

1x 2.54mm 4-Pin Male Female Connector with crimps
