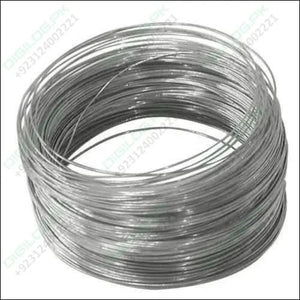

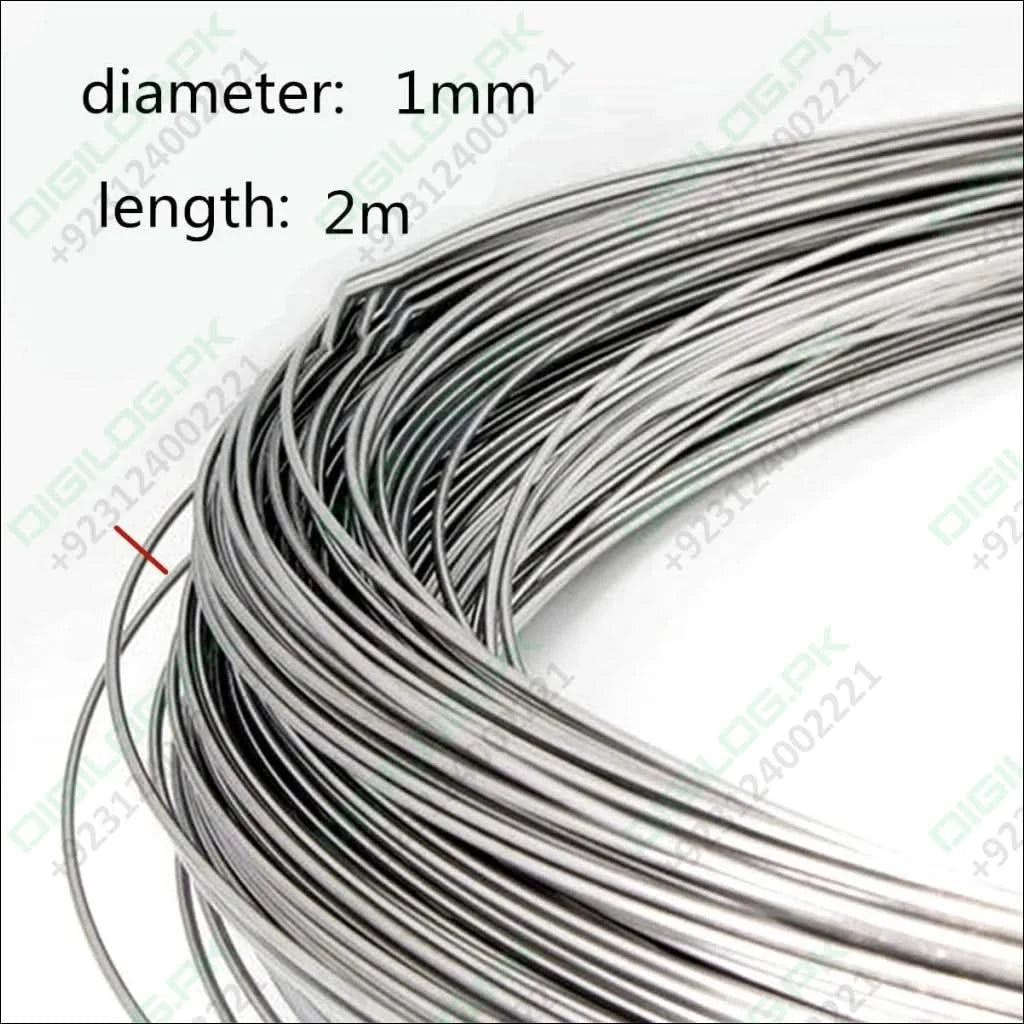

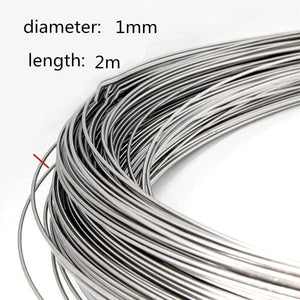

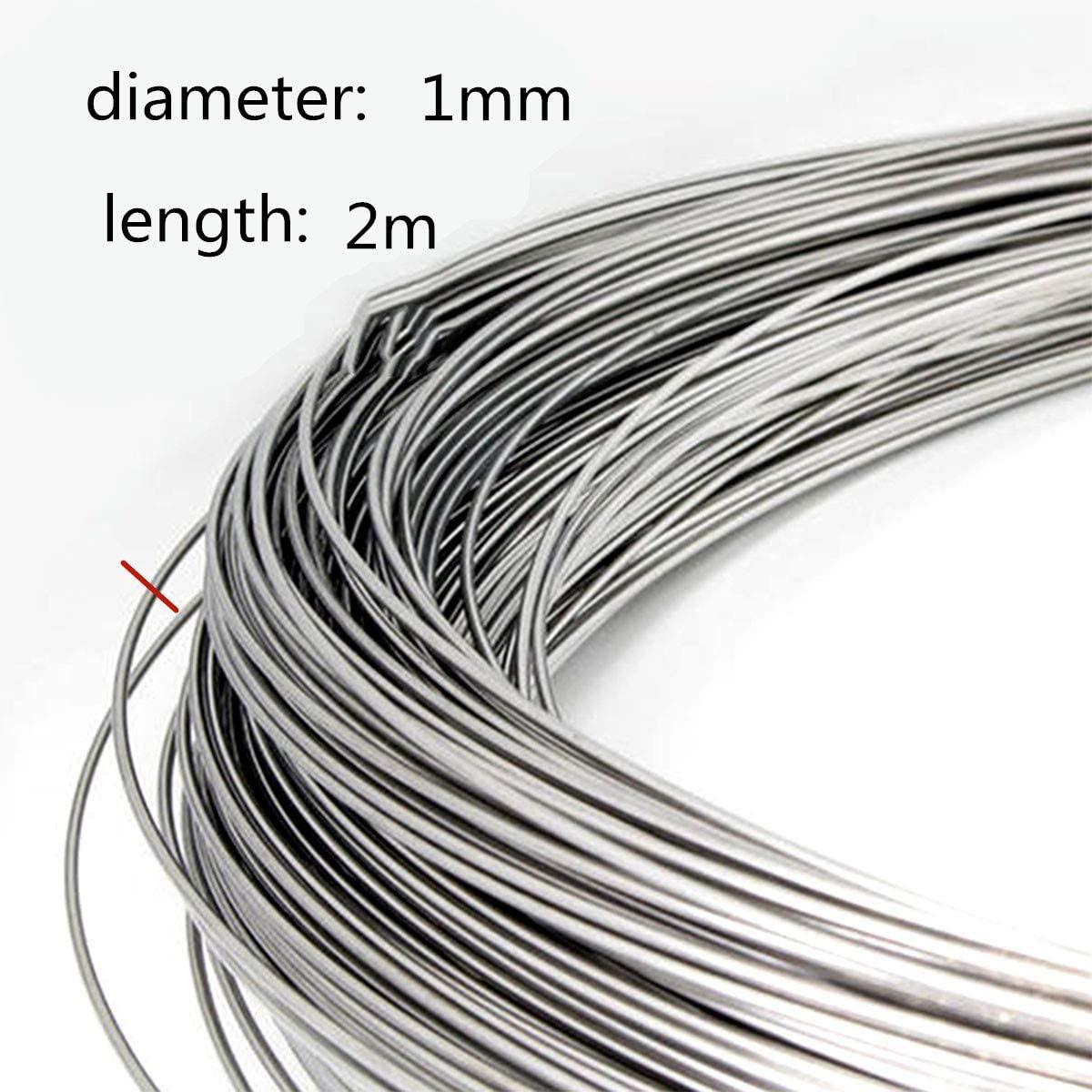

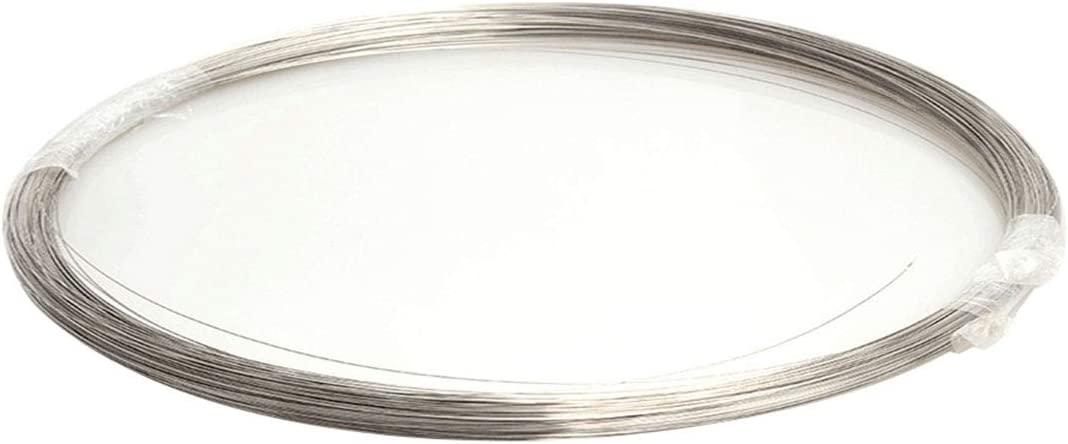

1mm 1 Meter 20 Awg Nichrome Wire Resistance Nickel Chrome 80/20 Heating Wire 1.94 Ohm/meter Ocr21a14

Master high-temperature applications with our 1mm 1 Meter Nichrome 80/20 heating wire! This durable and resistant wire is perfect for demanding environments. Its 80/20 nickel-chrome composition ensures excellent performance at high temperatures. With a resistance of 1.94 ohms/meter and model number OCr21A14, it's ideal for heating elements, resistors, and thermocouples. Order now and experience the reliability of this premium heating wire.

FeCrAl wires are made of iron chromium aluminum base s containing small amounts of reactive elements. Such as yttrium and zirconium. The high aluminum content, in combination with the high chromium content causes the scaling temperature to increase up to 1425ºC (2600ºF ). Fe Cr Al s also have excellent oxidation properties at 800-1300ºC.  Because of the formation of a highly protective Al2O3 scale.

FeCrAl wires has high resistance, low temperature coefficient of electric resistance, high operating temperature, and good corrosion resistance under high temperature, especially under the atmosphere containing sulfides. FeCrAl wire possesses good oxidation and heat resistance. FeCrAl wires are creep-resistant over a wide range of temperature, which is another of their important qualities.

FeCrAl wires have several potential advantages. Such as lower raw-material cost, superior oxidation resistance, lower density, and lower thermal expansion coefficient than the Ni-base super-s. However, FeCrAl wire has less hot strength than nickel s but much higher melting point and lower price.

After being heat the 's plasticity becomes bad, easy brittleness, not to be easy to weld. However, If can be reasonably use also be a kind of ideal electric heating material.

Applications of  1 Meter Nichrome heating wire :

FeCrAl wires intended for prolonged operation at high temperature. FeCrAl wires are use chiefly for heating elements in the electrical industry and wide range of high-temperature oxidation environments. Such as industrial electric furnace, heating furnace, nuclear reactor, petroleum refinery and automotive exhaust system, household electrical appliance, electrical oven, electrical heater, infrared settings and far infrared ray device.

FeCrAl wires' ability to withstand oxidation, the wires can be employee under high-temperature conditions. While their good ductility enables them to be processed into wire and strip by hot and cold working.

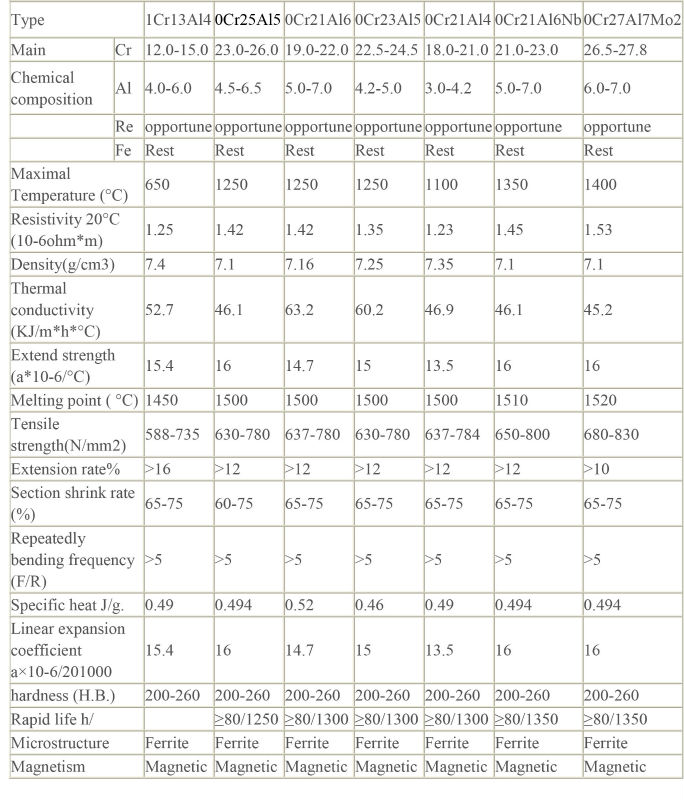

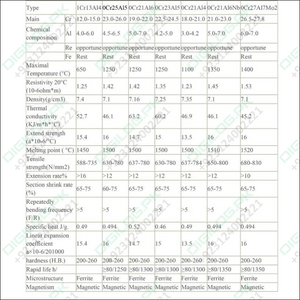

Main Property of FeCrAl

Package Includes:

• 1 x 1mm 1 Meter 20 Awg Nichrome Wire Resistance Nickel Chrome 80/20 Heating Wire 1.94 Ohm/meter Ocr21a14
