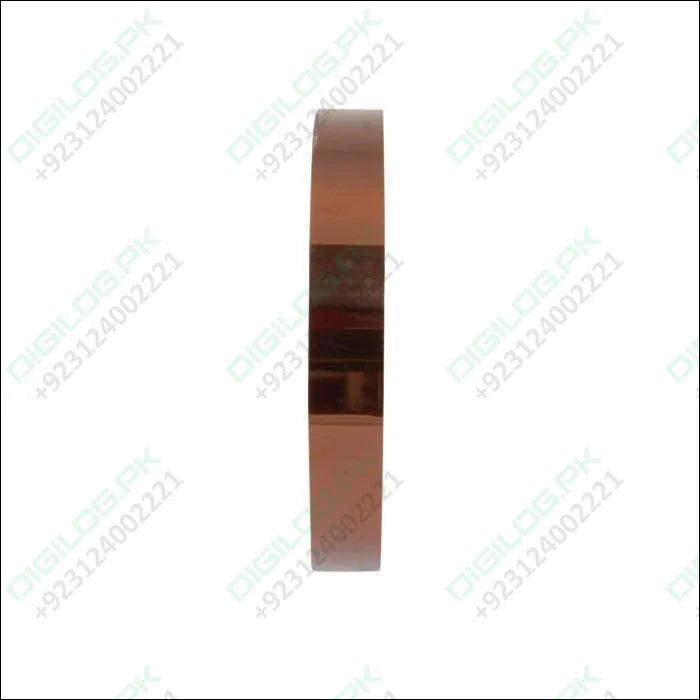

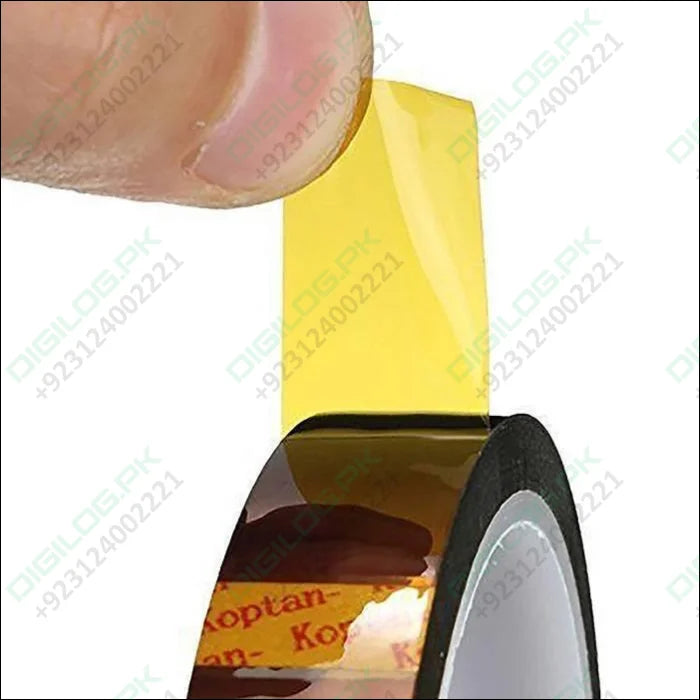

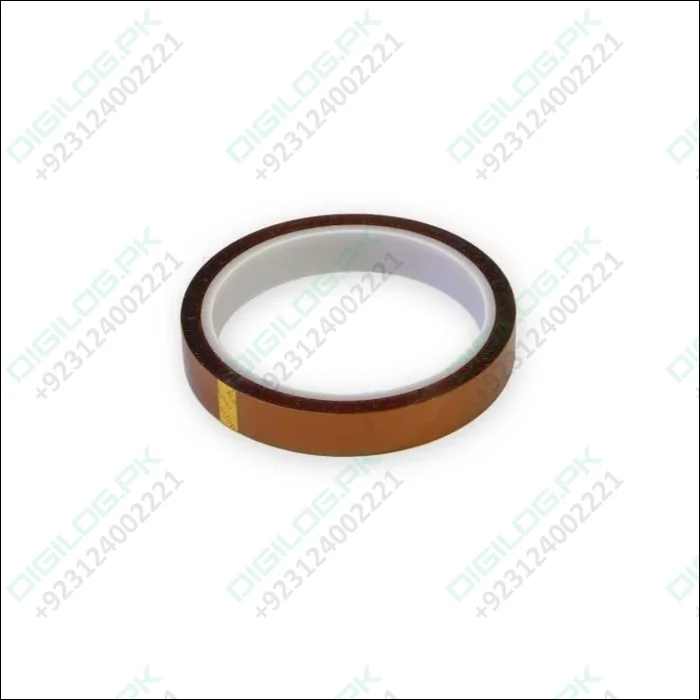

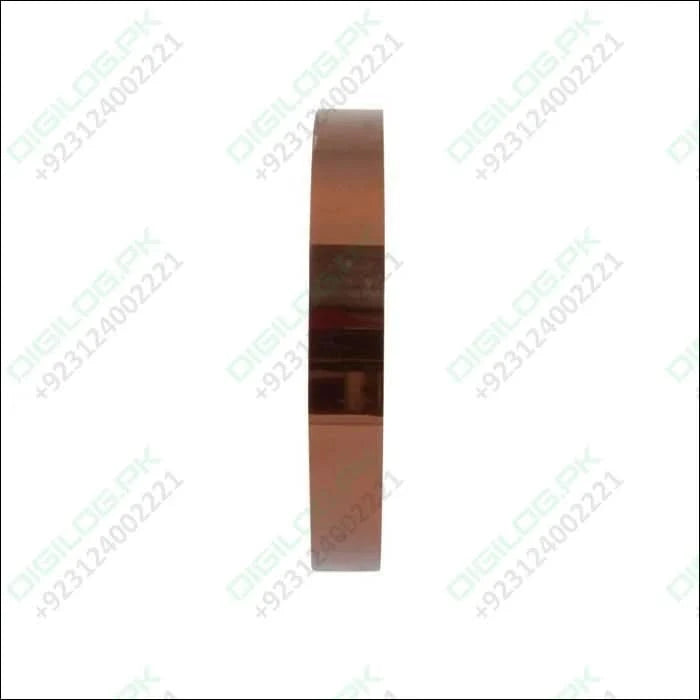

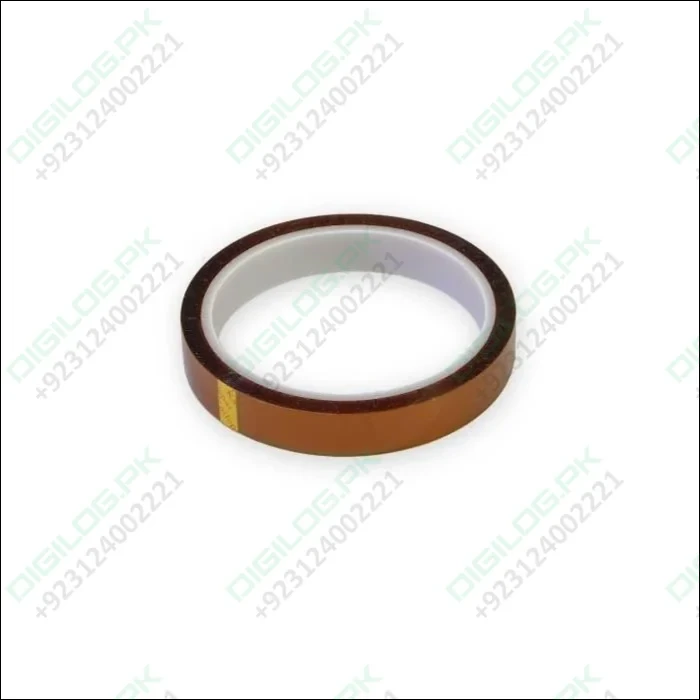

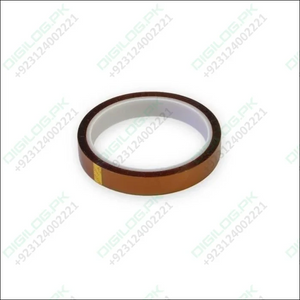

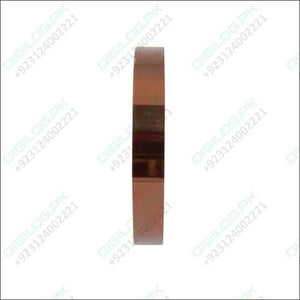

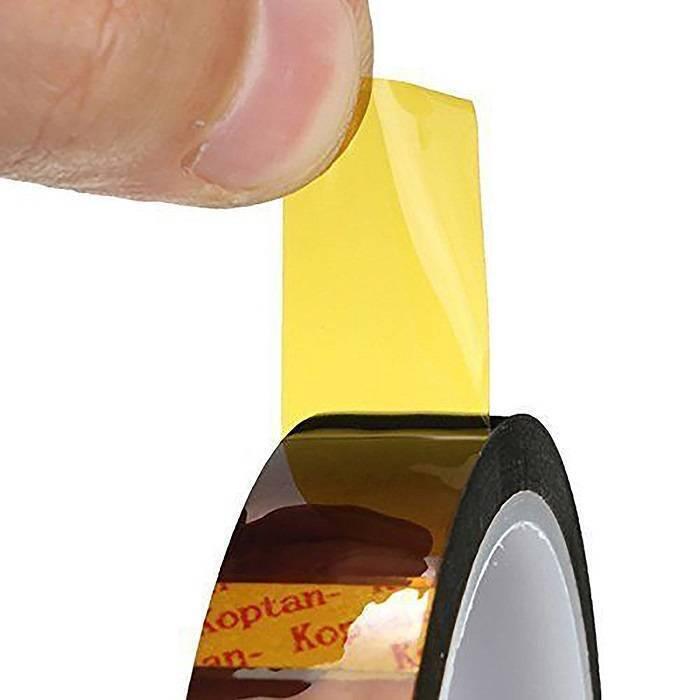

15mm Kapton High Temperature Heat Resistant Polyimide Film Adhesive Tape

15mm Kapton High Temperature Heat Resistant Polyimide Film Adhesive Tape

Regular price Rs 330
Regular price Sale price Rs 330
Sale Sold out
Shipping calculated at checkout.

SKU:B735,krt13,L10,TH5

NOTIFY ME WHEN IN STOCK

15mm  Kapton Heat Resistant Polyimide Film Adhesive Tape for protection (masking) of connectors at wave soldering. Kapton tape width 15mm is as well as for other applications in electronics. This heat resistance adhesive tape may be permanently used with temperature up to 180°C and for a short time with temperature up to 370°C. Moreover, the magic tapes are high-resistant to acids and alkalis. The polyimide tapes don't melt, comply with the highest class of self-extinguishing UL94-V0. The foils embody high stability of size. Highly resistant against UV, alpha, beta, gamma radiation - that's why these high-temperature resistance tapes are used for the protection of solid-state systems against these radiations. Dielectric strength approx. 200 [kV/mm], loss factor 0,0025.

Features Of 15 mm Kapton Tape Heat Resistant Polyimide Film Adhesive Magic Sticking Tape:

  • High-temperature resistance, solvent resistance, stable and reliable performance characteristics.
  • It has excellent release properties, without leaving adhesive residue
  • Also available in any widths or Die-cuts
  • Available as Die-Cuts any size or shape
  • Mainly used for painting, sealing, footwear, packaging fixed, construction, and decoration industries.

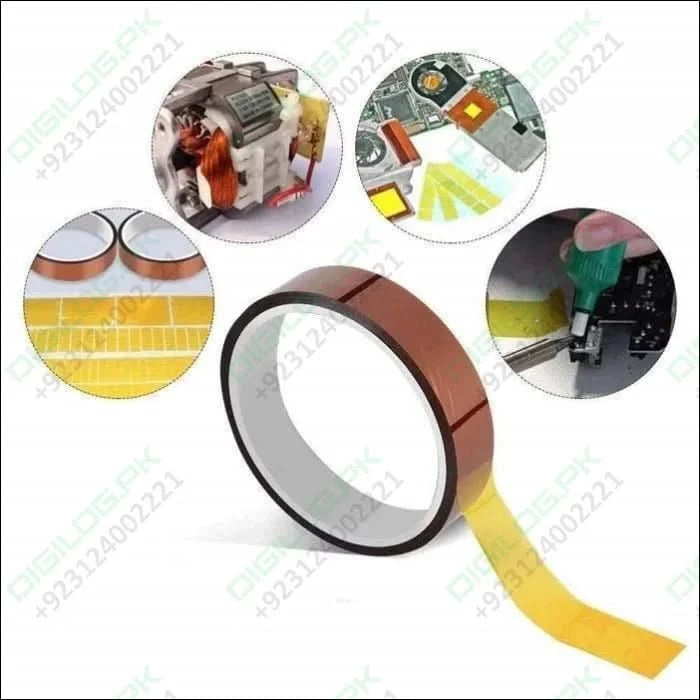

  • Widely used as electrical insulation for the electronics industry in transformers, motors, coils, capacitors, and variable frequency power supply

Specifications Of Kapton Tape BGA High Temp Heat Resistant Polyimide Tape:

  1. Color: Tawny
  2. Length: Approx. 20 meter
  3. Width: 15mm
  4. Thickness: 0.055mm
  5. Elongation: 50%
  6. Tensile Strength: ≥42N / 25mm
  7. Peel Force: ≥26N / 25mm
  8. Holding Power: 48H
  9. Temperature resistance: 300℃(short-term);260℃(long-term)
  10. Weight: 40g

Package Includes:

  • 1 x 15mm  Kapton High-Temperature Heat Resistant Polyimide Film Adhesive Tape

Best online shopping website for 15mm x 20m Kapton High-Temperature Heat Resistant Polyimide Film Adhesive Tape Magic Sticking Glue Tape at a cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Peshawar Rawalpindi and all over Pakistan.

15mm x 33m Kapton High Temperature Heat Resistant Polyimide15mm x 33m Kapton High Temperature Heat Resistant Polyimide15mm x 33m Kapton High Temperature Heat Resistant Polyimide15mm x 33m Kapton High Temperature Heat Resistant Polyimide
