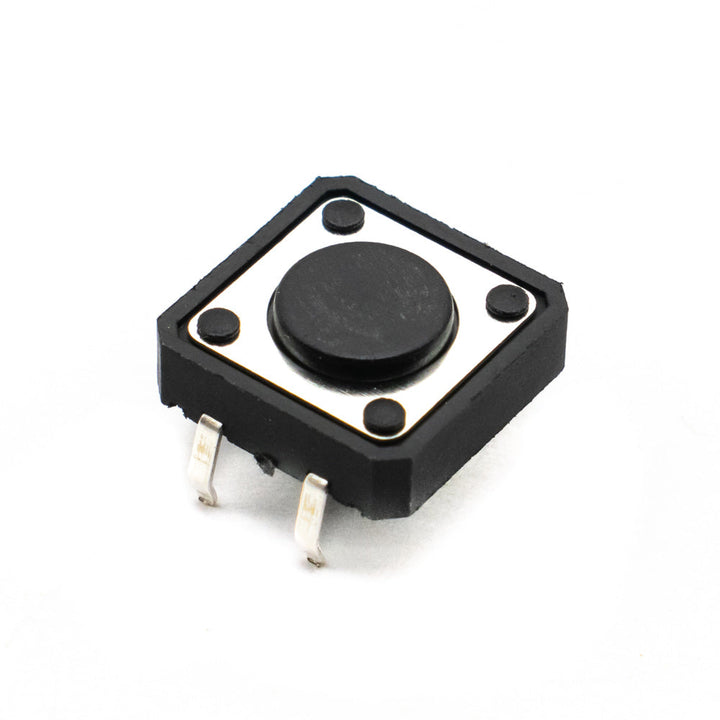

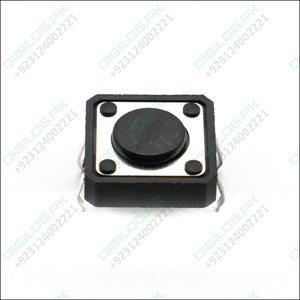

12x12x4mm Tactile Push Button - shown as a black square tactile switch with a round center actuator and four metal pins on a white background.

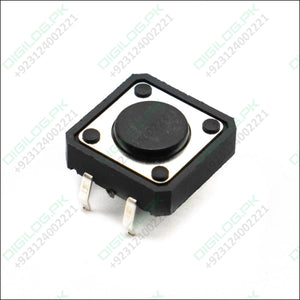

12x12x4mm Tactile Push Button - a square black electronic switch with a central circular button and four metal pins extending from the base.

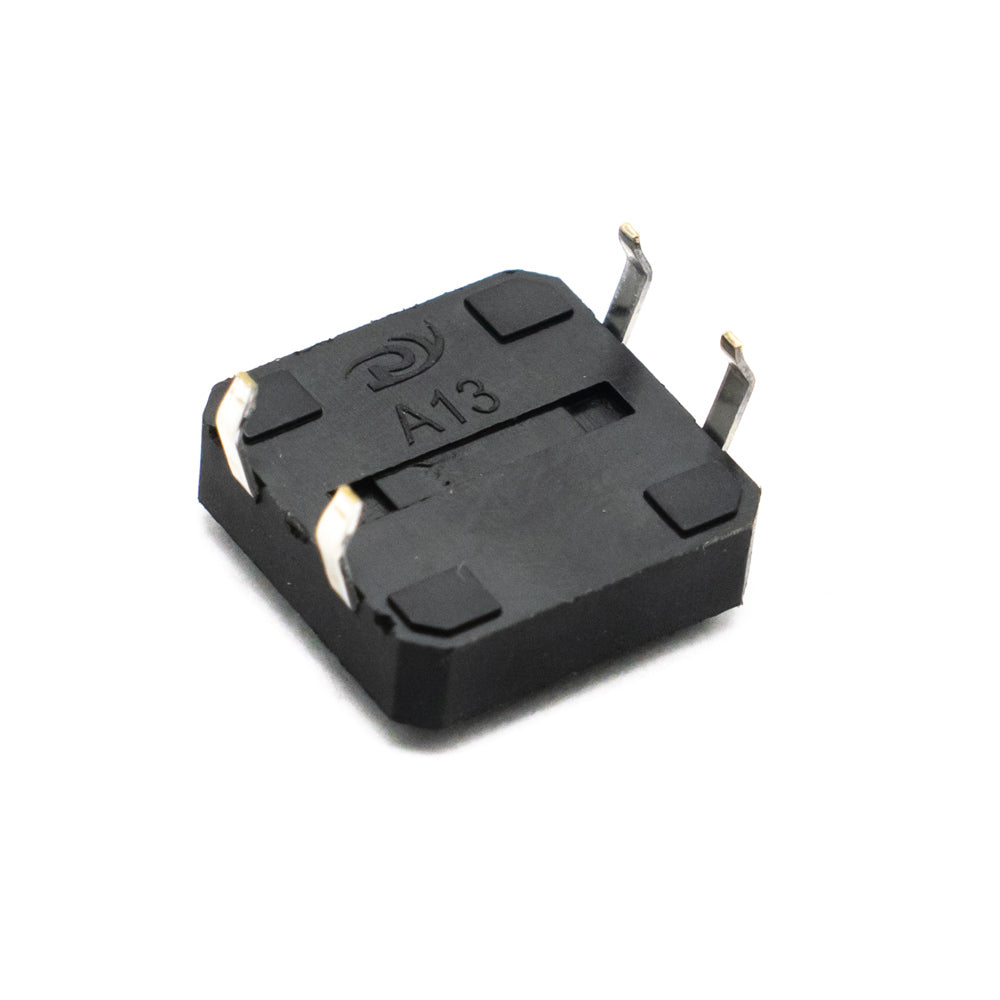

12x12x4mm Tactile Push Button - a black square-shaped switch with four metal pins and the text "A13" printed on the top surface.
12x12x4mm Tactile Push Button - shown as a black square tactile switch with a round center actuator and four metal pins on a white background.
12x12x4mm Tactile Push Button - a square black electronic switch with a central circular button and four metal pins extending from the base.
12x12x4mm Tactile Push Button - a black square-shaped switch with four metal pins and the text "A13" printed on the top surface.

12x12x4mm Tactile Push Button

Sale price Rs 20
SKU: b13
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

12x12x4mm Tactile Push Button - shown as a black square tactile switch with a round center actuator and four metal pins on a white background.
+
4mm Red Colour LED - a single red-tinted light-emitting diode with two long metal leads extending from the base.
+
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le - Labelled diagram of the ESP32-S3-DevKitC board showing the WROOM-1 module, power chip, WS2812 RGB LED, RST and BOOT buttons and dual USB-C ports.
+
12x12x9mm Tactile Push Button Switch - a square black electronic component with a central circular button and four metal pins on a grey textured surface.
12x12x9mm Tactile Push Button Switch - a square black electronic component with a central circular button and four metal pins on a grey textured surface.
This item: 12x12x4mm Tactile Push Button -
Sale price Rs 20
4mm Red Colour LED - a single red-tinted light-emitting diode with two long metal leads extending from the base.
4mm Red Colour LED -
Sale price Rs 10
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le - Labelled diagram of the ESP32-S3-DevKitC board showing the WROOM-1 module, power chip, WS2812 RGB LED, RST and BOOT buttons and dual USB-C ports.
ESP32-S3 Devkitc-1 N16R8 Development Board – 16MB Flash, 8MB Psram, Wi-Fi & Bluetooth 5.0 Le -
Sale price Rs 1,870
12x12x9mm Tactile Push Button Switch - a square black electronic component with a central circular button and four metal pins on a grey textured surface.
12x12x9mm Tactile Push Button Switch -
Sale price Rs 10
Price for all:
Sale total price Rs 1,910

Pickup available at Digilog Electronics

Usually ready in 2 hours

12x12x4mm Tactile Push Button - shown as a black square tactile switch with a round center actuator and four metal pins on a white background.

12x12x4mm Tactile Push Button

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
12x12x4mm Tactile Push Button - shown as a black square tactile switch with a round center actuator and four metal pins on a white background.
12x12x4mm Tactile Push Button
Sale priceRs 20

12x12x4mm Tactile Push Button is Normally Open switch. The tactile button connects the circuit for the time it is kept pressed and as soon as it is released the circuit is disconnected. The Tactile Push-button has 4 pins. Two pins are connected internally. These Tactile push-buttons feature a through-hole design. Its high-precision mechanism offers acute operation and long life.

Specification
Switch Type Momentary
Colour Black
Mounting Type Through Hole
Contact Resistance 30mΩ
Insulation Resistance 100MΩ
Actuation Force 1.6 to 2.5N
Actuation Travel 0.3mm
Operating Temperature -35°C to 85°C
Size 12x12x4mm
Country of Origin China
