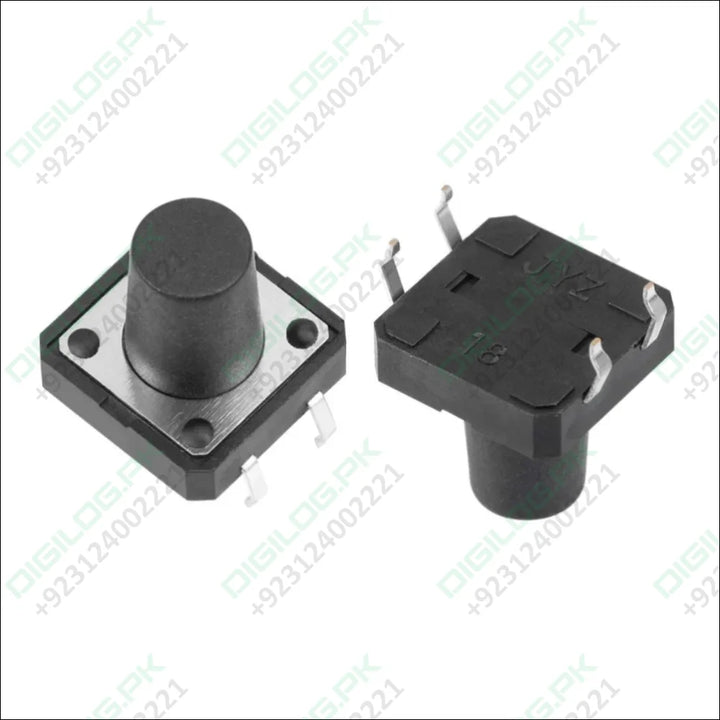

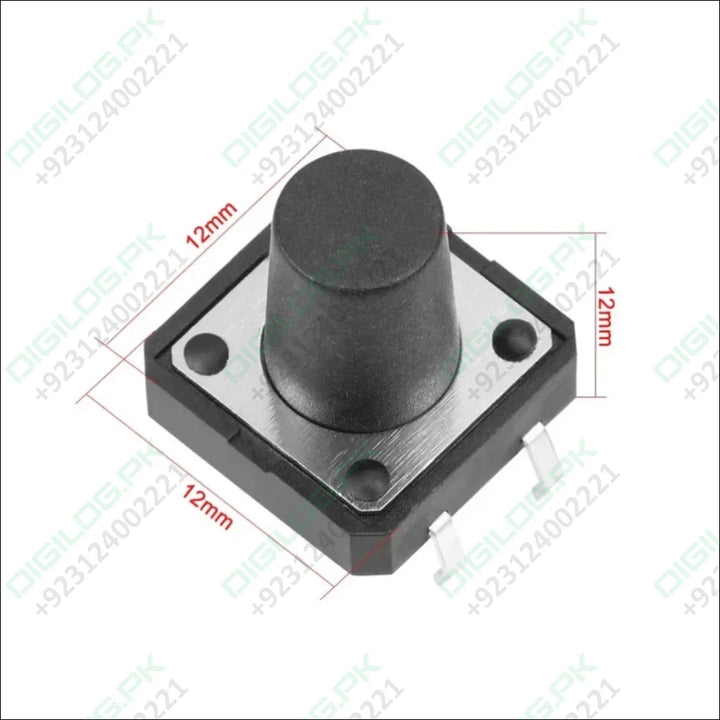

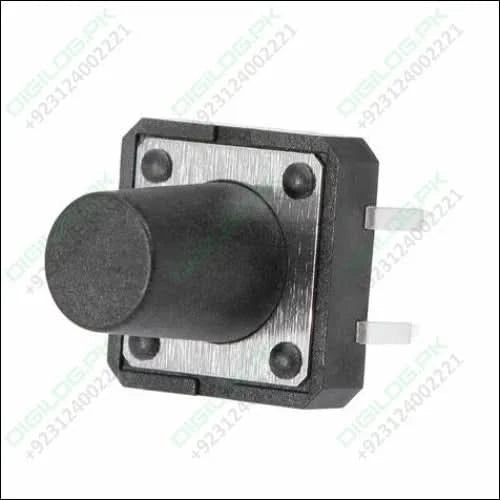

12x12x12mm Tactile Push Button Switch

12x12x12mm Tactile Push Button Switch

Regular price Rs 12
Regular price Sale price Rs 12
Sale Sold out
Shipping calculated at checkout.

SKU:B54

NOTIFY ME WHEN IN STOCK

12x12x12 mm Tactile Push Button Switch is widely use as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This versatile switch provides clear confirmation of button presses with a delightful tactile response, perfect for control panels, arcade button replacements, computer keyboards, and a wide range of electronic applications

This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Features of  Tactile Push Button Switch:

  1. Through-hole design.
  2. Shaft Shape: Round
  3. High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  4. The long life of 300,000 cycles realized despite the high operating force
  5. Middle stroke (1.05mm)
  6. Used in the fields of electronic products, household appliances and more.
  7. High precision mechanism design offers acute operation and long service life.
  8. Good electrical conductivity.

Package Includes :

1 x 12 x 12 x 12mm Tactile Button Switch

View full details

Description

12x12x12 mm Tactile Push Button Switch is widely use as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This versatile switch provides clear confirmation of button presses with a delightful tactile response, perfect for control panels, arcade button replacements, computer keyboards, and a wide range of electronic applications

This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

Features of  Tactile Push Button Switch:

  1. Through-hole design.
  2. Shaft Shape: Round
  3. High operating force (3.0N or 3.6N) suited to automotive equipment requirements
  4. The long life of 300,000 cycles realized despite the high operating force
  5. Middle stroke (1.05mm)
  6. Used in the fields of electronic products, household appliances and more.
  7. High precision mechanism design offers acute operation and long service life.
  8. Good electrical conductivity.

Package Includes :

1 x 12 x 12 x 12mm Tactile Button Switch
