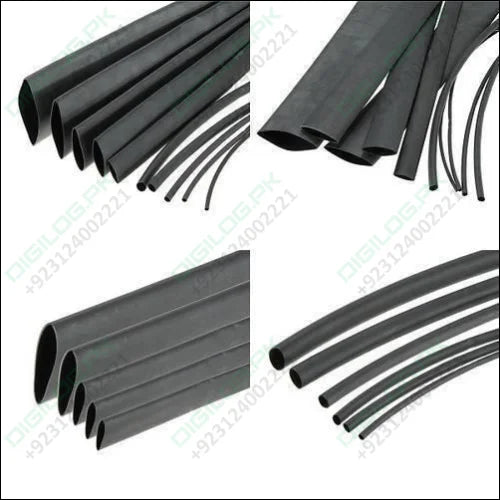

10mm Heat Shrink Sleeve

10mm Heat Shrink Sleeve is a 3:1 flexible tubing offering the advantages of integral, adhesive-lined construction. In addition Heat Shrink Tubing & Sleeve is made from flexible polyethene with an internal layer of special thermoplastic adhesive.

The heat-shrinkable outer wall is cross-link while maintaining the high flow and excellent adhesion of the inner sealant liner. When heated in excess of 121 deg C (250 deg F), the tubing rapidly shrinks to a skintight fit, forcing the melted adhesive lining to flow and cover the substrate.

However the adhesive forms a flexible bond with a wide variety of rubbers, plastics, and metals. Upon cooling, the adhesive solidifies, forming a permanent, non-drying, flexible and water-resistant barrier. Adhesive reflow will occur at temperatures above 80 deg C.

Features of Heat Shrink Tubing & Sleeve:

• 3:1 shrinkage ratio, suitable for irregular shape and sealing.
• Medium wall thickness, while maintai flexibility, enhance mechanical protection strength.
• The adhesive layer can be bonded to plastic, rubber and metal.
• The initial temperature is 70 C, and the  temperature is 125 C.
• the melting temperature of the inner layer: 70 C -100 C;
• The range of working temperature: -45 C ~ 145 C

Specifications Of Heat Shrink Tubing & Sleeve:

1. Colour: Black
2. Material: Polyethylene
3. Shrink Ratio: 3:1
4. Temp: -45C up to +145C
5. Longitudinal Shrinkage (Lengthwise): Less than 8 %, Insulating Voltage
6. Capability: 600 volts
7. Adhesive Adheres to Most plastic, metals, rubber, Continuous Operating

Package Includes:

• 1 x Heat Shrink Tubing & Sleeve
