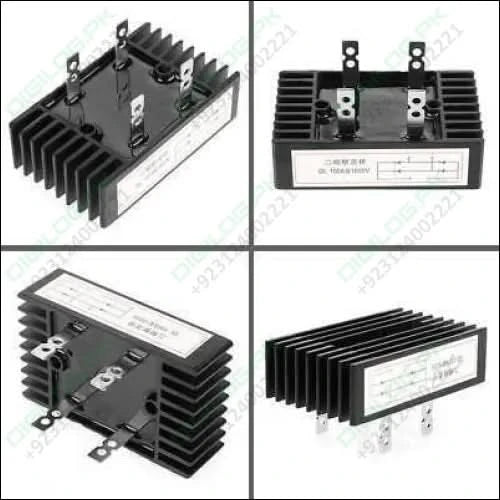

China Manufactured 100A Amp 1600V Volt Single Phase Diode Bridge Rectifier Metal
100A Amp 1600V Volt Single Phase Diode Bridge Rectifier Metal.
Features of Single Phase Diode Rectifier:
- High-quality bridge rectifiers used for conversion of an alternating current input into a direct current output.
- Well welded structure with good temperature and power cycle ability ensures a more stable performance.
- Designed for single phase rectification, output DC current is 150A.
- It has a large over-current capacity, good heat dissipation and low voltage drop.
- This high power bridge rectifier can be widely used for power supply.
Specifications:
- Output Current: 100A
- Repetitive Peak Reverse Voltage(VRRM): 1600V
- Repetitive Peak Inverse Current(IRRM): 10mA
- Isolation Voltage(Viso): 2500VAC
- VTM: 1.5V
- ITM: 100A
- Phase: Single Phase
- Terminals: 4
- Max. Junction Temperature: 150℃
- Size: 78 x 40 x 35mm / 3.07 x 1.57 x 1.37″
- Quantity: 1
Package Includes:
- 1 x Bridge Rectifier
