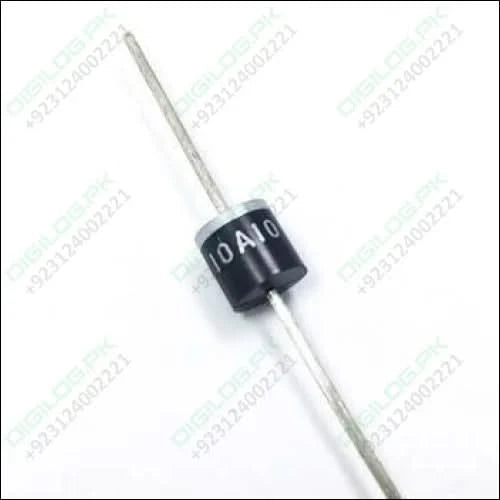

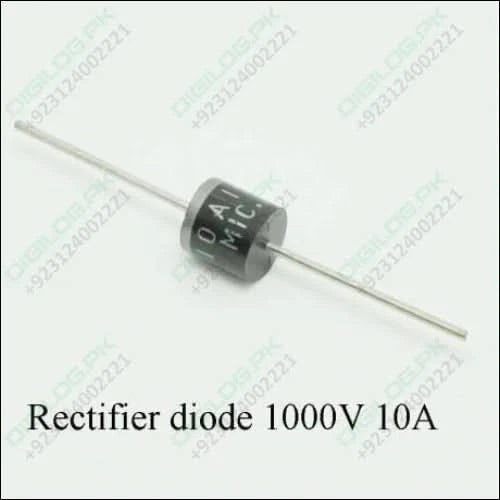

10A10 Diode
10A10 Diode

10A10 Diode in Pakistan

Rs 10 PKR
SKU: B567,L100,Th50,KRT
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

The 10A10 Rectifier Diode is an indispensable component for converting alternating current (AC) to direct current (DC) in your electronic circuits. Whether you’re designing power supplies, battery chargers, or rectifiers, this ensures efficient energy conversion.

Key Features:

  • High Surge Current Capability: Hence With its robust design, the 10A10 diode can handle sudden current spikes without compromising performance.
  • Low Leakage: Minimize energy loss with its low leakage characteristics.
  • Low Forward Voltage Drop: The diode’s diffused junction design ensures efficient energy conversion.
  • High Current Capability: Rated for up to 10 amps, it’s suitable for various applications.
  • Maximum Voltage Ratings:
    • Recurrent Peak Reverse Voltage (VRRM): 1000V
    • RMS Voltage (VRMS): 700V
    • DC Blocking Voltage (VDC): 1000V
  • Operating and Storage Temperature Range: From -55°C to +150°C.

Mechanical Features:

  • Case: Molded plastic black body, ensuring durability and also protection.
  • Epoxy: UL flammability classification 94V-O, making it safe for use.
  • Lead: MIL-STD-202E method 208C guaranteed for reliable connections.
  • Mounting Position: Versatile— also can be mounted in any orientation.
  • Weight: Lightweight at 2.08 grams.

Applications:

  1. Battery Chargers: Although Use the 10A10 diode in battery charging circuits for efficient power transfer.
  2. DC Power Supplies: It rectifies AC voltage to provide stable DC power.
  3. Inverters: Employ it to convert DC back to AC for various applications.
  4. Free-Wheeling Diodes: Protect other components by using it as a free-wheeling diode.
  5. Snubber Networks: Enhance circuit performance by incorporating the 10A10 diode in snubber networks.

Why Choose the 10A10 Rectifier Diode?

  • Reliability: Trusted by engineers and hobbyists worldwide.
  • Energy-Efficient: Low forward voltage drop minimizes energy losses.
  • Easy Integration: Hence standard lead configuration for straightforward incorporation into your designs.

Get Your 10A10 Diode Today!

Visit Digilog.pk to purchase the 10A10 rectifier diode at an affordable price. We offer fast delivery across Pakistan, so you can power your projects with confidence. Don’t miss out on this essential component! 🛒🔌
