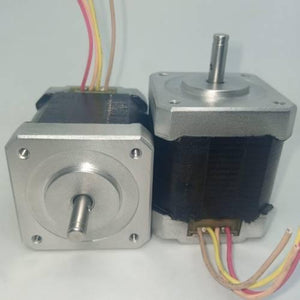

NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - two silver and black square-bodied stepper motors with protruding metal shafts and four multi-coloured wires extending from each.

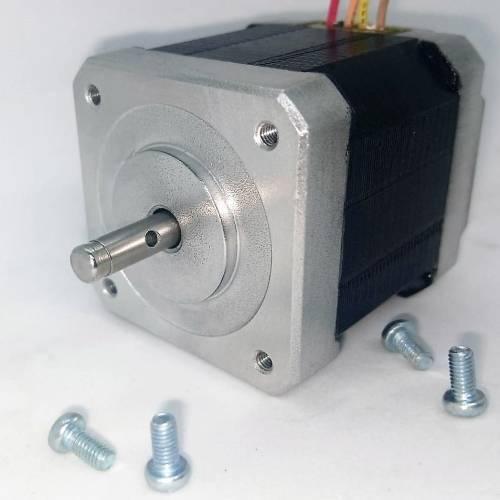

NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver and black square motor with a metal shaft and four colored wires, shown with four small mounting screws beside it.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver metal shaft, a square black body with four colored wires, and four small mounting screws placed to the side.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - shown as a central component connected by arrows to a CNC machine, a 3D printer, and a robotic arm.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - close-up view of the silver metal motor body, shaft, and four colored wires, partially wrapped in gold protective packaging.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver metal shaft, a black rectangular body, and four colored wires, with dimensions 5mm and 50mm indicated.

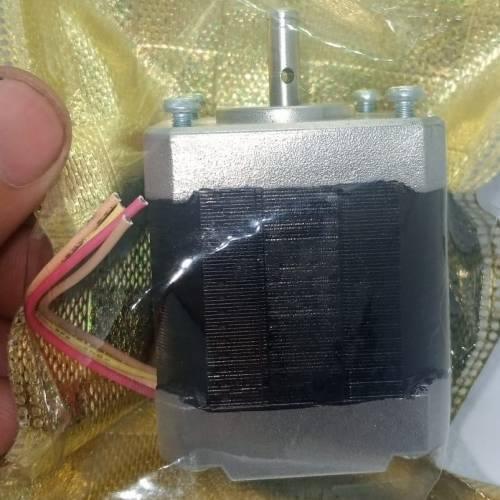

NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver square-bodied motor with a metal shaft and four colored wires, shown wrapped in clear plastic packaging.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - two silver and black stepper motors shown side-by-side, one displaying its metal shaft and the other its four colored wires.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - two silver and black square-bodied stepper motors with protruding metal shafts and four multi-coloured wires extending from each.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver and black square motor with a metal shaft and four colored wires, shown with four small mounting screws beside it.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver metal shaft, a square black body with four colored wires, and four small mounting screws placed to the side.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - shown as a central component connected by arrows to a CNC machine, a 3D printer, and a robotic arm.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - close-up view of the silver metal motor body, shaft, and four colored wires, partially wrapped in gold protective packaging.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver metal shaft, a black rectangular body, and four colored wires, with dimensions 5mm and 50mm indicated.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - a silver square-bodied motor with a metal shaft and four colored wires, shown wrapped in clear plastic packaging.

NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire

Sale price Rs 1,010
SKU: B744,TMD100,Th20,KRT179
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - two silver and black stepper motors shown side-by-side, one displaying its metal shaft and the other its four colored wires.
+
NEMA 17 Single Shaft 1.8 Degree Compact Powerful Stepper Motor - the silver metal body, rotating shaft, and multi-coloured wires.
+
10A Bridge Rectifier - a group of black, rectangular electronic components with four metal pins each, arranged in a scattered pile.
+
1 Meter NEMA 17 Stepper Motor Wire Cable Reprap Stepping Driver Wiring Dupont 4pin 6pin Wire - two white 4-pin connectors with red, black, blue, and green wires attached.
1 Meter NEMA 17 Stepper Motor Wire Cable Reprap Stepping Driver Wiring Dupont 4pin 6pin Wire - two white 4-pin connectors with red, black, blue, and green wires attached.
This item: NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire -
Sale price Rs 1,010
NEMA 17 Single Shaft 1.8 Degree Compact Powerful Stepper Motor - the silver metal body, rotating shaft, and multi-coloured wires.
NEMA 17 Single Shaft 1.8 Degree Compact Powerful Stepper Motor -
Regular price Rs 410 Sale price Rs 308
10A Bridge Rectifier - a group of black, rectangular electronic components with four metal pins each, arranged in a scattered pile.
10A Bridge Rectifier -
Sale price Rs 60
1 Meter NEMA 17 Stepper Motor Wire Cable Reprap Stepping Driver Wiring Dupont 4pin 6pin Wire - two white 4-pin connectors with red, black, blue, and green wires attached.
1 Meter NEMA 17 Stepper Motor Wire Cable Reprap Stepping Driver Wiring Dupont 4pin 6pin Wire -
Sale price Rs 210
Price for all:
Regular total price Rs 1,690 Sale total price Rs 1,588

Pickup available at Digilog Electronics

Usually ready in 2 hours

NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - two silver and black stepper motors shown side-by-side, one displaying its metal shaft and the other its four colored wires.

NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire - two silver and black stepper motors shown side-by-side, one displaying its metal shaft and the other its four colored wires.
NEMA 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d Printer Robotics 4 Wire
Sale priceRs 1,010

This NEMA 17 Stepper Motor is bipolar, For 3D Printer Robotics 1.8° step angle (200 steps/revolution). Each phase draws 1.7 A at 4 V, allowing for a holding torque of 3.2 kg-cm (44 oz-in).  When used with a unipolar stepper motor driver. We recommend using it as with  DRV8825 or A4988.
This motor Satisfies all your robotic needs with a selection of high quality & diverse stepper motors DRV8825 or A4988. These simple but very powerful motors deliver smooth motion and nice holding torque.
Our 5x8 coupler can be used to mount objects on the stepper motor’s 5 mm-diameter output shaft, and our NEMA 17 aluminum bracket offers a variety of options for mounting this stepper motor in your project. A similar NEMA17 stepper motor is available with the different specification that enables you a wide range of stepper motors from hallroad.orgNema 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d

Nema 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d

Specifications:

  • Size: 42.3 mm square × 50 mm, not including the shaft (NEMA 17)
  • Weight: 350 g (13 oz)
  • Shaft diameter: 5 mm Round
  • Steps per revolution: 200
  • Current rating: 1.7 A per coil
  • Voltage rating: 4 V
  • Resistance: 1.6Ω per coil
  • Holding torque: 3.2 kg-cm (44 oz-in)
  • Lead length: 4cm
  • Output shaft supported by two ball bearings (internally).

The datasheet is not available for the exact part but here is a similar one which is 95% compatible with this motor. datasheet.

Dimensions

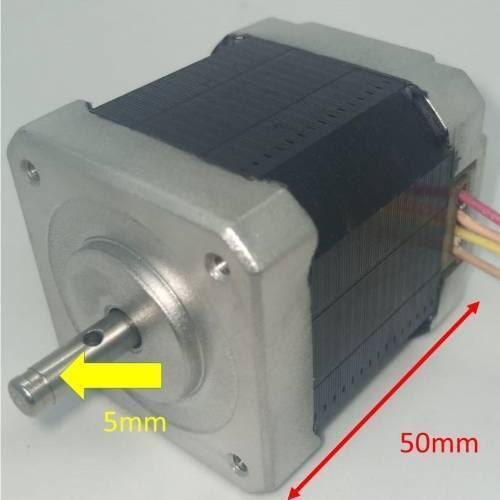

The following diagram shows the stepper motor dimensions in mm. The dimension labeled “length” is 50 mm. The output shaft has a 5 mm diameter.

Nema 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d





Nema 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d

The inside of a bipolar stepper motor (SOYO NEMA 14-size).



Stepper Motor Applications

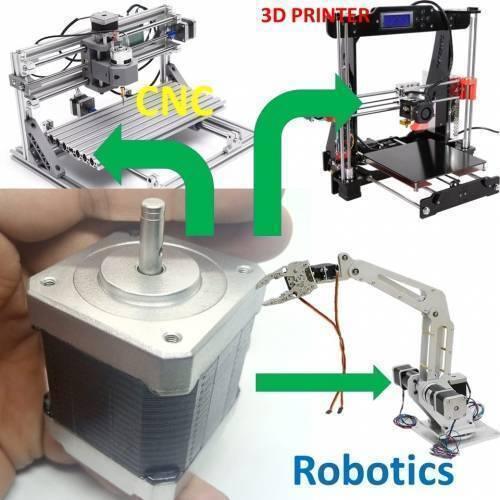

Stepper motors are generally used in a variety of applications where precise position control is desirable and the cost or complexity of a feedback control system is unwarranted. Here are a few applications where stepper motors are often found:

  • Printers
  • CNC machines
  • 3D printer/prototyping machines (e.g. RepRap)
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard drives





Nema 17 Stepper Motor: Bipolar 1.8 Degree, 1.6 Ohm For 3d
